Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

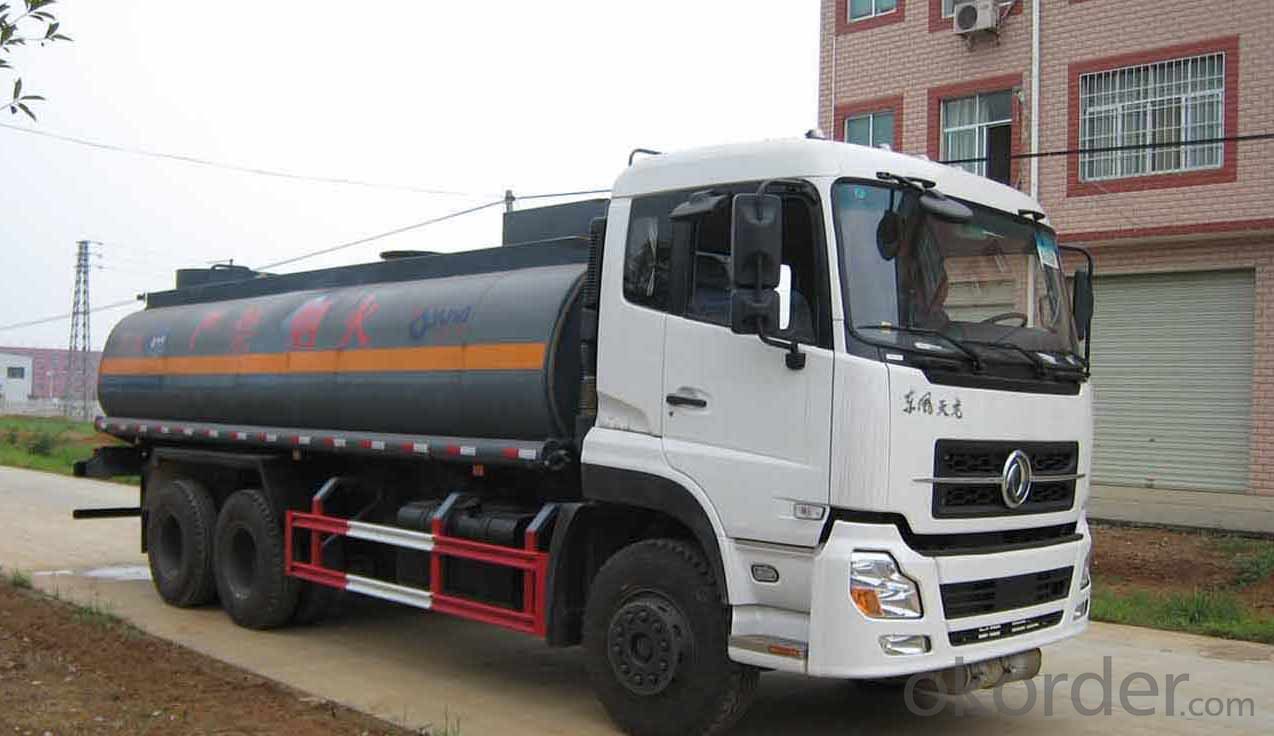

Fuel Tank Truck 15 Cbm 4X2 Fuel Tank of Truck (CLW1160)
Model NO.:CLW1160
Transmission Type:Manual
Power:Diesel
Load Capacity:1-10t
Emission Standard:Euro 3
Tank Volume:10001-15000L
Drive Wheel:4×2
Seats:≤5
Horsepower:150-250hp
Engine Capacity:6-8L
Storage:Oil
Tire Type:Inner Tube
Tire Certification:ECE, GCC, ISO, DOT, Asme ASTM
Tire Design:Radial
Condition:New
Material:Carton Steel Q235
Exhaust/Power(Kw):190HP
Type:Fuel Tank Fuel Tank Truck Fuel Tank Trailer
Engine Model:Dongfneg
Wheel:6wheels
Capacity:15000L
Driving Model:4X2
Chassis Model:EQ1160
Warranty:One Year for Three Parts (Engine, Gearbox, Axle)
Package:Bulk, RO-RO, Container, Naked for Fuel Tank Truck
Export Markets:Global
Trademark:CLW
Packing:RO-RO Bulk Naked Container
Standard:ECE ISO GCC CCC ASME ASTM
Origin:Hubei China
HS Code:8701909000
Production Capacity:100000PCS/Year
1.Description:DONGFENG 15 CBM 4X2 fuel tank of truck
2.Drive Model:4X2
3.Chassis:EQ1160
4.Dimensions(L x W x H)mm:9000*2490*3100
5.Wheel base (mm):4950
6.Overhang (front/rear) (mm):1250/2800
7.Wheel track (front/rear) (mm):1940/1800
8.Approach/Departure angle(°):28/12
9.Curb Weight:6125kg
10:GVW.:15990kg
11.Max. driving speed(km/h):75
| Description | DONGFENG 15 CBM 4X2 Fuel tank Truck | ||
| Drive Model | 4X2 | ||
| Chassis | EQ1160 | ||
| Number of axles | 2 | ||
| Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | 9000×2490×3100 | |
| Wheel base (mm) | 4950 | ||
| Overhang (front/rear) (mm) | 1250/2800 | ||
| Wheel track (front/rear) (mm) | 1940/1860 | ||
| Approach/Departure angle(°) | 28/12 | ||
| Weight in KGS | Curb Weight | 6125 | |
| GVW. | 15990 | ||
| Max. driving speed(km/h) | 75 | ||
| Engine | Model | ISB190 40 | |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
| Horse Power(HP) | 190HP | ||
| engine capacity(ml) | 5900 | ||
| Emission standard | Euro IV | ||
| Gearbox | 6 forwards & 1 reverse | ||
| Clutch | Reinforced diaphragm clutch | ||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Fuel tank (L) | 180 | ||
| Tire | 10.00R20 tire , 6 + 1(spare) | ||
| Brakes | dual circuit compressed air brake | ||
| Tank | |||
| Material | Q235A Carbon steel | ||
| Medium | Oil | ||
| Loading Capacity (m³) | 14.5 | ||
| Overall dimensions(mm) | 6300×2350×1450 | ||
| The back of the protective | section size (mm) | 100×50×5 | |
| ground height (mm) | 500 | ||
| Thickness(mm) | 6 | ||
| ABS model | 3631010-C2000 | ||
| optional Equipment | Tank can be separated to several unattached small tanks to fill different fuels Tank material: carbon steel,stainless steel,FRP etc. Tank shape: Roundness , quadrate , oval Oil pump: self-priming pump,gear pump Oil meter:single,double,Fiscal processor | ||
| Standard Equipment | Equipped with valves and pipes,a set of Fuel Dispenser Equipped with a ladder on tank Install with the motion of the satellite positioning function recorder | ||
