Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

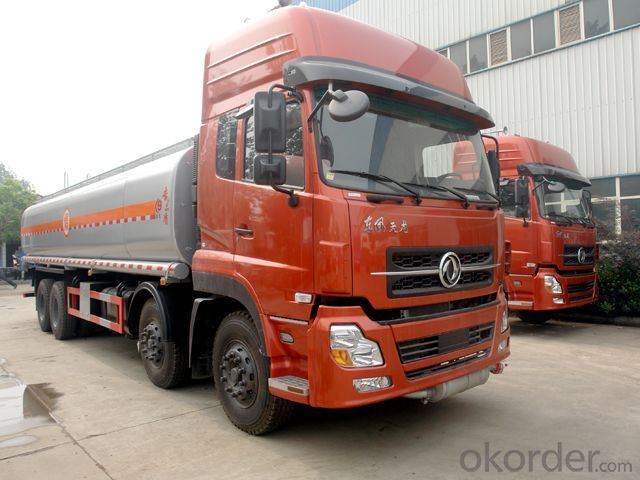

Fuel Tank Truck 10 Cbm Heavy Duty Truck
Model NO.:SGZ5110
Transmission Type:Manual
Power:Diesel
Load Capacity:10t
Emission Standard:Euro 3
Tank Volume:10001-15000L
Drive Wheel:2WD
Seats:≤5
Horsepower:251-350hp
Engine Capacity:4-6L
Storage:Oil
Tire Type:Solid Tire
Tire Certification:ISO
Tire Design:Tubeless
Condition:New
Truck Type:Tanker Truck
Type:Tank Truck
Export Markets:Global
Trademark:Dongfeng
Packing:Nude
Standard:4*2
Origin:China
Production Capacity:200units/Month
Vehicle Main DimensionsOverall dimensions (L x W x H)mm8000× 2490× 3200
Wheel base (mm)4500/4700
Wheel track (front/rear) (mm)1900/1800
Weight in KGSTare Weight6200
Payload8000
Front axles loading capacity1x5000
Rear axles loading capacity1x9000
Max. Driving speed(km/h)90
Engine BrandCummins
ModelEQB160
Type4-stroke direct injection, 6-cylinder in-line, turbo-charging and inter-cooling
Horse Power(HP)160 HP
Emission standardEuro II
Gearbox6 Forwards gear & 1 reverse gear
Steering power steering
Tire 9.00-20, 9.00R20 meridian tyres optional
Tank capacity10, 000 liters, 4 mm tank and wave-proof board, 5mm end plate
Pump With one pump, the fuel can be pumped in, also pumped out.
Production cycle20-25 days
Item | Description |
product type | XSJ5080GYY |
outside dimension (L×W×H) (mm) | 6200×1900×2550 |
can body dimension (Length×long axis×short axis) (mm) | 1680×1110×3200 |
chassis model | EQ1080SJ19DC |
chassis producer | Dongfeng Automobile Co., LTD |
wheel base (mm) | 3300 |
engine model | YC4F90-30 produced by Yuchai Group Co., LTD |
engine working mode | inline-4, pressurization, inter-cooling, electronic control, diesel engine |
fuel type | diesel |
rated power | 66Kw/(1300r/min) |
max. torque | 1270N.m /(1200-1500r/min) |
approach angle/departure angle (°) | 27/23 |
automobile displacement (L) | 2.659 |
max. speed | 95 |
gear size/count | 6.50-16/6 |
total weight (kg) | 8300 |
curb weight (kg) | 3500 |
rated loading weight (kg) | 4605 |
can announcement volume (gasoline) (m³) | 4.38 |
finished can volume (m³) | 4.38 |
transport material | crude oil, gasoline, diesel, water |
