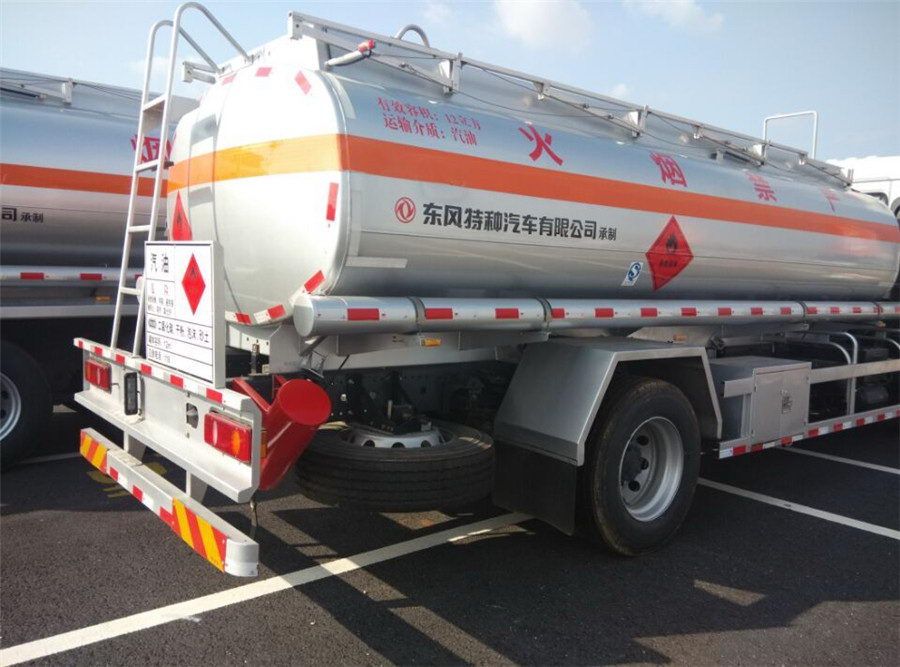

Fuel Tank 6X4 20cbm Euro3 Special Truck

Loading Port:Shanghai

Payment Terms:TT OR LC

Min Order Qty:1 PCS

Supply Capability:1500 PCS/month

Product Description:

Fuel Tank 6X4 20cbm Euro3   Special Truck

Product Details

Basic Info.

Model NO.:ND5257GJYZ



Transmission Type:Manual

Power:Diesel



Load Capacity:21-30t

Emission Standard:Euro 3



Tank Volume:15001-30000L

Drive Wheel:6×4



Seats:6-9

Horsepower:251-350hp



Engine Capacity:>8L

Storage:Oil



Tire Type:Solid Tire

Tire Certification:ECE, GCC, ISO, DOT



Tire Design:Radial

Condition:New



Engine:Wp10.290/Wp10.336 Euroiii

Rated Power:290HP/336HP



Cabin:Beiben Ng80A

Tank Capacity:20cbm/20000L



Technology:Mercedes Benz

Export Markets:North America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:BEIBEN/NORTH BENZ



Packing:Nude Packing

Standard:ISO9001



Origin:China Mainland

HS Code:870423009



Production Capacity:10, 000units/Year

Product Description



Engine:               Weichai Engine WP10.290/WP10.336
Rated Power:    290HP/213kW; 336HP/247kw
Drive Type:        6x4 Left Hand Driving
Tank Volume:   18.9CBM
NG80 long and flat roof cabin, air conditioner
Fuel tank structure:
The fuel-tank of a tank truck is usually made of a high quality steel plate. The tank can either be of a single-room structure or can be divided into several compartments to store different kinds of fuel.



Traction type

6x4

Driving type

Left Hand Driving

Overall Dimension(LxWxH)

9465*2500*3305mm

Volume(m3)

18.90

Wheel base(mm)

4450+1450

Curb weight(kg)

12270

Front overhang/rear overhang (mm)

1480/2085

Front track/rear track(mm)

1995;1800/1800

Approach angle/Departure angle

16/17

Engine Steyr technology,
 made in China

WP10.290/WP10.336

Diesel, 4-stoke Direct injection,6-cylinder in
line,radiator,turbo-charging,water-cooling,

Displacement(L)

9.726

Bore X stroke (mm)

126mm/155mm

Max power(kw/rpm)

290HP/213kW; 336HP/247kw

Max torque(Nm/rpm)

1160NM@1200~1600

Min rate of consuming fuel(g/(kw.h))

196g/kW.h

Emission

III

Max speed(km/h)

90

Fuel tanker(L)

400L Al fuel tank

Clutch

Model

D430 diaphragm type

Gearbox

Model

9JS135

Shift mode

9 forward speeds;
1 reverse speeds

Steering system

Model

TAS85

Frame

300mmx90mmx8+6+8mm

Front axle (Mercedes Benz  Technology)

7.5T Benz technology front non-driving steering axle

Middle and Rear axle
(Mercedes Benz Technology)

13T double reduction driving axle, inter-wheel differential lock

Ratio:5.263

Tyre

12.00R20 Radial Tire

Number of tyre

10+1 spare

Suspension

Leaf spring type

Front/rear: 10/13

Color

White,Red

Electrical

Battery

12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cabin

Beiben NG80A long cabin with single sleeper and air-conditioner
