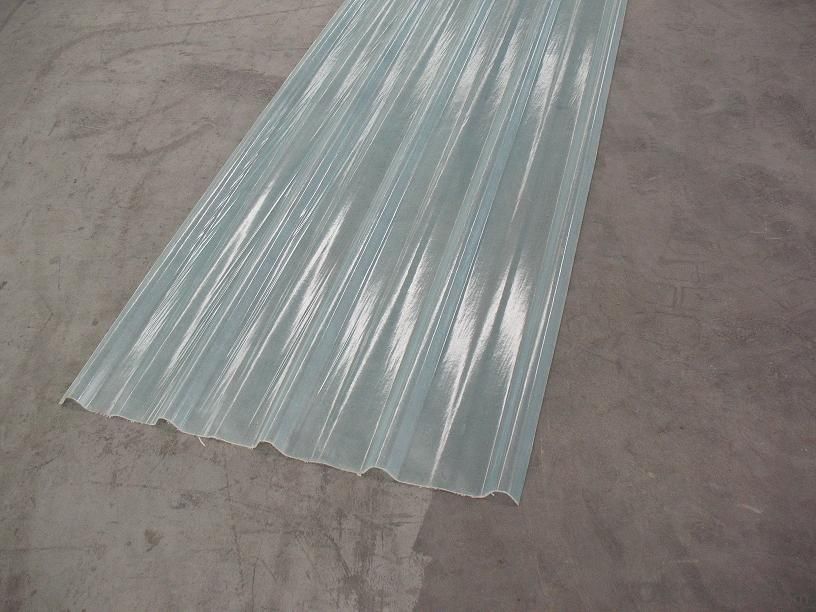

FRP Corrugated Lighting Sheet

Product Description:

Specifications of FRP Corrugated Lighting Sheet

FRP Sheet made by serial machinery of FRP sheet have the advantages of smooth surface, even thickness, high impact strength, good weather resistance as well as high productivity. It is the best materials for the surface panels of top grade refrigeration vehicles for its excellent properties of heat and moisture insulaiton.

Thickness:0.8mm、1.0mm、1.2mm、1.5mm、2.0mm、2.5mm、3.0mm；

Width:1000mm、1200mm；

Color:Clear/Lake Blue/Sky Blue/Light Green/ Opal；

Length:30m/rolling

Applications of FRP Corrugated Lighting Sheet

They are applied to steel structure workshops, warehouses, weather sheds, car parks, weather corridors, lighting sheds, sun sheds,

greenhouses, etc. They are the ideal materials for the choices of enterprises and institutions.

The necessary characters of high quality FRP Corrugated Lighting Sheet:

1. small air bibbles

2. no bubbles

3. anti-aging resin

4. high property upper film(or gelatum)

5. high quality non-alkali fiber-glass

6. consistent high light transmission

7. high chemistry corrosion resistance

8. high anti-ultraviolet property

9. even thickness

Package& Delivery of FRP Corrugated Lighting Sheet

Wooden pallet,according to custom requires.

Technological Parameters of FRP Corrugated Lighting Sheet

Density 1.5 g/cm3 Tensile strength 100Mpa

Fiber content >25% Bending strength 160Mpa

Curing degree >82% Impact ductility 135 KJ/㎡

Gel Coat Thickness 20-150μm Thermal conductivity 0.158 W/m.k

Weathering  film thickness 20-30μm Thermal expansivity 2.2X10-5mm/mm/℃

Light transmissivity 60-85% Water absorption 0.32%/24hr

Suitable temperature -40℃-120℃ UV Rate 99.9%

Thickness:0.8mm、1.0mm、1.2mm、1.5mm、2.0mm、2.5mm;

Color:clear, sky blue,lake blue & opal;

Length:cut as per customers' requirements （on the condition that it is suitable  for transportation）

Pofiles:over 10 profiles for you choice at present：For detailed profiles please visit：820-205, 840-210, 760-380, 950-237,930-79, 812-203, 406-203 and so on
