Loading Port:Shenzhen
Payment Terms:L/C,T/T
Min Order Qty:3000 Pcs pc
Supply Capability:100000 Pcs Per Month pc/month

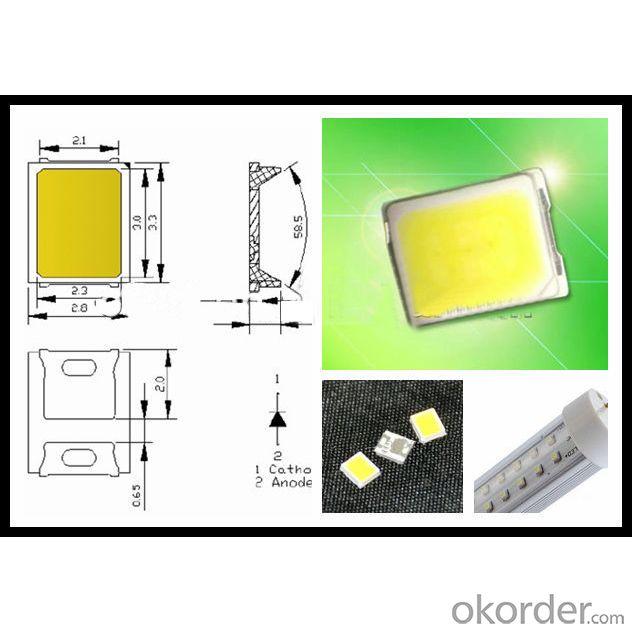

0.1W 0.2W 23-26LM 2835 SMD LED product specification:
| Model: factory price white 0.2W 19-23LM smd 2835 cree chip led | ||||
| Voltage: DC: 2.8~3.8V | ||||
| Current: 30mA 60mA | ||||
| LED Power: 0.1W 0.2W | ||||
| CCT: 2600-8000K | ||||
| Ra: 60-80 | ||||
| Brightness: 9-10lm 10-11lm 19-21lm 21-23lm | ||||

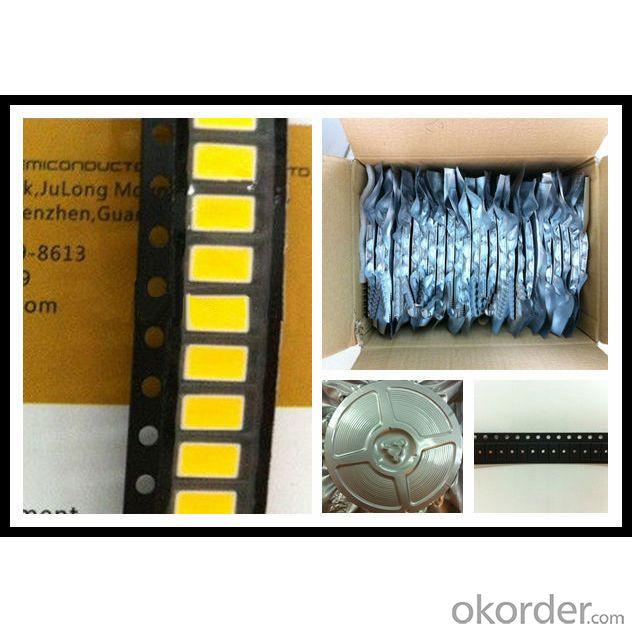

| Packing: 3000pcs/reel, 120K/CTN |
Absolute Maximum Rating (Ta=25°C) e.g.
Item | Symbol | Value | Unit |
Peak Forward Current | IFp | 60/150 | mA |
Reverse Voltage | VR | 5.0 | V |
Continuous Forward Current | IF | 30/60 | mA |
Operating Temperature | Topr | -40 to 85 | °C |
Storage Temperature | Tstg | -40 to 105 | °C |
Lead Soldering Temperature | Tsol | 260°C For 3 Seconds | |
Characteristics ( Ta=25°C) e.g.
Parameter | Condition | Symbol | Min | Typ | Max | Units |
Power Dissipation | IF=30mA IF=60mA | Pd | - | 0.1/0.2
| - | w |
Correlated Color Temperature |
IF=30mA
IF=60mA
| CCT | 2500 | / | 8000 | K |
Forward Voltage | IF=30mA/60mA | VF | 2.8 | 3.2 | 3.8 | v |
Reverse Current | VR=5V | IR | / | / | 10 | μA |
Chromaticity Coordinates | IF=30mA/60mA | X | / | 0.31 | / | |
Y | / | 0.33 | / | |||
Luminous Flux | IF=30mA/60mA | φv | 7/13 | 17/25 | LM | |
Color Rending Index | IF=30mA/60mA | CRI | 70 | / | / | Ra |
Full Viewing Angle |
IF=30mA/60mA
| 2θ1/2 | / | 120 | / | deg |
| Advantages: | |||||||
| 1. Own packaging technology, with good quality and high brightness. | |||||||
| 2. led with Low lighting attenuation,Conversion factor can reach 90% | |||||||
| 3. Special design good for heating output. | |||||||
| 4. Long lifespan of up to 30,000 hours | |||||||
| 5. Professional manufacturuer with seven years experience in leds | |||||||
| 6. Fast delivery, and competitive price | |||||||
| 7. Experienced workers, automatic making machine and testing machines |
| Applications: | ||||
| 1. Indoor and outdoor commercial lights | ||||
| 2. Backlighting and SMD type indicators | ||||
| 3. LED moudle | ||||
| 4. Decoration lights | ||||
| 5. Auto lamps | ||||
| 6. Led flexible/rigid strips | ||||
| 7. LED tubes. | ||||
| 8. Led bulbs |
Our Service
1. 100% tested before shipping
2. Your inquiry related to our products or prices will be replied in 24 hours;
3. Both OEM and ODM are welcomed;
4. Distributor ship is offered for your unique design and some our current models;
5. Protection of your sales area, ideas of design and all your private information;
6. We are pleasure to provide you Led information, lighting solution and suggestions, technical support;
Delivery:
Shipping Service | Estimated Delivery Time |
DHL | 2-8 business days |
FedEx | 3-8 business days |
TNT | 2-10 business days |
UPS | 1-7 business days |
EMS | 6-14 business days |
ePacket | 7-12 business days |
China Post Air Mail | 7-15 business days |
China Post SAL | 14-30 business days |
By sea | 30-40 business days |
1. 3-10 business days for Sample Orders; 7-40 business days for Bulk Orders.
2. "Business days" means Monday-Friday, excluding holidays.
3. DHL and UPS cannot ship to military or P.O. boxes address.
4. The Shipping Service above is for reference only, for any other questions, please feel free to contact us.
