Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1000 watt
Supply Capability:10000 watt/month
Product Description
Material
1.Non-glass design
2.Fully weatherptoog &lightweight design
3.Unbreakable protective plastic film coating
4.2 year materials limted warranty
Applications
1.Trickle charger for 12v batteries
2.Maintenance charging for boats at moorings
3.Maintenance charging for emergency vehicles
4.Sole source charging for auxiliary recreational equipment, RV, jet skis, small appliances & other electronics

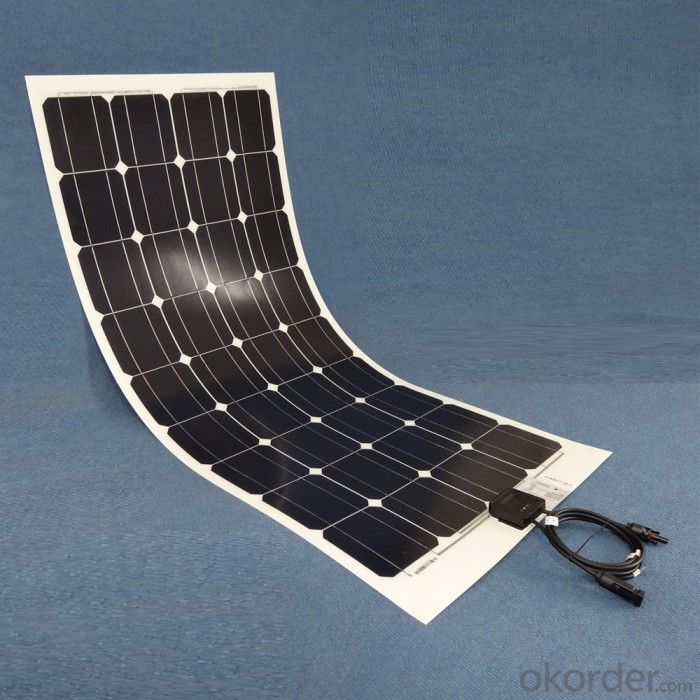

The flexible photovoltaic panels of sun gold are made of monocrystalline cells ,with an efficiency higher
than 19.5% incorporated in polymers with high strength these materials make the panels flexible, walkable with a weight of about 1/6compared to the traditicularly glass panels .their specific technologies makes them particularly resistant to the marine environment and therefore suitable for application in the marine industry
Electrical Character
| Electrical Characteristics | |
| Cells size (mm): | 125*125 |
| Cells per module: | 4*9pcs |
| Module size (mm): | 1325*560*3mm |
| Power tolerance: | +/-3% |
| Nominal peak power(WP): | 120w |
| Nominal voltage(V): | 17.6 |
| Nominal current (A): | 6.82 |
| NOCT: | 45+/-2degree |
| Voltage temperature coefficient: | -0.33%/degree |
| Current temperature coefficient: | +0.05%/degree |
| Power temperature coefficient: | -0.23%/degree |
| Open circuit voltage (Voc): | 21.6 |
| Short cirsuit current(Isc): | 7.36 |
| Conversion efficiency: | 20.41% |
| Product name : | flexible solar panel |
| Max system voltage: | 1000V DC |
| Surface Maximum Load Capacity | 60m/s(200kg/sq. m) |
