Loading Port:China main port
Payment Terms:TT or LC
Min Order Qty:50 pc
Supply Capability:10000 pc/month
1.Structure of Solar Module Description
CNBM Solar's photovoltaic module is designed for designed for large electrical power requirement. It is the optimal choice for both on-grid and off-grid power systems. CNBM Solar offers high performance of power per square foot of solar array.
2.Main Features of the Solar Module
Solar Cell: High efficency crystalline solar cell. Even if under the weak light, the solar module can produce maximum power output.
Tempered glass: Anti-reflecting coating and high transmission rate glass increase the power output and mechanical strength of solar module.
EVA and TPT: Using high quality EVA and TPT to prevent destroying and water.
Strong aluminum frames to strengthen the load hold and to stand against high wind.
Junction box: Multi function junction box with water proof.
Long lifetime: ≥25 years; Less power decrease.
Good performance of preventing from atrocious weather such as wind and hails.
Resisting moisture and etching effectively, not effected by geology.
The certificate issued by international authority: UL, TUV, IEC, VDE, CE.
| Place of Origin: | Jiangsu China (Mainland) | Brand Name: | CNBM | Model Number: | KPV200W-250W |
| Material: | Monocrystalline Silicon | Size: | 156MM | Max. Power: | 250W |
| Weight: | 19.5KGS | Vmp: | 30.5V | Wp: | 200-250W |
| MSV: | 1000V DC | product: | flexible solar panel |
| Packaging Detail: | Cell packing 22 a box |
| Delivery Detail: | 10 day |
Manufacturer
1. 3.2mm high transmissive Low iron tempered glass.EVA Iaminate with Glass yield long life modules while enhancing cell perfomance
2.Power range 200Wp-250Wp.
3.Bypass diodes to avoid hot-spot effect.

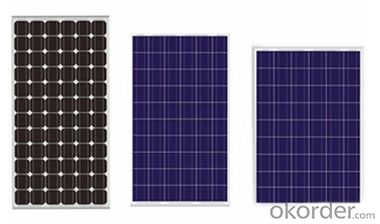

3.Solar Module Images
Quality and Safety
1.Rigorous quality control meeting the highest international standards
2.High-transmissivity low-iron tempered glass, strong aluminium frame
3.Using UV-resistant silicon
4.ISO 9001:2008 and ISO 14001:2004
5.IEC61215, IEC61730, Safety Class in conformity to CE
Features
1.High conversion efficiencies resulting in superior power output performance.
2.Outstanding power output even in low light or high temperature conditions
3.Optimized design for ease of soldering and lamination
4.Long-term stability,reliability and performance
Warranties
1.25 years limited product warranty
2.15 years at 90% of the minimal rated power output
3.25 years at 80% of the minimal rated power output
Temperature Coefficient
NOTC(Nominal Operating Cell Temperature) 47 ± 2 ℃
Voltage temperature coefficient(Voc) -0.34% ℃
Current temperature coefficient(Isc) +0.09% ℃
Power temperature coefficient(Pmmp) -0.37% ℃
| Module Size(mm) | 1650×992×50MM | ||||
| Module Array(pcs) | 6×10PCS | ||||
| Size of Cells(mm) | 156× 156 | ||||
| Weight(kgs) | 19.5KGS | ||||
| Tolerance | ±3 % | ||||
| Operation Temp Scope( ℃ ) | -40/+85 ℃ | ||||
| Max. System Voltage | 1000V DC | ||||
| Model No. | Wp(W) | Vmp(V) | Imp(A) | Voc(V) | Isc(A) |
| kpv 200p-60 | 200 | 28.5 | 7.02 | 34.2 | 7.80 |
| kpv 205p-60 | 205 | 28.5 | 7.19 | 34.2 | 7.80 |
| kpv 210p-60 | 210 | 29 | 7.24 | 36.0 | 7.82 |
| kpv 215p-60 | 215 | 29 | 7.41 | 36.0 | 8.01 |
| kpv220p-60 | 220 | 29 | 7.59 | 36.0 | 8.19 |
| kpv225p-60 | 225 | 29.5 | 7.63 | 36.6 | 8.24 |
| kpv230p-60 | 230 | 29.5 | 7.80 | 36.6 | 8.42 |
| kpv235p-60 | 235 | 30.0 | 7.83 | 37.2 | 8.46 |
| kpv240p-60 | 240 | 30.0 | 8.00 | 37.2 | 8.65 |
| kpv245p-60 | 245 | 30.0 | 8.17 | 37.2 | 8.74 |
| kpv250p-60 | 250 | 30.5 | 8.20 | 37.8 | 8.85 |
solar panel Pic. and drawing:
5.FAQ of Solar Module
1. Q: Do you have your own factory?
A: Yes, we have. Our factory located in Jiangyin city, jiangsu province.
2. Q: How can I visit your factory?
A: Before you take off from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.
3. Q: Do you provide free sample?
A: Usually we do not offer free sample
4. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do that.
