Flexible Bottle Line For Pet Bottles With Good Quality

Product Description:

Flexible Bottle Line For Pet Bottles

1.Structure of Description

This machine is used to fill pure water, mineral water and other non-carbonated beverage.

The automatic plastic bottle liquid filling machine is equipped with suspension type air conveyor and frequency control of motor speed.

This machine is comprised of rinsing, filling and capping system. Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely. Filling: gravity filling with holding bottle neck; the special backflow type of the filling valve can avoid leakage after filling and also control liquid level accurately. Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.

This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.

2. Main Features

Steady and high quality

Fast shipment

Good experience for export work

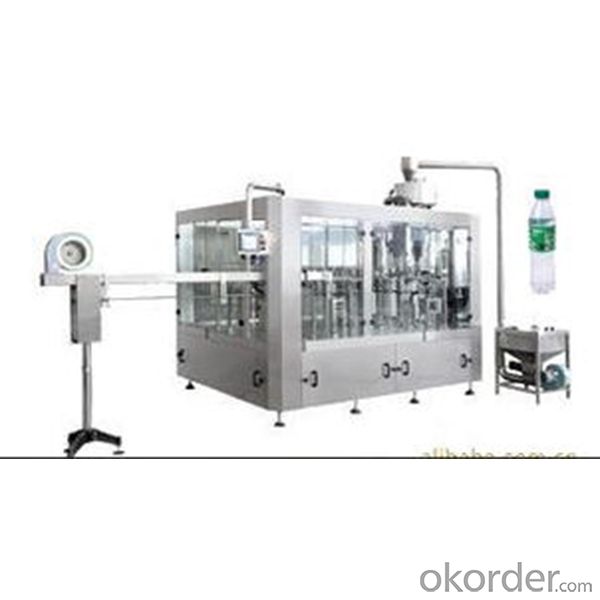

3. Images

4. Specifications

• Type:Filling Machine

• Application:Beverage

• Packaging Type:Bottles

• Packaging Material:Plastic

• Rated Output（500ml bottle）：1000 bottle/hour

• Compressed Air Consumption:0.25Nm3/min

• Water Consumption:2.5m3/h

• Filling Valve Head Count:24

• Filling Valve Flow Rate:140～160ml/s

• Power:5.5KW

• Model Number:CGF24-24-8

• Dimension(L*W*H):2900*2200*2300mm

• Weight:4.5 T
