Loading Port:China Main Port
Payment Terms:TT OR LC
Min Order Qty:-
Supply Capability:-
Place of Origin: Henan, China (Mainland)
Insulation Material: PVCModel Number: BVR
Type: Low Voltage
Application: lighting in residential
Conductor Material: Copper
Jacket: PVC
Type of Conductor: Oxygen Free Copper
Insulation: PVC insulation
Application: Residential Lighting
| Packaging Details: | Rool or as your request |
|---|---|
| Delivery Detail: | 7-30 days or as customers' demand |

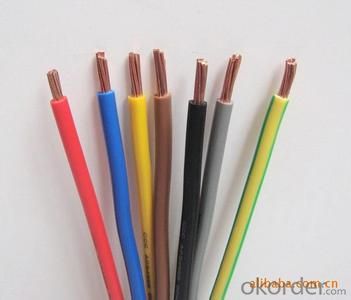

450/750V Flexible Building Wire Use for Residential Lighting
Specification
1).Rated Voltage: 450/750V
2).Rated temperature: 70 'C
3).Standard: GB, IEC. etc.
4).Testing Voltage: 10KV
5).Min. insulation resistance at 70°C(Mohm.km): 0.0048
6).ISO9001:2008, CCC certification
7).20 years manufacturing experience
8).Specialized in electric/electrical; construction; industrial appliance
9).Customer wire cable
10).Stock available, Free sample
11).Small profits, quick returns
12).High quality and competitive price
13).Convenient transportation (One hour drive to Shanghai) )and timely delivery
14).Application: Electrical Instruments, Lighting, Equipment, Household appliances, Railway, Computer, Industrial, Industrial Car, Telecommunication, Military, Mining, Power Station; Construction and Of AC, DC electrical installations
More technical data:
The information attached below is just for your reference. We can produce electric copper wire completely according to your requirement, please contact us with your specifications that you need
Name: BV(IEC01)
Nom. Section (mm²) | Core/Dia (mm) | Insulation thickness(mm) | Over diameter(mm) | |||
Nominal
| Thinnest point | Min. | Control
| Max.
| ||
1.5 | 1/1.38 | 0.7 | 0.53 | 2.8(2.6) | 2.9 | 3.2 |
1.5 | 7/0.52 | 0.7 | 0.53 | 2.9(2.7) | 3.1 | 3.3 |
2.5 | 1/1.78 | 0.8 | 0.62 | 3.4(3.2) | 3.5 | 3.9 |
4 | 1/2.25 | 0.8 | 0.62 | 3.9(3.6) | 4 | 4.4 |
6 | 1/2.76 | 0.8 | 0.62 | 4.4(4.1) | 4.5 | 5 |
10 | 7/1.35 | 1 | 0.8 | 6.0(5.6) | 6.5 | 6.7 |
16 | 7/1.70 | 1 | 0.8 | 7.1(6.4) | 7.5 | 7.8 |
25 | 7/2.14 | 1.2 | 0.98 | 8.8(8.1) | 9.2 | 9.7 |
35 | 7/2.52 | 1.2 | 0.98 | 10(9) | 10.5 | 10.9 |
50 | 19/1.78 | 1.4 | 1.16 | 11.7(10.6) | 12.3 | 12.8 |
70 | 19/2.14 | 1.4 | 1.16 | 13.5(12.1) | 14.1 | 14.6 |
95 | 19/2.52 | 1.6 | 1.34 | 15.8(14.1) | 16.2 | 17.1 |
