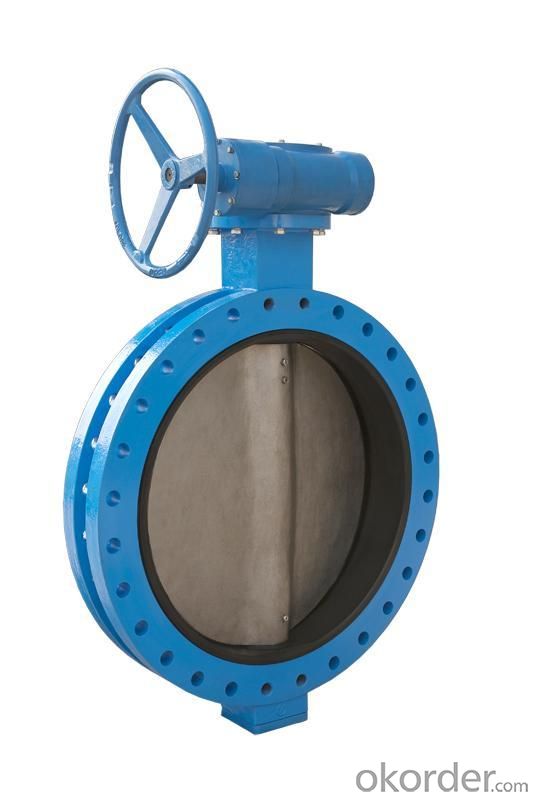

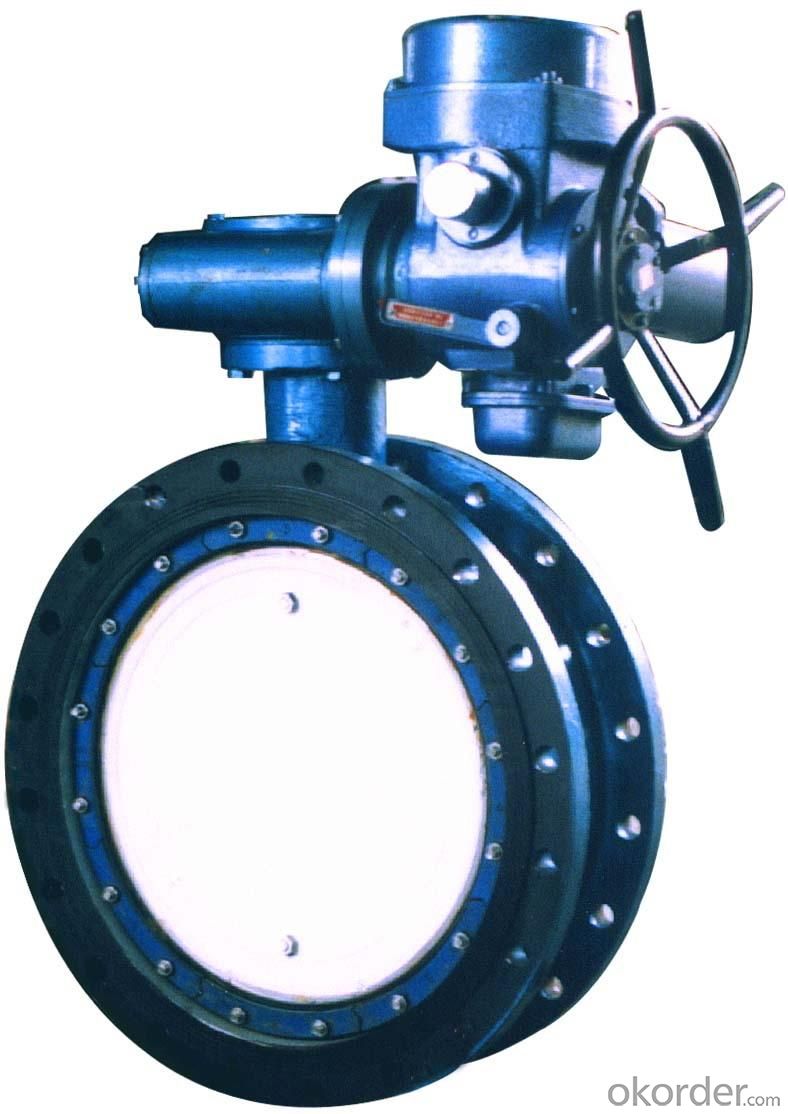

Quick Details of Flange Butterfly Valve
|
Standard or Nonstandard: |
Standard |
Structure: |
Butterfly |
Pressure: |
1.0-2.5Mpa |
|
Power: |
Manual |
Material: |
Casting |
Temperature of Media: |
Low Temperature |
|
Media: |
Water |
Port Size: |
DN40-DN800 |
Place of Origin: |
China |
|
End Flange: |
ANSI B16.1, EN 1092, AS 2129 |
Brand Name: |
Yue |
Color: |
Blue |
Packaging & Delivery of Flange Butterfly Valve
|
Packaging Detail: |
Bubble bag/ Poly Bag/ Wooden Case |
|
Delivery Detail: |
5-25 days |
Specifications Of Flange Butterfly Valve
1. ISO, ANSI, API, BS, DIN, JIS
2.. Zero Leakage
Usage/Applications of Flange Butterfly Valve
|
Body |
|
Disc |
|
Shaft |
Bushing |
Seat |
|
|
|
Material Name |
Code |
Material Name |
Code |
Material Name |
Material Name |
|
Code |
Using Temperature |
|
CI |
Z |
Electricplating DI |
B1 |
Stainless Steel Carbon Steel Monel K500 |
Lubricated bronze |
Natural rubber |
X1 |
-20~+85 |
|
DI |
Q |
AL-bronze |
B2 |
Hypalon |
X2 |
-18~+135 Short time -18~+149 | ||
|
AL-bronze |
T |
ZG1Cr18Ni9Ti SS304 |
B3 |
EPDM |
X3 |
-45~+135 Short time -50~+150 | ||
|
ZG1Cr18Ni9Ti SS304 |
P |
CF8M SS316 |
B5 |
Neoprene |
X4 |
-7~+93 Short time -7~+107 | ||
|
CF8M SS316 |
R |
|
|
NBR |
X5 |
-12~+82 Short time -12~+93 | ||
|
Carbon Steel |
C |
|
|
Abrasion resistant rubber |
X6 |
-10~+50 | ||
|
|
|
|
|
Viton |
X7 |
-20~+85 | ||
|
|
|
|
|
Heat resistant EPDM |
X9 |
-20~+85 | ||
|
|
|
|
|
PTFE |
F4 |
-20~+85 |
Main Performance Parameters of Flange Butterfly Valve
|
Nominal Pressure PN(MPa) |
Nominal Diameter DN(mm) |
Testing Pressure (MPa) |
Suitable Temperature °C |
Suitable Medium |
Actuation Ways | |
|
Shell |
Seal | |||||
|
1.0
|
DN40 ~ DN1000 |
1.5 |
1.1 |
-45~ 150 |
Fresh water, Sewage, Sea water, Air, Vapor, Food, Medicine, Oils, Acids, Alkalis, etc. |
Manual actuator, worm-gear actuator, aerodynamic actuator and electric actuator |
|
1.6 |
2.4 |
1.76 | ||||
