Loading Port:China Main Port
Payment Terms:TT or LC
Min Order Qty:1 pc
Supply Capability:1000 Piece/ year pc/month

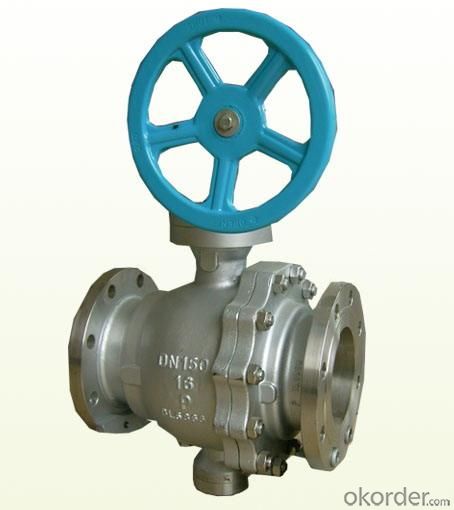

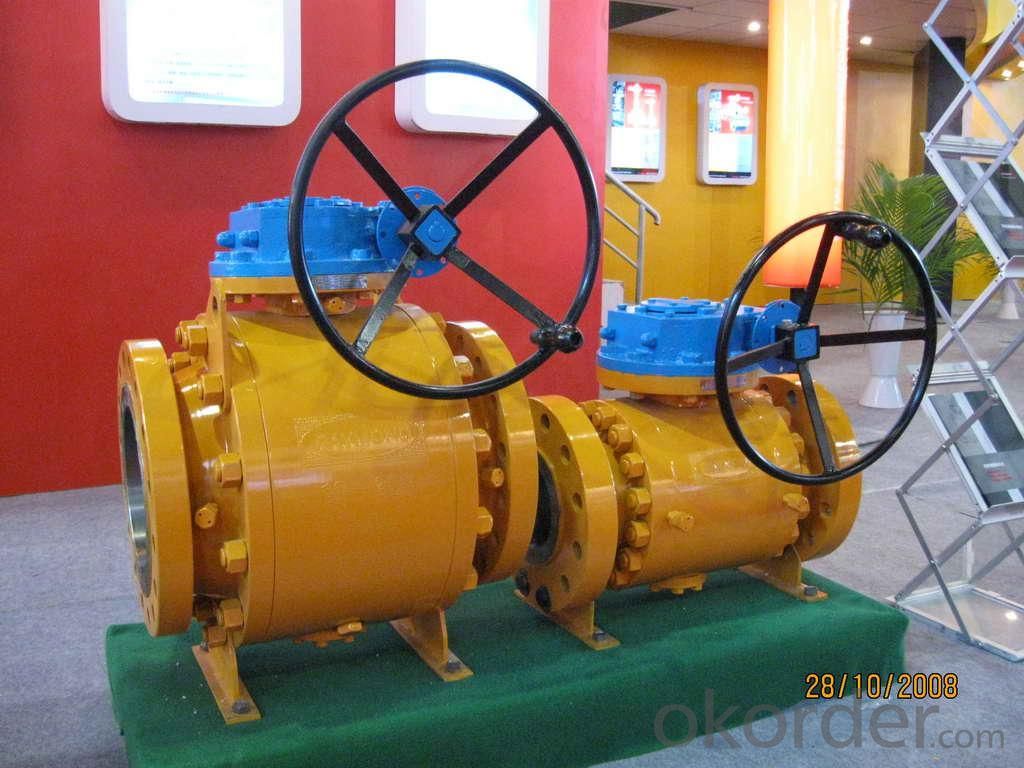

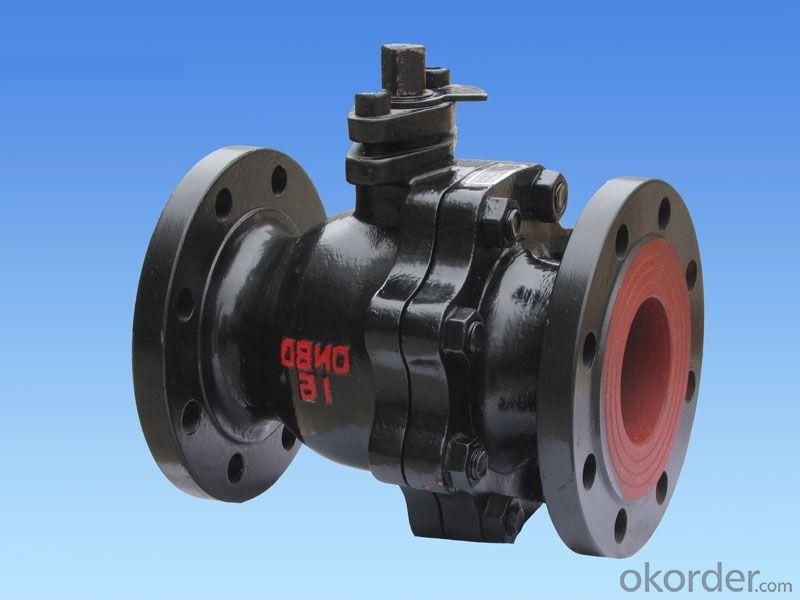

Quick Details of Flange Ball Valve
Standard or Nonstandard: | Standard | Structure: | Ball | Pressure: | High Pressure |
Power: | Pneumatic , Motorized ,Electric ,Gear box ,Gas Over Oil , | Material: | Carbon steel, Stainless steel, Duplex Stainless steel, Special Alloy. | Temperature of Media: | High Temperature |
Media: | Oil, Gas ,Water ,Acid | Size: | 2"- 48", DN 50-1200mm | Place of Origin: | China |
Model Number: | Q47 | Brand Name: | BGV | Certificate: | API 6D, API 607 ,CE ,ISO 9001 , ISO 14001, |
Packaging & Delivery of Flange Ball Valve
Packaging Detail: | Plywood Case , Wooden Case |
Delivery Detail: | 30 -120 days |
Specifications of Flange Ball Valve
Size: 2"- 48", DN 50-1200mm
Pressure: 150 -2500LB, PN 10-400
Material: Carbon steel, Duplex /Stainless Steel, Special Alloy.
Usage/Applications of Flange Ball Valve
Side Entry Design, Top Entry Design.
Bolted Body Or Fully Welded Body.
Full Bore Or Reduced Bore.
Flanged End Or Welding End.
Double Block and Bleed.
Locking Device.
Single Piston Effect, Double Piston Effect.
Automatic Internal Relief of Body Pressure.
Emergency Sealant Injection System.
Fire Safe Design. Antistatic Device.
Anti-Blowout Stem Design.
Body Vent Device.
Stem Extension for Underground Service.
Product Range of Flange Ball Valve
Size: NPS 2”~ 48” , DN 50-1200
Pressure Rating: Class 150 -2500 LB , PN 10~400
Design standard : API 6D , EN13942
Face To Face Dimension : API 6D , EN 558-1, EN 12982
Connecting Dimensions: ASME B16.5, ASME B16.47, ASME B 16.25, EN 1092-1, and EN 12627.
End Connection: Flange, BW.
Body Materials: Carbon steel, Stainless Steel, Duplex Stainless Steel, Special Alloy.
Medium: Natural Gas, Oil, Steam. Water.
