Loading Port:Tianjin
Payment Terms:TT OR LC
Min Order Qty:5000 g/m²
Supply Capability:5000000 g/m²/month

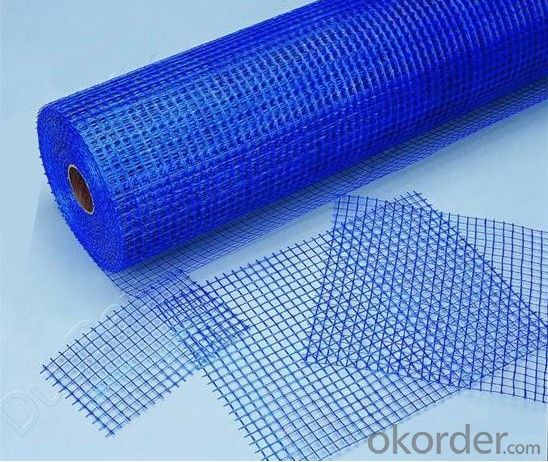

Fiberglass mesh, for mosic and marble, high quality
Fiberglass mesh
Application:
Wall reinforced material (such as fiberglass wall mesh, GRC wall panels, EPS insulation with the wall board, gypsum board, bitumen etc)
2. Reinforced cement products.
3. Used for Granite, mosaic, marble back mesh etc.
4. Waterproof membrane fabric, asphalt roofing.
Item Number | Mesh Size (mm) | Finished weight (g/m2) | Tensile StrengthX500px | Content of resin %(≥) | ||
| Warp | Weft | Warp | Weft | |||
| CNP10X10-60 | 10 | 10 | 60 | 500 | 650 | 17 |
| CNP4X5-75 | 4 | 5 | 75 | 600 | 650 | 18 |
| CNP5X5-80 | 5 | 5 | 80 | 700 | 850 | 18 |
| CNP5X5-90 | 5 | 5 | 90 | 700 | 1050 | 18 |
| CNP4X4-100 | 4 | 4 | 100 | 750 | 1000 | 18 |
| CNP10X10-100 | 10 | 10 | 100 | 1000 | 1250 | 20 |
| CNP4X5-120 | 4 | 5 | 120 | 1000 | 1300 | 18 |
| CNP5X5-125 | 5 | 5 | 125 | 1200 | 1300 | 18 |
| CNP10X10-125 | 10 | 10 | 125 | 1250 | 1450 | 20 |
| CNP5X5-135 | 5 | 5 | 135 | 1300 | 1400 | 18 |
| CNP4X4-135 | 4 | 4 | 135 | 1000 | 1300 | 18 |
| CNP4X5-140 | 4 | 5 | 140 | 1300 | 1350 | 18 |
| CNP10X10-145 | 10 | 10 | 145 | 1250 | 1700 | 20 |
| CNP5X5-145 | 5 | 5 | 145 | 1400 | 1500 | 18 |
| CNP4X5-150 | 4 | 5 | 150 | 1300 | 1300 | 18 |
| CNP5X5-160 | 5 | 5 | 160 | 1450 | 1600 | 18 |
| CNP4X4-160 | 4 | 4 | 160 | 1550 | 1650 | 18 |
| CNP4X5-165 | 4 | 5 | 165 | 1300 | 1300 | 18 |
| CNP4X4-170 | 4 | 4 | 170 | 1450 | 1700 | 18 |
| CNP4X5-200 | 4 | 5 | 200 | 1500 | 2200 | 18 |
