Loading Port:Qingdao
Payment Terms:TT or LC
Min Order Qty:5000 m²
Supply Capability:1000000 m²/month

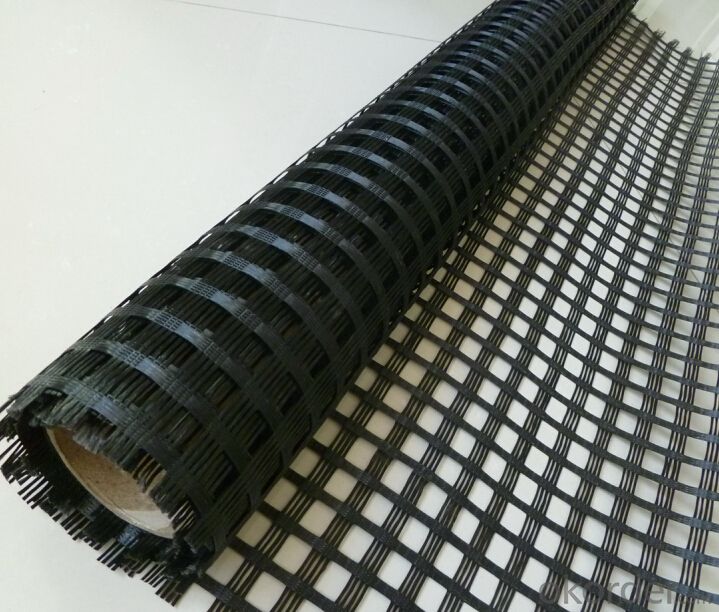

Fiberglass Geogrid
1.Description of Fiberglass Geogrid
CMAX fiberglass geogrid is made from glass fiber by weaving technology and coating treatment.
2.Specification of Fiberglass Geogrid
Tensile Strength: 25-25KN; 30-30KN; 50-50KN; 80-80KN; 100-100KN; 120-120KN;
Road Size: 3.95x100m; as customer required;
3.Technical Data Sheet of Fiberglass Geogrid
Item | CMAX30-30 | CMAX50-50 | CMAX80-80 | CMAX100-100 | CMAX120-120 | CMAX150-150 | |
Mesh Size(mm) | 25.4 x 25.4 or 12.5 x 12.5 or 50.8x 50.8 | ||||||
Breaking strength | Warp direction | 30 | 50 | 80 | 100 | 120 | 150 |
Across warp | 30 | 50 | 80 | 100 | 120 | 150 | |
Elongation at break % | Warp direction | 4 | |||||
Across warp | 4 | ||||||
Thermal tolerance (℃) | -100 ~280 | ||||||
Width(m) | 6 | ||||||
4.Property of Fiberglass Geogrid
1). High strength, low elongation;
2). Heat-resistant, high modulus.
3). Light weight, good flexibility.
4). Anti-erosion, long life time.
5.Application of Fiberglass Geogrid
1). Roadbed reinforcement, prevent road surface crack.
2). Road reconstruction
3). Soft soil reinforcement, improve road whole bearing capacity and prevent crack.

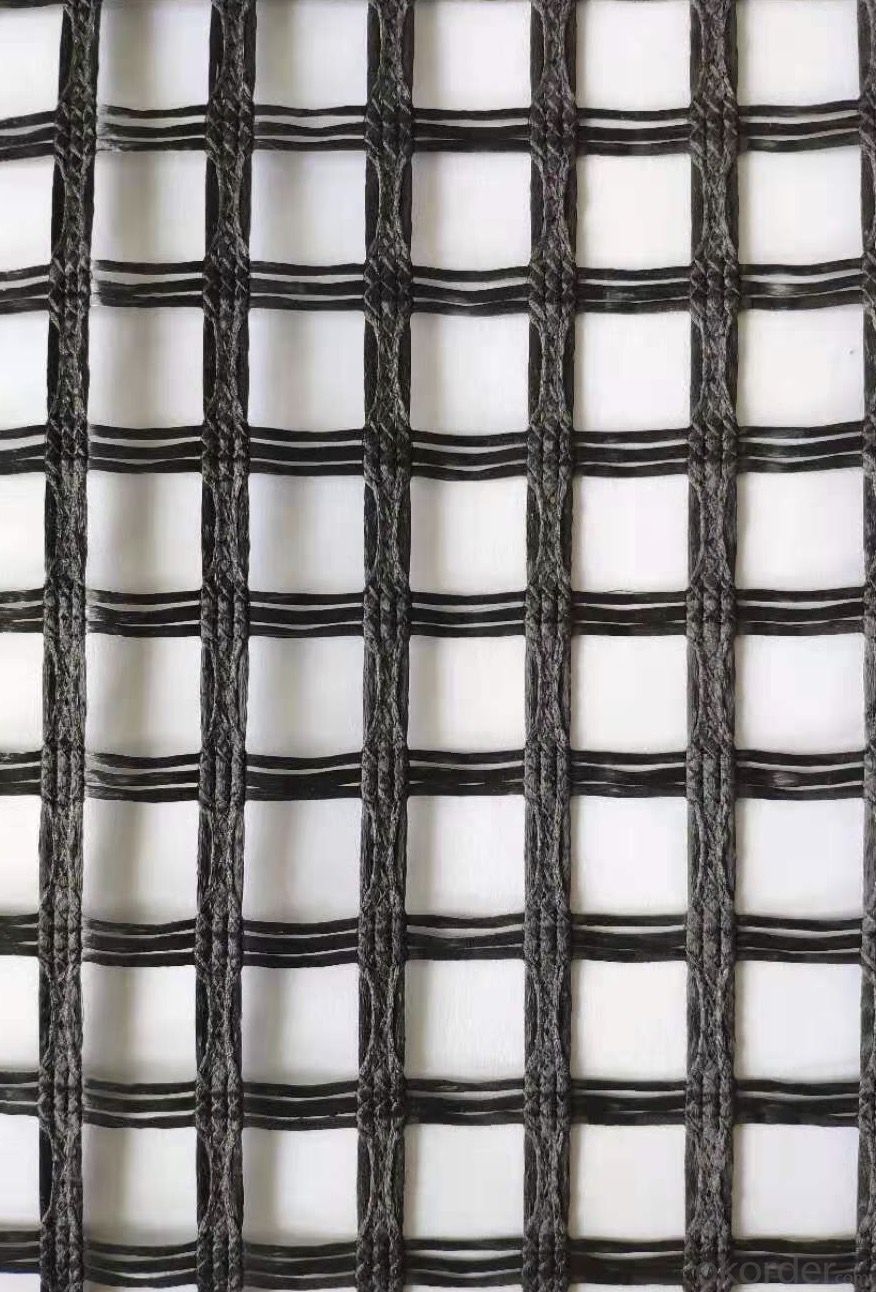

Polyester Geogrid
1.Description of Polyester Geogrid
CMAX polyester geogrid is made from polyester fiber by weaving technology after gummed processing.
2.Specification of Polyester Geogrid
Tensile Strength: 25-25KN; 30-30KN; 50-50KN; 80-80KN; 100-100KN; 120-120KN; 150-150KN; 200-200KN;
Road Size: 3.95x100m; as customer required;
3. Technical Data Sheet of Polyester Geogrid
Item | Unit | Index | ||||||||||||||||||||||
Tensile Strength | Warp | KN/m | 55 | 80 | 100 | 120 | 150 | 200 | 300 | 400 | 600 | 800 | 1200 | |||||||||||
Weft | KN/m | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 50 | 50 | 100 | 200 | ||||||||||||
Elongation | % | 13 or 10 | ||||||||||||||||||||||
Grid size | Mm | 25.4x25.4 or 50.8x50.8 or 76.2x76.2 | ||||||||||||||||||||||
Width | M | 2 or 4 or 5.2 or 6 | ||||||||||||||||||||||
Item | Unit | Index | ||||||||||||||||||||||
Tensile Strength | Warp | KN/m | ||||||||||||||||||||||
Weft | KN/m | |||||||||||||||||||||||
Elongation | % | 13 or 10 | ||||||||||||||||||||||
Grid size | Mm | 25.4x25.4 or 50.8x50.8 or 76.2x76.2 | ||||||||||||||||||||||
Width | m | 2 or 4 or 5.2 or 6 | ||||||||||||||||||||||
4. Property of Polyester Geogrid
1). High tensile strength
2). Low elongation
3).Anti-erosion, anti-aging
4).Good affinity with base material
5). Light weight, water drainage
5.Application of Polyester Geogrid
1). Roadbed reinforcement in highway, railway and municipal road.
2).Reinforcement and separation in dam and river, improve soft soil bearing capacity and stability.
3).Roadbed slope reinforcement, retaining wall renforcement.
FAQ
We have organized several common questions for our clients，may help you sincerely：
Q: How about your company?
A:Our company are one of the largest geosynthetic products supplier in the world.We have the products experience more than 20 years.Already export to USA/Germeny/Australia/Zambia/Brazil etc.more than 20 countries.Almost 10years.Our products including Geocell/Fiberglass Geogrid/Geomembrane/Geotextile/Geonet etc.
Q.Does your products have good qualitity?
A:Yes,we have do many big projects such as the 2008 Beijing Olympic BIRD NEST. Divert water from the south to the north project. And our products have CE certificate also.
Q:How long can we receive the products after purchase?
A:In the purchase of product within three working days, We will arrange the factory delivery as soon as possible. The pecific time of receiving is related to the state and position of customers.Commonly 15-20 working days can be delivery.
Q: what other products can you supply?
A: pp nonwoven geotextile, pp woven geotextile, pp geogrid, HDPE geogrid, geomembrane, etc.
