Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:5 m.t.
Supply Capability:5000 m.t./month
lProduct Description：
a.Available Thickness:
Tread Plate Alloy | Baseboard thickness | Thickness of the pattern |
| 1xxx series | 1.0-1.5mm | 0.3-0.5mm |
| 1.5-5.0mm | 0.6-1.3mm | |
| 2xxx series | 1.2-1.5mm | 0.3-0.5mm |
| 1.5-5.0mm | 0.6-1.2mm | |
| 3xxx series | 1.5-2.0mm | 0.6-1.0mm |
| 2.0-4.5mm | 0.8-1.2mm |
b.Mechanical Properties:
| Five bar tread plate | Bend | Tensile strength(Mpa) | Elongation(%) |
| 3003 H114 | 1/2 closed | 164-170 | 13-13.5 |
c.Chemical Composition:
| Five bar 3003H114 | Si(%) | Fe(%) | Cu(%) | Mg(%) | Cr(%) | Mn(%) | Zn(%) | Ti(%) | Al(%) | Standard |
| Min | 0.145 | 0.464 | 0.058 | <0.03< span=""> | <0.005< span=""> | 1.081 | <0.03< span=""> | 0.0346 | else | GB/T3880-2006 |
| Max | 0.159 | 0.476 | 0.076 | 1.099 | 0.0357 |
l Packaging & Delivery
Packaging detail: First, plastic cloth; Second, Pearl Wool ; Third, wooden cases with dry agent ,without fumigation, wooden pallets
Delivery detail: Within 25days
l Company Profile
CNBM International Corporation, China National Building Materials (Group) Corporation, is one of the largest companies in China building material & equipment industry, with 42,800 employees and sales in 2005 of US Dollar 4.395 billion. In 2006, China National Building Material Company Limited was listed on Hong Kong Stock Market with the stock code as 3323.
The business scope of CNBM covers from manufacturing and sales of a series of building materials to scientific research and design, import and export trade. In many of these fields, CNBM is playing the leading role.

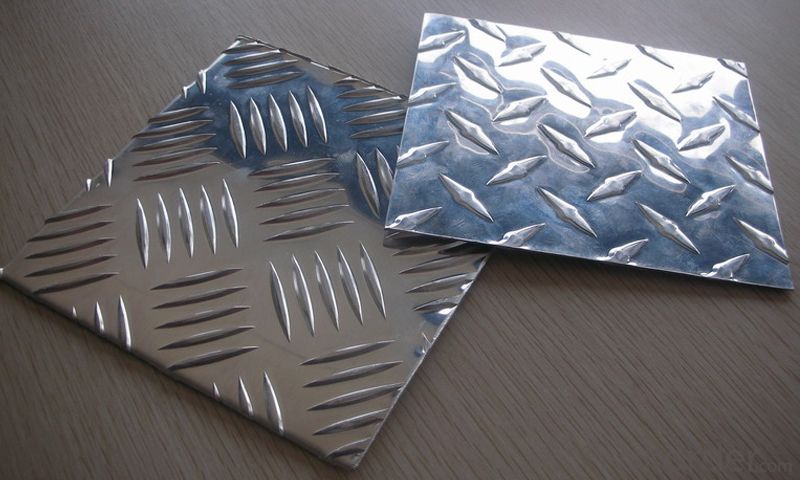

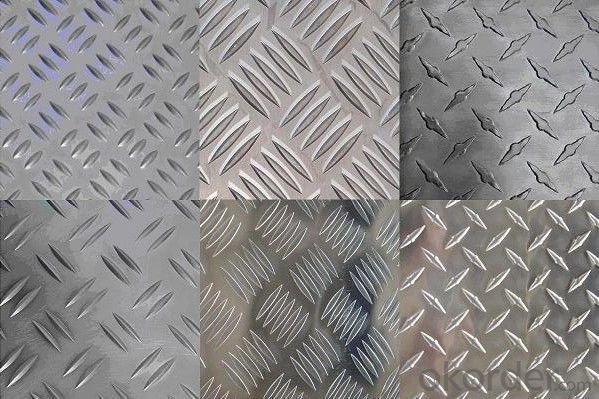

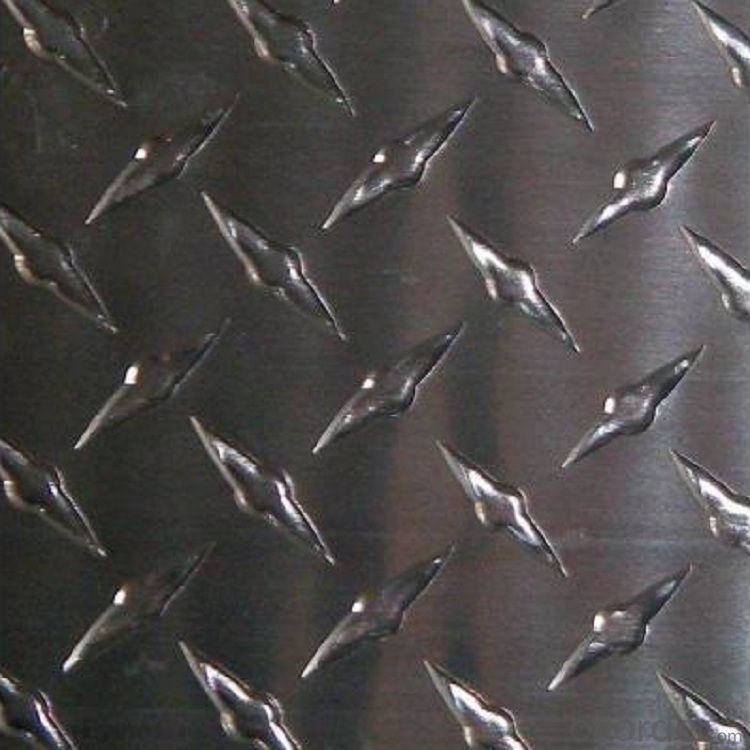

l Product Images and Application
l FAQ
Q: Do you provide free samples?
A: Yes, free samples will be sent to you on freight at destination.
Q: Can I get your latest products catalogue?
A: Yes, it will be sent to you in no time.
Q: What is the MOQ?
A: 5 tons
Q: What are your payment terms?
A: We accept L/C, T/T.
