EVF SERIES VRLA GEL BATTERY FOR ELECTRIC VEHICLE

Loading Port:China main port

Payment Terms:TT OR LC

Min Order Qty:1 pc

Supply Capability:56000 pc/month

Product Description:

Range summary:

EVF SERIES VRLA GEL BATTERY FOR ELECTRIC VEHICLE

Chilwee EVF Series VRLA Gel Battery is specially designed for electric vehicles,i.e. electric automobiles, electric road vehicles, golf cart, low speed electric cart,etc. and other devices require DC power source. The EVF Series adopts international leading technologies to ensure the batteries with features of long cycle life, large current discharge capability, high reliability and safety, and environmental-friendly.

Features:

•Extra Long Life

•High Capacity and High Energy Density

•High Reliability and Safety

•High Environmental Adaptability

•Non-Cadmium Design, Environment-friendly

Applications:

• Electric vehicles, i.e. electric car, tricycles, etc.
• Low speed road vehicles, i.e. golf cart, electric resort car, etc.
• Electric engineering machines, i.e. forklift, lifting platform, sweeper, scraper, etc.

• Renewable energy storage, i.e. solar/wind energy system
• Other devices require DC power supply
Applicable Standards:

• ISO9001, ISO14001
• GB/T-28001
• CE, ROHS
• Other devices require DC power supply

Product Characteristics:

• Nominal Voltage: 6V (3 cells), 8V (4 cells), 12V (6 cells)

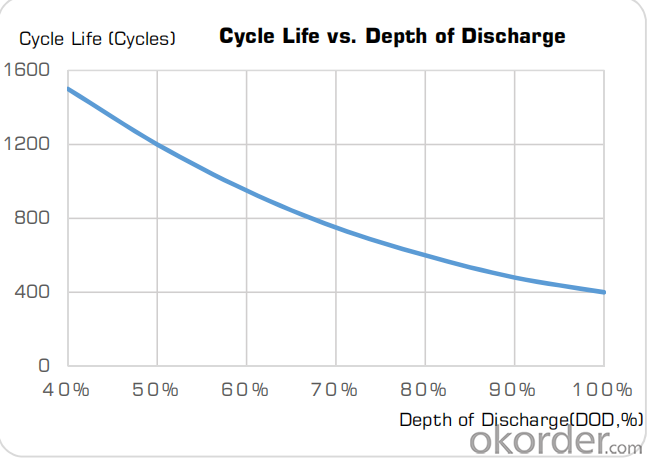

• Cycle Life ≥ 600 cycles @ 80% DOD
• Float Charge Voltage: 2.25V/Cell - 2.30V/Cell
• Equalization Charge Voltage: 2.44V/Cell - 2.46V/Cell
• Low Discharge Rate ≤ 3%

• Container Material: ABS

Model No.	Nominal Voltage(V)	Capacity(Ah)					Length	Width	Height	Total Height	Referance Weight(Kg)
Model No.	Nominal Voltage(V)	2HR	3HR	5HR	10HR	20HR	Length	Width	Height	Total Height	Referance Weight(Kg)
3-EVF-180A	6V	160Ah	180Ah	200Ah	220Ah	220Ah	260mm±3	180mm±3	270mm±3	273mm±3	35Kgs
3-EVF-200A	6V	180Ah	200Ah	220Ah	250Ah	260Ah	260mm±3	180	270mm±3	273mm±3	36Kgs
3-EVF-200T	6V	180Ah	200Ah	220Ah	250Ah	260Ah	330mm±3	180mm±3	215mm±3	219mm±3	36Kgs
4-EVF-150A	8V	135Ah	150Ah	160Ah	180Ah	200Ah	260mm±3	180mm±3	280mm±3	280mm±3	37Kgs
4-EVF-150	8V	135Ah	150Ah	160Ah	180Ah	200Ah	330mm±3	180mm±3	221mm±3	221mm±3	36Kgs
6-EVF-60	12V	53Ah	60Ah	66Ah	80Ah	85Ah	262mm±3	165mm±3	166mm±3	169mm±3	20Kgs
6-EVF-70T	12V	62Ah	70Ah	75Ah	90Ah	95Ah	326mm±3	167mm±3	166mm±3	169mm±3	26Kgs
6-EVF-80	12V	70Ah	80Ah	88Ah	105Ah	112Ah	259mm±3	168mm±3	210mm±3	211mm±3	27Kgs
6-EVF-100A	12V	88Ah	100Ah	110Ah	125Ah	135Ah	332mm±3	176mm±3	215mm±3	218mm±3	36Kgs
6-EVF-100T	12V	88Ah	100Ah	110Ah	125Ah	135Ah	332mm±3	176mm±3	215mm±3	222mm±3	36Kgs
6-EVF-110T	12V	97Ah	110Ah	120Ah	140Ah	145Ah	512mm±3	167mm±3	166mm±3	166mm±3	43Kgs
6-EVF-120	12V	106Ah	120Ah	130Ah	150Ah	160Ah	407mm±3	170mm±3	209mm±3	216mm±3	43Kgs
6-EVF-150A	12V	132Ah	150Ah	160Ah	180Ah	200Ah	484mm±3	170mm±3	226mm±3	241mm±3	53Kgs
6-EVF-150T	12V	132Ah	150Ah	160Ah	180Ah	200Ah	484mm±3	170mm±3	226mm±3	236mm±3	55Kgs
