ERW Welded Steel Pipes For Bicycle

Loading Port:China Main Port

Payment Terms:TT or L/C

Min Order Qty:50MT m.t.

Supply Capability:based on order m.t./month

Product Description:

ERW Welded Steel Pipes

Application of ERW Welded Steel Pipes For Bicycle

It is widely applied to line pipe and casing and tubing in oil transportation and casing field, and it is used in Low,high pressure liquid and gassy transportation and it is also good Structure pipe (for furniture, window, door, building , bridge, mechanical etc).

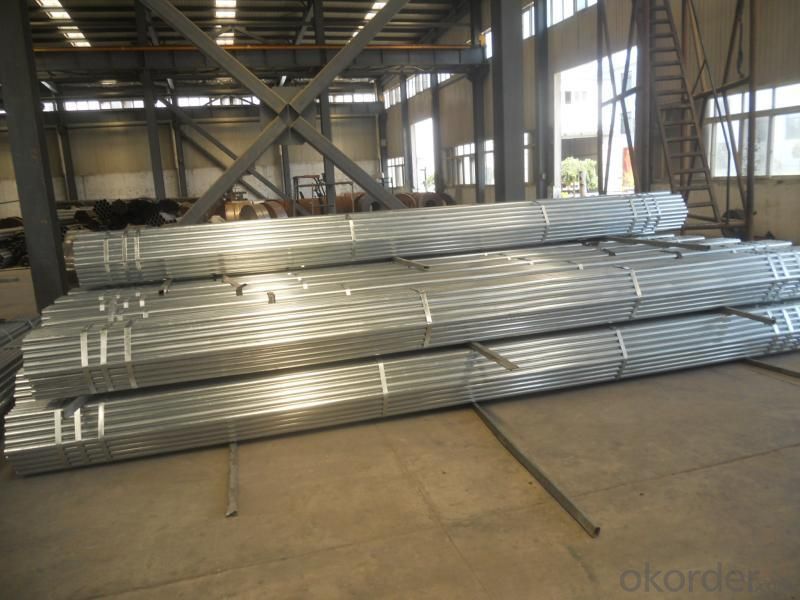

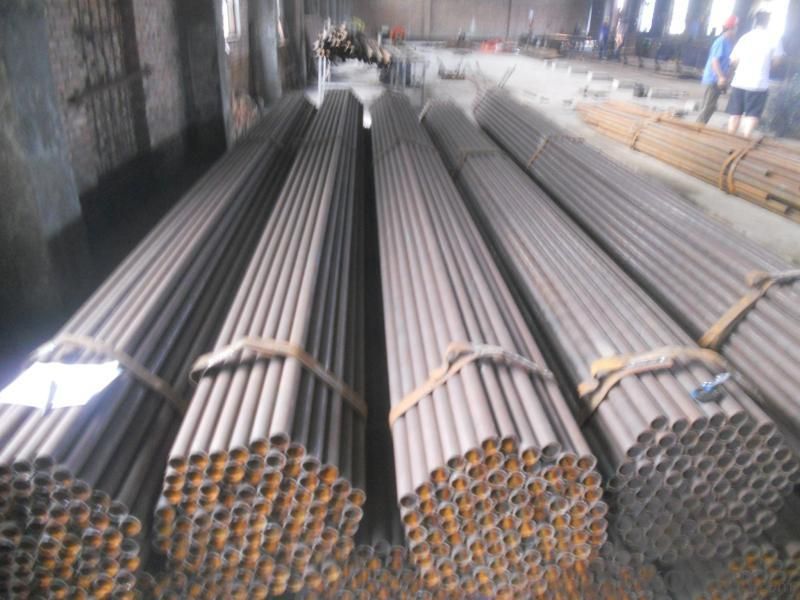

Package: bundles with anti-rust painting and with plastic caps

Standard of of ERW Welded Steel Pipes For Bicycle

API SPEC 5L, API SPEC 5CT, ASTM A53, GB/T9711.1

Steel Grade of of ERW Welded Steel Pipes For Bicycle

API SPEC 5L: B, X42, X46, X52, X56, X60, X65

API SPEC 5CT: J55, K55, N80, L80-1

ASTM A53: A, B, C

GB/T9711.1:L242、L290、L320、L360、L390、L415、L450

Sizes of ERW Welded Steel Pipes For Bicycle

*Remark: Besides below sizes, we also can arrange production based on requirement of customers

OD		WT			WEIGHT
INCH	MM	SCH	MM	INCH	KG/M	LB/INCH
1 1/2”	48.3	STD-40	3.68	0.145	4.09	2.75
1 1/2”	48.3	XS-80	5.08	0.2	5.47	3.68
2”	60.3	STD-40	3.91	0.154	5.49	3.69
2”	60.3	XS-80	5.54	0.218	7.56	5.08
2 1/2”	73	STD-40	5.16	0.203	8.72	5.86
2 1/2”	73	XS-80	7.01	0.276	11.52	7.74
3”	88.9	STD-40	5.49	0.216	11.41	7.67
3”	88.9	XS-80	7.62	0.3	15.43	10.37
3 1/2”	101.6	STD-40	5.74	0.226	13.71	9.21
3 1/2”	101.6	XS-80	8.08	0.318	18.83	12.65
4”	114.3	STD-40	6.02	0.237	16.24	10.91
4”	114.3	XS-80	8.56	0.337	22.55	15.15
5”	141.3	STD-40	6.55	0.258	21.99	14.78
5”	141.3	XS-80	9.53	0.375	31.28	21.02
6”	168.3	STD-40	7.11	0.28	28.55	19.19
6”	168.3	XS-80	10.97	0.432	42.99	28.89
8”	219.1	STD-40	8.18	0.322	42.98	28.88
8”	219.1	XS-80	12.7	0.5	65.3	43.88
10”	273	STD-40	9.27	0.365	60.9	40.92
10”	273	80	15.09	0.594	96.95	65.15
12”	323.8	STD	9.53	0.375	74.61	50.13
12”	323.8	40	10.31	0.406	80.51	54.1
12”	323.8	XS	12.7	0.5	98.42	66.14
12”	323.8	80	17.48	0.688	133.38	89.63
14”	355.6	40	11.13	0.438	95.51	64.18
14”	355.6	XS	12.7	0.5	108.48	72.9
14”	355.6	80	19.05	0.75	159.71	107.32
16”	406.4	XS-40	12.7	0.5	124.55	83.69
18”	457	STD	9.53	0.375	106.23	71.38
18”	457	40	14.27	0.562	157.38	105.75
18”	457	80	23.83	0.938	257.13	172.78
20”	508	40	15.09	0.594	185.28	124.5
20”	508	80	26.19	1.031	314.33	211.22

Standard: GB/9711.1

Mechanical Pr

Standard	Grade	（MPa）	（MPa）	Min(%)
Standard	Grade	Yield strength	Tensile Strength	Elongation
GB/T9711.1	L245	≥245	≥415	21
	L290	≥290	≥415	21
	L320	≥320	≥435	20
	L360	≥360	≥460	19
	L390	≥390	≥490	18
	L415	≥415	≥520	17
	L450	≥450	≥535	17
	L485	≥485	≥570	17

Chemical Composition(%)

Standard	Grade	C	Mn	P	S
Standard	Grade	Max	Max	Max	Max
GB/T9711.1	L245	0.26	0.15	0.030	0.030
	L290	0.28	1.25	0.030	0.030
	L320, L360	0.30	1.25	0.030	0.030
	L390, L415	0.26	1.35	0.030	0.030
	L450	0.26	1.40	0.030	0.030
	L485	0.23	1.60	0.025	0.030

Standard: GB/9711.2

Mechanical Properties

Standard	Grade	（MPa） Yield strength		（MPa） Tensile Strength		Min(%) Elongation

GB/T9711.2		Rt0.5Min	Rt0.5Max	RmMin	Rt0.5/Rm Max
	L245	245	440		0.80	22
	L245				0.85
	L290	290	440		0.80	21
	L290				0.85
	L360	360	510		0.85	20
	L360				0.85
	L415	415	565		0.85	18
	L415				0.85
	L450	450	570	535	0.87	18
	L485	485	605	570	0.90	18

Chemical Composition (%)

Standard	Grade	C	Mn	P	S	V	Nb	Ti	CEV
Standard	Grade	Max	Max	Max	Max	Max	Max	Max	Max
GB/T9711.2	L245NB	0.16	1.1	0.025	0.020	-	-	-	0.42
	L290NB	0.17	1.2	0.025	0.020	0.05	0.05	0.04	0.42
	L360NB	0.20	1.6	0.025	0.020	0.10	0.05	0.04	0.45
	L415NB	0.21	1.6	0.025	0.020	0.15	0.05	0.04	-
	L245NB, L290NB	0.16	1.5	0.025	0.020	0.04	0.04	-	0.4
	L360NB	0.16	1.6	0.025	0.020	0.05	0.05	0.04	0.41
	L415NB	0.16	1.6	0.025	0.020	0.08	0.05	0.06	0.42
	L450NB	0.16	1.6	0.025	0.020	0.10	0.05	0.06	0.43
	L485NB	0.16	1.7	0.025	0.020	0.10	0.06	0.06	0.43

Standard: ASTM A53

Mechanical Properties

Standard	Grade	（MPa）	（MPa）
Standard	Grade	Yield strength	Tensile Strength
ASTM A53M	A	205	330
ASTM A53M	B	240	415

Chemical Composition(%)

Standard	Grade	C	Mn	P	S	V	Ni	Cu	Cr	Mo
Standard	Grade	Max	Max	Max	Max	Max	Max	Max	Max	Max
ASTM A53M	A	0.25	0.95	0.05	0.045	0.08	0.4	0.5	0.4	0.15
ASTM A53M	B	0.30	1.20	0.05	0.045	0.08	0.4	0.5	0.4	0.15
