Loading Port:Shenzhen
Payment Terms:T/T
Min Order Qty:20 Meters m
Supply Capability:10000 Meters Per Day m/month
General Introduction

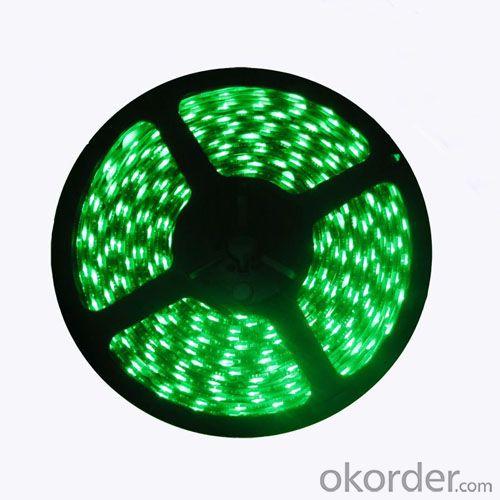

high quality Epistar smd5050 led strip IP20 non waterproof flexible led strip 60leds/m with 2 years warranty
Specification
All of our led strips---------choose high brightness SMD LED chip,with long warranty
3528 led strip: Epistar chip 6-7lm per led, 2 years warranty ,30leds/m, 60leds/m,120leds/m available
5050 led strip: Epistar chip 18-20lm per led, 3 years warranty ,30leds/m,60leds/m available
5630 led strip: a.) Epistar chip,45~50lm per led,CRI>86Ra,30leds/m,60leds/m available
b.) Samsung/Seoul chip,45~50lm per led,CRI:82~87Ra, 30leds/m,60leds/m available
Their brightness and IP rank are as below:
3528 30leds< 3528 60leds< 5050 30leds< 3528 120leds< 5630 30leds< 5050 60leds< 5630 60leds
IP20 Nonwaterproof
IP67 Waterproof A: Epoxy gel +"u" PC tube ( Item A )
IP65 Waterproof B: Silicon tube (removeable) ( Item B )
IP65 Waterproof C: Dropping Epoxy gel ( Item C )
IP68 Waterproof D: Silicon gel injected ( Item D )
Products features:
1). High brightness Taiwan Epistar smd5050 led chip with 18~20lm/led
2). High CRI: > 75Ra
3). Viewing angle: 120 degrees, Voltage: 12VDC standard, 24VDC available

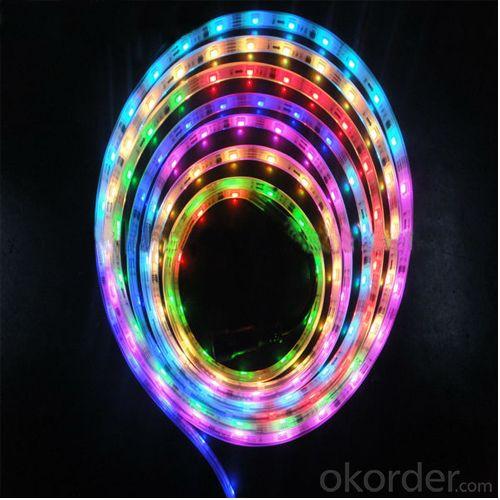

4). Various colors including white/ nature white/ warm white/ red/ green/ blue/ yellow/rgb
5). IP20 non waterproof indoor, IP65.IP67,IP68 waterproof outdoor available
6). 3M backside or clips for easy installation
7). 30leds/m (7.2w/m), 60leds/m (14.4w/m), 5m/roll
8). Solid-state, high shock / vibration resistant
Twinkle led company Epistar smd5050 led strip series as below:
| Item No. | Color | IP Rank | Adhesive tape | Waterproof materials | Discription | Packaging details |
| 5050 LED strip with Epistar 18~20lm/led high brightness | ||||||
| TW-FR5050-30-12 | RGB / W /WW/R/G/B/Y | IP20 | 3M tape | x | SMD5050 . Epistar chip 18-20lm/led | 400m -ctn-11kgs |
| TW-FR5050-30A-12 | IP67 | 3M tape+ clips | epoxy gel +"u" PC tube | 30leds/meter, 5meter/roll,12VDC | 300m--ctn--25kgs | |
| TW-FR5050-30B-12 | IP65 | clips | Silicon tube (removeable) | 7.2W/meter, 36W/roll | 300m--ctn--15kgs | |
| TW-FR5050-30C-12 | IP65 | 3M tape | epoxy gel | Double platen PCB, | 300m--ctn--15kgs | |
| TW-FR5050-30D-12 | IP68 | clips | Silicon gel injected | 10mm width white and brown available | 300m--ctn--15kgs | |
| TW-FR5050-60-12/24 | RGB / W /WW/R/G/B/Y | IP20 | 3M tape | x | SMD5050 . Epistar chip 18-20lm/led | 400m -ctn-11kgs |
| TW-FR5050-60A-12/24 | IP67 | 3M tape+ clips | epoxy gel +"u" PC tube | 60leds/meter, 5meter/roll,12V or 24VVDC | 300m--ctn--25kgs | |
| TW-FR5050-60B-12/24 | IP65 | clips | Silicon tube (removeable) | 14.4W/meter, 72W/roll | 300m--ctn--15kgs | |
| TW-FR5050-60C-12/24 | IP65 | 3M tape | epoxy gel | Double platen PCB, | 300m--ctn--15kgs | |
| TW-FR5050-60D-12/24 | IP68 | clips | Silicon gel injected | 10mm width white and brown available | 300m--ctn--15kgs | |
Applications:
1). Architectural decorative lighting
2). Accent lighting
3). Border/contour lighting
4). Emergency& security lighting
5). Auditorium walkway lighting
6). Stairway accent lighting
7). Concealed lighting
8). Backlighting for signage letters
9). Channel letter lighting
10). Cove lighting
Our Services
1.Your inquiry related to our products or prices will be replied in 24hrs.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3.Protection of your sales area, ideas of design and all your private information.
Packaging & Delivery
Package:
5 meters per roll ,one roll in an anti-static bag ,outside with export carton
Delivery:
Shipping Service | Estimated Delivery Time |
DHL | 2-8 business days |
FedEx | 3-8 business days |
TNT | 2-10 business days |
UPS | 1-7 business days |
EMS | 6-14 business days |
ePacket | 7-12 business days |
China Post Air Mail | 7-15 business days |
China Post SAL | 14-30 business days |
By sea | 30-40 business days |
1. 3-10 business days for Sample Orders; 7-40 business days for Bulk Orders.
2. "Business days" means Monday-Friday, excluding holidays.
3. DHL and UPS cannot ship to military or P.O. boxes address.
4. The Shipping Service above is for reference only, for any other questions, please feel free to contact us.
