EPDM waterproofing Rubber membrane
1. Product Description:
EPDM waterproofing membrane is made from ternary ethylene-propylene rubber. We adopts the world advanced equipment of cold feeding
extrusion and continuous vulcanization technology. With the best performance among high polymer waterproof materials,
EPDM is of exceptional elasticity and will not split or crack under normal building movement.
2. Product Specification:
Type | epdm waterproofing membrane |
Material | EPDM Rubber |
Surface | Fleece back,plain black back |
Thickness | 1.2mm,1.5mm,2.0mm |
Width | 1.2m, 2m-4m, customized |
Length | 20m/roll |
Usage | basements, ponds, Lake, steel structure roofing, underground, tunnels |
Weight(kg/roll) | 1.2mm 37-38 |
1.5mm 40-41 | |
2.0mm 58-59 |
3. Technical Data:
Tensile Strength N/CM | Normal temperature: ≥60 ; 60°C: ≥30 |
Breaking Elongation % | Normal temperature: ≥400; -20°C: ≥10 |
Tear Resistance N | ≥20 |
Impermeability, 30 min no leakage | 0.3Mpa |
Low Temperature Bending °C | ≤ -20 |
Heating Shrinking mm | Extension: ≥2; Shrink: ≥4 |
Heat Resistance (80°C×168h) | Tensile Strength %: ≥80 ; Keeping rate of adhesive breaking:≥70 |
Synthetic aging | Tensile Strength %: ≥80 ; Keeping rate of adhesive breaking:≥80 |
4. Product Application:
Widely used in roofs, basement, toilet, swimming pool, and all kinds of industry and civil building waterproofing, reservoir, vivicism, bridge, underground, tunnel and dam waterproofing, especially to the keystone waterproofing projects which is durability, high corrosion resistance and easy deformation.

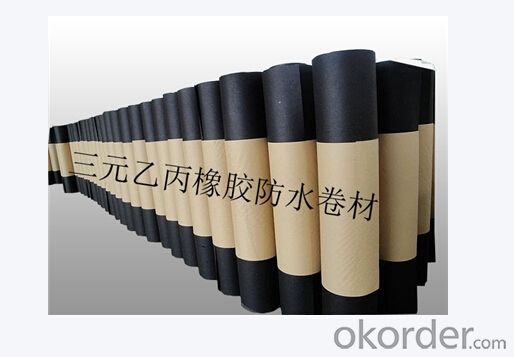

4. Some photos:
