Loading Port:Shenzhen
Payment Terms:T/T
Min Order Qty:5 Pieces pc
Supply Capability:20000 Pieces per Month pc/month

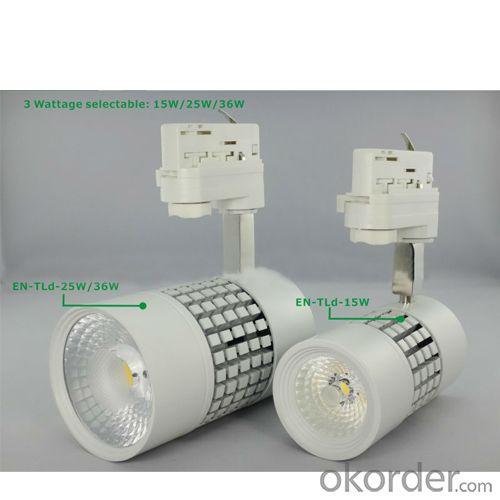

ENCORE 90Ra CREE COB led track light with 36W power and three phase adapot for commercial gallery
COB led track light specification:

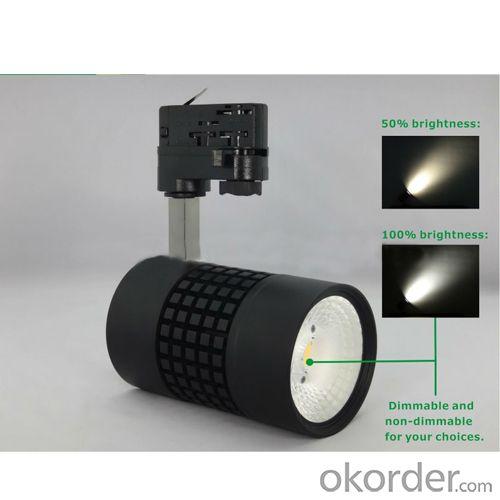

-Non-dimmable version is available, input voltage: AC100~260V
-3-Circuti, 3pins and 2pins track adapter selectable.
-Housing material: aluminum.
-Working environment temperature: -20oc ~ +50oc.
Model number | Electrical parameters | Optical parameters | Physical parameter | |||||
Input voltage(V) | Power (w) | Luminous flux (lm) | Beam angle (o) | CCT (K) | CRI | Size (mm) | Net Weight (g) | |
EN-TLd- 15W | AC 110 / 230 | 15 | 1175 1290 1357 | 20 / 38 / 60 | WW(2700~3500) NW(4000~5000) CW (5500~7000) | 82 82 80 | 70(Dia.) X 131(L) X 109(H) | 645 |
EN-TLd- 25W | AC 110 / 230 | 25 | 1850 2125 2275 | 24 / 38 / 60 | WW(2700~3500) NW(4000~5000) CW (5500~7000) | 82 82 80 | 90(Dia.) X 146(L) X 129(H) | 1039 |
EN-TLd- 36W | AC 110 / 230 | 36 | 2866 3280 3518 | 24 / 38 / 60 | WW(2700~3500) NW(4000~5000) CW (5500~7000) | 82 82 80 | 90(Dia.) X 146(L) X 129(H) | 1039 |
COB led track light application:
1. Replacement for conventional halogen track light;
2. Shopping mall or retailing store, jewellery and clothing display;
3. Museum or art gallery, exhibition hall and other partial lighting;
4. Commercial complex, supermarket, hotel, restaurant, bar, disco, karaoke lighting;
5. Conference, meeting room, showroom, showcase, etc.
Packaging & Shipping
Model | EN-TLd-15W | EN-TLd-25W | EN-TLd-36W |
Pcs/Carton | 12pcs/CTN | 12pcs/CTN | 12pcs/CTN |
Inner Box size | 16x16x16.5cm | 18.2x18.2x18.5cm | 18.2x18.2x18.5cm |
Carton size | 51x35x41cm | 57.5x39.3x45cm | 57.5x39.3x45cm |
Net weight | 10kg | 16.5kg | 16.5kg |
Gross weight | 12kg | 18kg | 18kg |
Delivery:
Shipping Service | Estimated Delivery Time |
DHL | 2-8 business days |
FedEx | 3-8 business days |
TNT | 2-10 business days |
UPS | 1-7 business days |
EMS | 6-14 business days |
ePacket | 7-12 business days |
China Post Air Mail | 7-15 business days |
China Post SAL | 14-30 business days |
Air freight | 3-10 business days |
By Sea | 30-40 business days |
1. 3-5 business days for Sample Orders; 7-30 business days for Bulk Orders for Bulk Orders.
2. "Business days" means Monday-Friday, excluding holidays.
3. DHL and UPS cannot ship to military or P.O. boxes address
4. The Shipping Service above is for reference only, for any other questions, please feel free to contact us.
