We are professional manufacturer in concrete machinery for 20 years
Commodity features

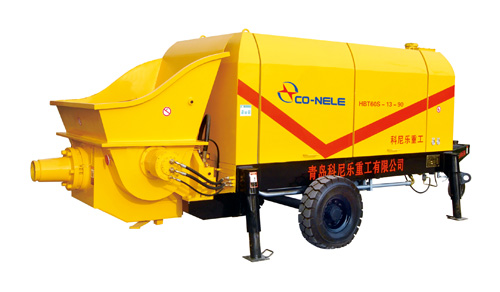

Through many years efforts, Our company develop the excellent performance concrete pump with whole hydraulic control on the base of the mature electrical control reversing concrete pump manufacture. This hydraulic system greatly enhance the whole machine reliability which confirming the machine in the harsh conditions working without fault. Main pump’s efficiency 15-120 m3 /h, concrete pressure 5-20Mpa all kinds of motor /diesel engine concrete pump.HBT Series Motor Concrete Pump Main Technical Parameters
Item | Unit | S valve pump | |||||
HBTS60-9 | HBTS60-13 | HBTS60-16 | HBT80S-13 | HBT80S-16 | |||
Theoretical delivery volum | low pressure | m3 /h | 60 | 60 | 60 | 80 | 80 |
high pressure | m3 h | 36 | 36 | 35 | 47 | 46 | |
Theoretical delivery pressure | low pressure | Mpa | 5.7 | 7.6 | 9.6 | 7.6 | 9.6 |
high pressure | Mpa m3 | 9 | 12.5 | 15.7 | 12.5 | 15.7 | |
Hydraulic pressure | Mpa | 26 | 32 | 32 | 32 | 32 | |
Motor speed | r/min | 1480 | |||||
Main oil pump | KAWASAKI | ||||||
Master cylinder diameter | mm | 125/80x1650 | 125/80x1650 | 140/90x1650 | 125/80x1650 | 140/90x1650 (1800) | |
Convey oil container diameter | mm | 200 | |||||
Power | Kw | 75 | 90 | 110 | 110 | 132 | |
Hydraulic oil container capacity | L | 500 | 500 | 500 | 500 | 500 | |
Hopper capacity | m3 | 0.6 | |||||
Working voltage | V | 380AC | |||||
Weight | kg | 5000 | 5000 | 5200 | 5200 | 5500 | |
Max. delivery distance | Vertical height | m | 150 | 180 | 250 | 180 | 250 |
Horizontal distance | m | 600 | 700 | 1000 | 700 | 1000 | |
