Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:5 SET
Supply Capability:1000000 SET/month
1. The waterproof rating is IP68
2. High energy density
3. Life cycle monitoring
4. Energy saving and environmental protection
5. Pass the national standard mandatory inspection requirements
The self-developed EV power battery system has passed the inspection of the National Compulsory Inspection Center and has the characteristics of long cruising range, safer and smarter. The self-developed BMS with the original algorithm makes the SOC estimation more accurate, and the quality of the car-level system has obtained the fixed-point supporting facilities of many auto factories.
Product Description
| Product Spec | |

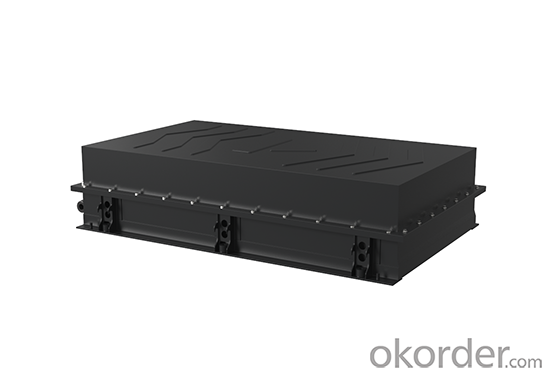

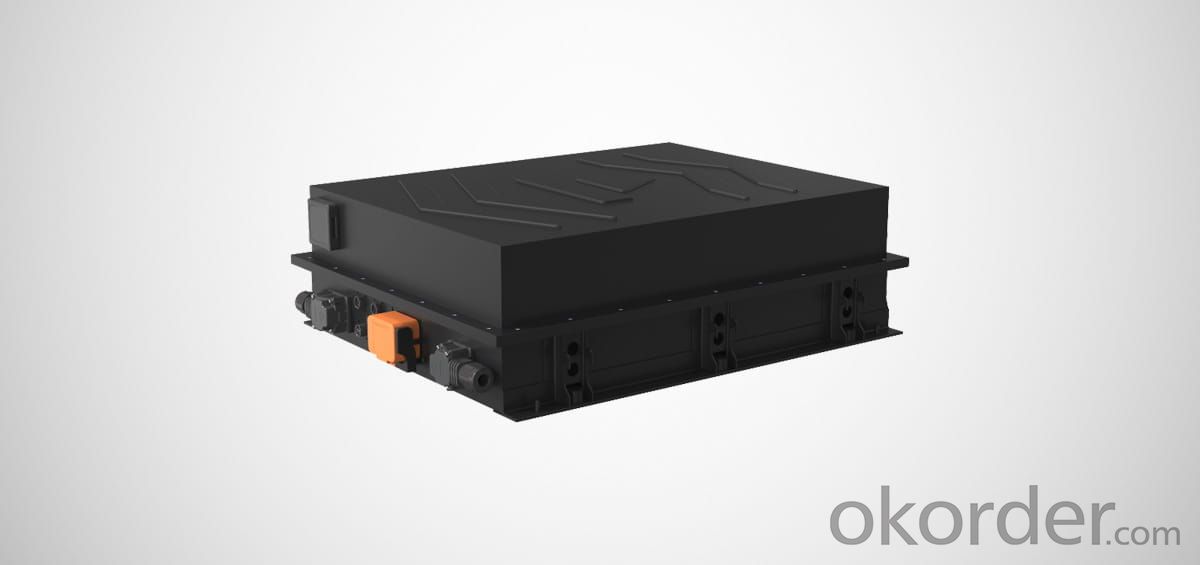

Product number | Electric bus B22Lithium battery system |
Product portfolio form | 1P36S |
Cooling method | Natural cooling |
Rated voltage (V) | 115.2 |
Rated capacity (Ah) | 228 |
Rated energy (Wh) | 26265 |
System charge termination voltage (V) | 131.4 |
System discharge end voltage (V) | 90 |
Single charging protection voltage (V) | 3.65 |
Single discharge protection voltage (V) | 2.5 |
Charging working temperature range (℃) | 0~60 |
Discharge working temperature range (℃) | -30~60 |
Maximum allowable continuous charging current (A) | 228 |
Maximum allowable continuous discharge current (A) | 228 |
Size (mm) | （810±5）×（630±5）×（240±5） |
Weight (kg) | 173±5 |
APPLICATION SCENERY:
FAQ
CFE Lithium-ion Battery
Q: What kind of battery you can provide?
A: a.12.8V-25.6V 30Ah/40Ah/50Ah/100Ah//200Ah LFP battery for replacement of Lead-acid/Gel battery.
b. 51.2V 50Ah/100Ah LFP battery module for residential energy storage with cube (10,15,20 kwh).
c. Solar hybrid inverters with power 4,5,6,8,10,12kw, solar off grid inverter 3,5 kw.
d. Inverter & Battery ALL IN ONE, with capacity 5,10,15,20 kwh.
e. E-mobility battery for E-scooter, E-bus, E golf cart etc.(Rank Top 3 in China).
f. 48V 50A/100AH/150AH/200AH LFP Battery for Telecom-towers.
Q: What is the capacity of production?
A: CFE has 13 production lines with a total capacity of 12Gwh for both storage and E-mobility.
Q：How long is the warranty period?
A： Our limited warranty is valid for a period 5 years (12.8V products) /10 years (51.2V products) after delivery. It is restricted by specifications and warranty terms.
Q: How long is the estimated delivery time?
A: The delivery time is within 25 days after receiving the payment.
Q: Are you able to handle shipment transportation?
A: We can arrange the shipment to most places as required.
Q: What kind of certification do you have?
A: We have SGS, TÜV, IEC 62040-1, IEC 62109-1, IEC 62109-2, IEC 62619, UN38.3, IEC 62133, CEC, UL, MSDS, ISO 9001 certifications, but each product may be different.
Q: What kind of product quality your factory offer?
A: We provide the most competitive products at the highest quality. (100% cell sorting test under inner resistance ≦2mΩ, voltage differ ≦ 2mV,100% EOL test, 100 % aging, 100% final product testing) .
Q: Can we print our logo on products?
A: We can provide one to one customized OEM with a MOQ demand.
Q: What is the validity of the quotation?
A: Due to the raw material price fluctuation, the quotation validity is 10 days.
