We are professional do e-bike kits business for many years for the customers all over the world, and have met so many troubles, with these troubles, we have much experience on e-bike kits today.
Our e-bike kits are easy to install and allow you to convert your standard bicycle into an fun and eco-friendly e-bike. Since every model is different and components will vary, it's your responsibility to determine the best way to install an electric bike kit on your bike. Although most of the steps are similar from install to install, we have instructions can help the customers to convert their bicycle.
We have build the Europe after-sale service center in Europe to repair the parts including motor, batteries, controller etc, also for the whole ebikes repairing. As one of the pioneer seller for ebikes in china, BTN aims to master clean energy technique, and develop energy-saving and environmental-friendly ebikes.
1 long life and maintenance-free
2 Small and mini, less weight
2 excellent start performance and high efficiency
3 More economical
4 Adopt Norm Planetary deceleration system,oil-impregnated gear and special modification nylon gear to increase resistance to wear of the gear.
5 Modified nylon gear can withstand worse temperature to ensure with the gear can
work normally in any temperature environment,
6 High efficiency and wide platform, quick starting and strong capability for uphill.
7 Popular in European and American market.

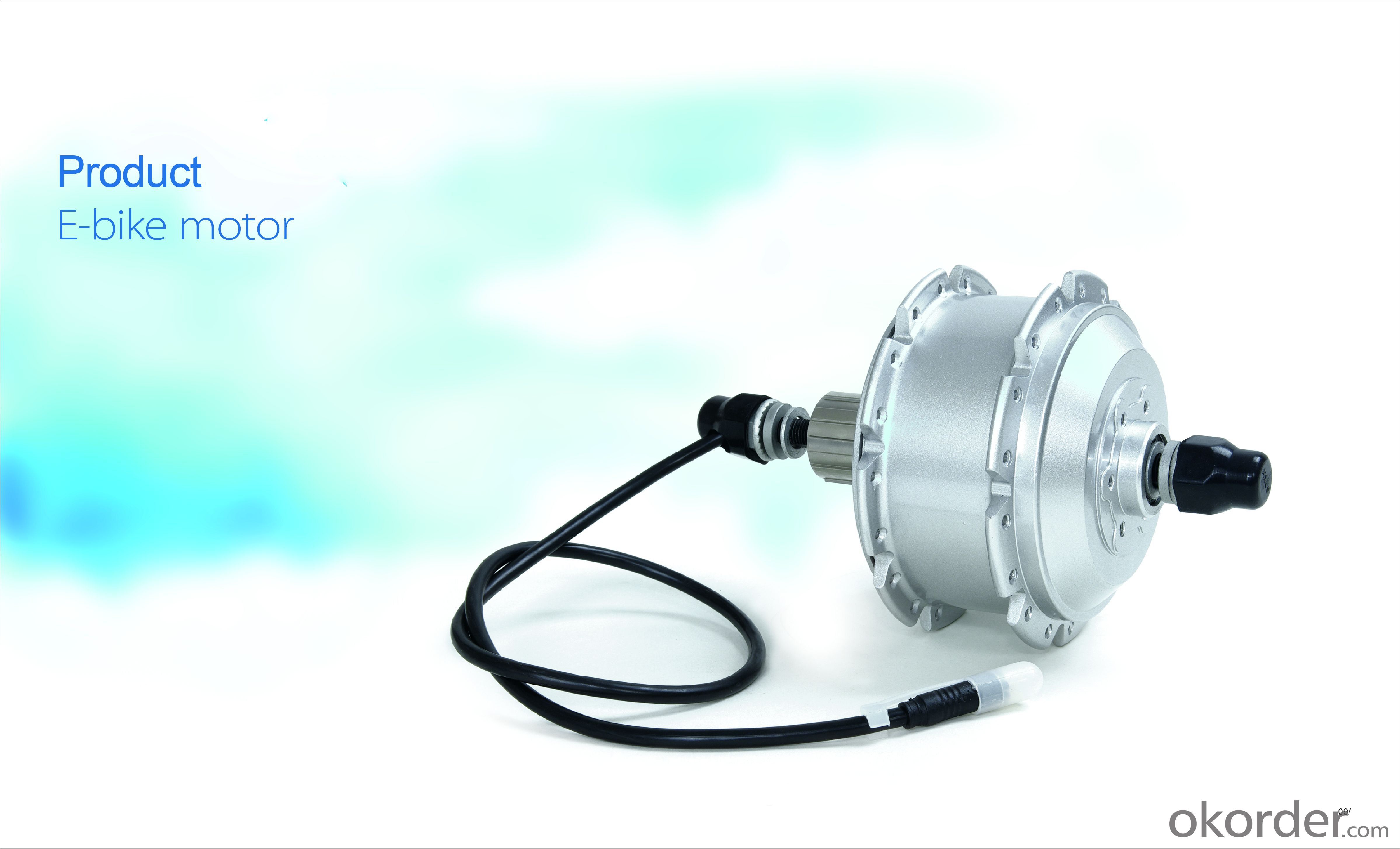

1.24V/36V/48V 250W/350W/500W/750W/1000W Electric Bicycle Hub Motor/ 3 wheel electric bicycle
2.Apply for 22"/24"/26"/28" rim
Rated Power(W): | 250 |
| Rated Voltage(V) | 36 |
| Max Speed(rpm): | 285 |
| Rated Efficiency (%) | ≥78% |
| 2P: | 20 |
| Reduction Ratio: | 1:4.35 |
| Weight(kg): | 2.8 |
| Over Lock Dimension(mm): | 100 |
| Spoke Specification: | 12G/13G |
| Cable location: | Shaft center,right |
| Hall sensor: | Optional |
| Integrate speed sensor: | Optional |
| Limitied Current(A) | 0.7 |
| Brake type: | V/Dics brake |
| Surface: | Silver/Sliver painted/Black/Black painted |
| Noise(db): | ≤55 |
| Salt fog test(h): | 24/96 |
| Water proof Grade: | IP54 |
| Certification: | ROHS EN15194 |
FAQ
1.Which country do you mainly export to?
A: Our products are very popular in Mid East, India, South East Asia, Latin America, Africa.
2.What's the advantages of your company?
1. Size,RPM,Torque and Over Lock Dimension can be customized
2. High performance in water proof
3. 2 years warranty except destructible test and artifically damage
4. Cpmpetitive Price
