Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month
Duk Popular mp Truc336HP 6X4 25 Ton(ZZ3257N3647A)
Product Details
Model NO.:ZZ3257N3647A
Transmission Type:Manual
Power:Diesel
Load Capacity:21-30t
Emission Standard:Euro 2
Drive Wheel:6×4
Engine Capacity:＞8L
Seats:≤5
Horsepower:251-350hp
Tire Type:Solid Tire
Tire Certification:GCC, ISO
Tire Design:Radial
Dumping Type:Underbody Lifting
Condition:New
Lifting System:Hyva/Euric Front Lift or T/F Type
Driving Typr:4X2, 4X4, 6X4, 6X6, 8X4
Truck Body: Floor:8mm, 10mm, 12mm, 16mm, 20mm Side
Cab:One Bed or Two, with Air-Condition or Not
Export Markets:Global
Trademark:Sinotruk
Packing:Suitable for Ocean Shipment
Standard:ISO9001-2008
Origin:Shandong, China
Production Capacity:500 Sets/Month
Product Description

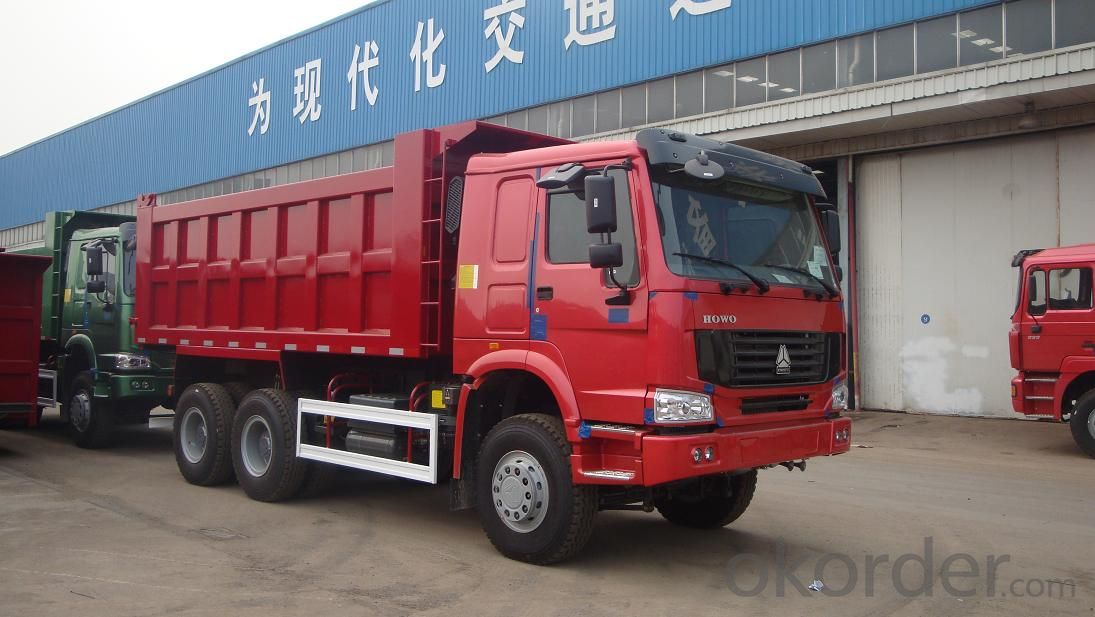

Sino truk popular 336HP 6x4 dump truck 25 ton(ZZ3257N3647A)
Basic | Made | SINOTRUK |
| Series | HOWO | |
| Model | ZZ3257N3647A | |
| Driving Type | 6x4 | |
| Engine | Engine model | WD615.69 |
| Engine Type | 6-cylinder in-line with water cooling, turbo-charging and intercooling,4-stroke direct injection diesel engine | |
| Maximum output | 336 hp (247 Kw) at 2200 rpm | |
| Displacement | 9.726 L | |
| Bore | 126 mm | |
| Stroke | 130 mm | |
| Compression ratio | 29.8 hp/l | |
| Specific fuel consumption | 195 g/kWh | |
| Transmission | Model | HW15710(Fuller technology) |
| speeds | 10 speeds | |
| Axle | Front Axle | 9T |
| Rear Axle | 16T | |
| Fuel tank | Aluminium fuel tank | 300 L capacity with locking fuel cap |
| Steering | Model | ZF power steering, modol ZF8098, hydraulic steering |
| Tyre | Radial Tyre | 12.00R20 |
| Driver's Cab | Flatroof cab with bed | all steal forward control,2-arm windscreen wiper system with three speed,laminated windscreen, damped adjustable driver's seat, with heating and ventilating system, adjustable steering wheel,air conditioner |
| Dimensions mm | Wheel base | 3600+1350 |
| Overall dimmensions | 8145*2496*3386 | |
| Dimension of the rear dump body | 5400*2300*1400(17M 3 ) | |
| Performance | Maximum driving speed (km/h) | 75 |
| Maximum gradeability (%) | 40 | |
| Minimum ground clearance (mm) | 314 | |
| Minimum turning circle (m) | 20 | |
| Fuel consumption (l/100 km) | 28 |
