Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month
Dump Truck HOWO 6X4 25 Ton New Design U Type
Product Details
Model NO.:HOWO U type
Transmission Type:Manual
Power:Diesel
Load Capacity:21-30t
Emission Standard:Euro 2
Drive Wheel:6×4
Engine Capacity:＞8L
Seats:≤5
Horsepower:251-350hp
Tire Type:Inner Tube
Tire Certification:GCC
Tire Design:Radial
Dumping Type:Front Lifting Style
Condition:New
Export Markets:North America, South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia
Trademark:HINOSINOTRUK
Packing:Nude Package
Standard:6X4, U type
Origin:China
HS Code:8701909000
Production Capacity:50000 Units/Year

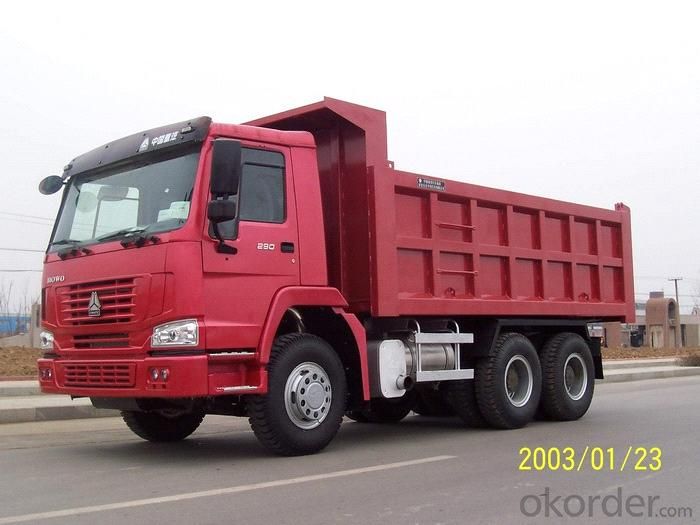

HOWO 6X4 25 Ton New Design U type Dump truck
Advantages:
1. Factory directly supply
2. More strong
| HOWO 6X4 U-type Dump truck | |
| Performance | |
| Curb weight | 12290kg |
| Rated loading capacity | 25ton |
| Wheelbase(mm) | 3625+1350 |
| Max. speed(km/h) | 75km |
| Max. gradeability (%) | 35 |
| Min. turning radius(m) | 16 |
| Specifications | |
| Driving mode | 6x4 |
| U- type Hopper size/capacity (mm/cubic) | 5600*2300*1300(mm)/16.7 cubic, Front hydraulic lifting system/ HYVA front lifting system for optional |
| Cab | VOLVO type standard cab, No sleeper, Left hand drive or Right hand drive |
| Engine | WD615 336HP/247KW, Euro 2 engine |
| Transmission | HW15710 manual transmission |
| Clutch | Φ430 |
| Driving axle | Construction project type, Double reduction driving axle, 16ton loading capacity |
| Fuel tank | 300L diesel |
| Tire | 12.00-20/ 12.00R20 |
