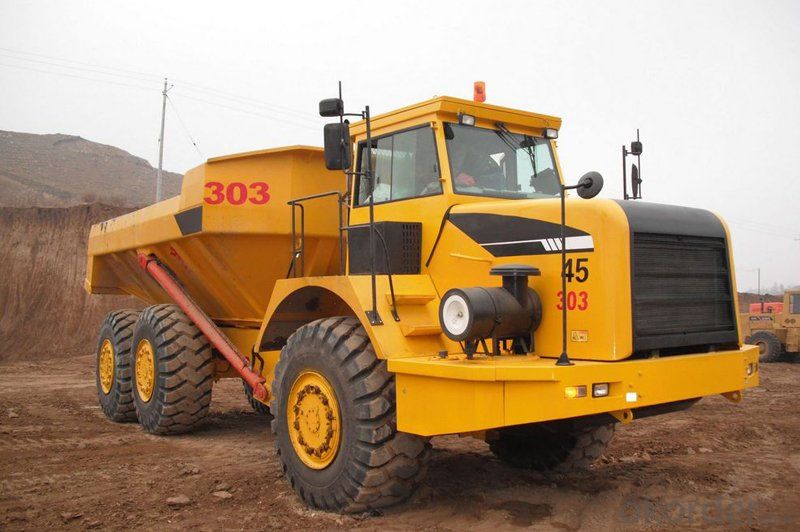

Dump Truck Famous Brand 50tons 6X4

Loading Port:Shanghai

Payment Terms:TT OR LC

Min Order Qty:1 PCS

Supply Capability:1500 PCS/month

Product Description:

 Dump Truck Famous Brand   50tons 6X4

Product Details

Basic Info.

Model NO.:CLW dump truck



Transmission Type:Manual

Power:Diesel



Load Capacity:61-70t

Emission Standard:Euro 2



Drive Wheel:6×4

Engine Capacity:>8L



Seats:≤5

Horsepower:351-450hp



Tire Type:Inner Tube

Tire Certification:ECE, GCC, ISO, DOT



Tire Design:Radial

Dumping Type:Front Lifting Style



Condition:New

Description:Famous Brand Sinotruk HOWO Mine Dump Truck 50tons



Volume of Dump Body:18-30 Cubic Meter Mining Dump Truck

Steel Grade:Q345b or High Tensile Steel 610 and 700



Shape of Dump Body:Square Shape or U-Shape Mining Dump Truck

Driving Type:LHD or Rhd Mining Tipper Truck



Cabin:with One Sleeper or Without Sleeper

Air Conditioner:with A/C or Without A/C



Tire:14.00-25

Driver Seat:Air-Supporting Driving Seat



Export Markets:Global

Additional Info.

Trademark:CLW BRAND



Packing:Waxed or Naked Before on Board

Standard:ISO, CCC, CE CE, ASME, ASTM, EEC, ASME, ASTM, EEC



Origin:Hubei Suizhou

HS Code:8705909990



Production Capacity:500unit/Month

Product Description



1. Heavy Duty 70T loading capactiy.
2. Off-road design
3. Low price
4. Spare parts is available
5.10 unit with 3% Discount

MODELQDZ3703ZH38QDZ3703ZH36
Chassis modelZZ5707S3840AJZZ5707S3640AJ
Wheel base(mm)3800+15003600+1500
Body dimension(mm)5800×3100×18005500×3100×1800
Overall dimension(mm)8600×3300×41008400×3300×4100
Driving type6×4
Engine modelWD615.47 SINOTRUK Euro II
CabHW7D
TransimissionHW19710
Brake430mm diaphragm spring clutch
Tyre14.00-25
Front axleHF12
Driving axlesAC26
SteeringZF8098
Gross vehicle weight(Kg)7500073000
Rated loading capacity(Kg)5200050000
Dead weight(Kg)2300023000
Rated engine power(Kw/r/min)273/2200
Displacement(ml)9726
Maximum torque(Nm/r/min)1500/1100-1600
Maximum driving speed(Km/h)50
Maximum turning radius(m)22
Tipping typeFront tipping
Tipping angle of body(°)50
