Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

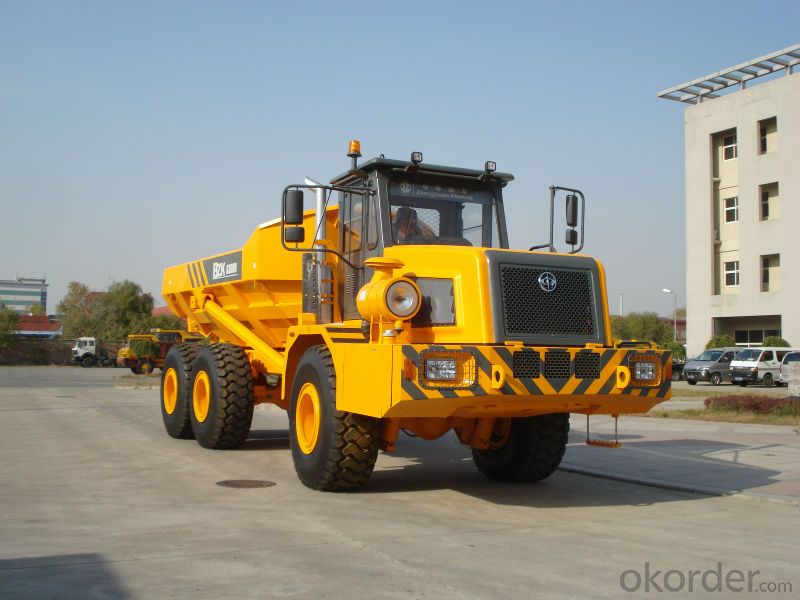

Dump Truck Chinese Company Vc46 with Lowest Price
Model NO.:ISUZU VC46 series
Transmission Type:Manual
Power:Diesel
Load Capacity:41-50t
Emission Standard:Euro 4
Drive Wheel:6×4
Engine Capacity:＞8L
Seats:≤5
Horsepower:251-350hp
Tire Type:Inner Tube
Tire Certification:ISO
Tire Design:Bias
Dumping Type:Front Lifting Style
Condition:New
Engine Make:Isuzu(Made in Japan)
Transmission Make:Fast
Export Markets:Global
Trademark:ISUZU
Packing:Standard Truck Export Package
Standard:ISO9001: 2000
Origin:China
HS Code:870590
Production Capacity:50000 Units/Year
| Vehicle Model | 6×4 | 6×4 | |
| QL1250ULCZ(Y) | QL1250UACZ(Y) | ||
| FXZ77 | FXZ77 | ||
| Dump Truck | Dump Truck | ||
| Vehicle Weight | Gross Vehicle Weight (kg) | 25000 | 25000 |
| Rated contained mass (kg) | 16750 | 16685 | |
| Dead Weight (kg) | 8055 | 8120 | |
| Wheelbase (mm) | 3600+1300 | 4025+1300 | |
| Vehicle Dimensions | Length (mm) | 7655 | 8440 |
| Width (mm) | 2490 | 2490 | |
| High (mm) | 3025 | 3025 | |
| Engine | Model | 6UZ1No OptionalTCG40 | 6UZ1No OptionalTCG40 |
| Power (kw(hp)/rpm) | 257kw(350hp)/2000RPM | 257kw(350hp)/2000RPM | |
| Torque (N.m/rpm) | 1422N.m/1400RPM | 1422N.m/1400RPM | |
| Standard fuel | Diesel | Diesel | |
| Max. design speed(km/h) | 90 | 90 | |
| Standard cab ride | 3 | 3 | |
| Tyre | 11.00No Optional20 18PR | 11.00No Optional20 18PR | |
| Transmission | 12JS160TA(12 speeds) | Optional | Optional |
| 9JS150TANo OptionalB(9 speeds) | Standard | Standard | |
| Dimensions of Frame Section | 320×90×8 | 320×90×8 | |
| Front axle model | F075 | F075 | |
| Rear axle model | RT210 | RT210 | |
| Fuel tank capacity | 400L | 400L | |
| PTO | Standard | Standard | |
| Cab suspension | Spring type | Standard | Standard |
| Air suspension | Optional | Optional | |
| Driver's Seat | Ordinary seat | Standard | Standard |
| Air suspension seat | Optional | Optional | |
| Gear Ratio of rear axle | 3.9 | Optional | Optional |
| 4.1 | Optional | Optional | |
| 4.3 | Optional | Optional | |
| 4.555 | Optional | Optional | |
| 5.571 | Standard | Standard | |
| 5.428 | No Optional | No Optional | |
| Tyre | 11.00No Optional20 18PR(Bias tires) | Standard | Standard |
| 11.00No Optional20 16PR(Bias tires) | No Optional | No Optional | |
| 11.00R20 18PR(Radial tire) | No Optional | No Optional | |
| 11.00R20 16PR(Radial tire) | No Optional | No Optional | |
| 295/80R22.5 18PR(Tubeless tire) | No Optional | No Optional | |
| Spare tire | Standard | Standard | |
| ABS | Standard | Standard | |
| Central locking | Standard | Standard | |
| Automatic windows | Standard | Standard | |
| Air conditioning | Standard | Standard | |
| Tachograph | Standard | Standard | |
| Battery | 115F51(N120) | Standard | Standard |
| 145G51(N150) | Optional | Optional | |
| Shroud | Optional | Optional | |
| Widening bumper | Optional | Optional | |
