Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

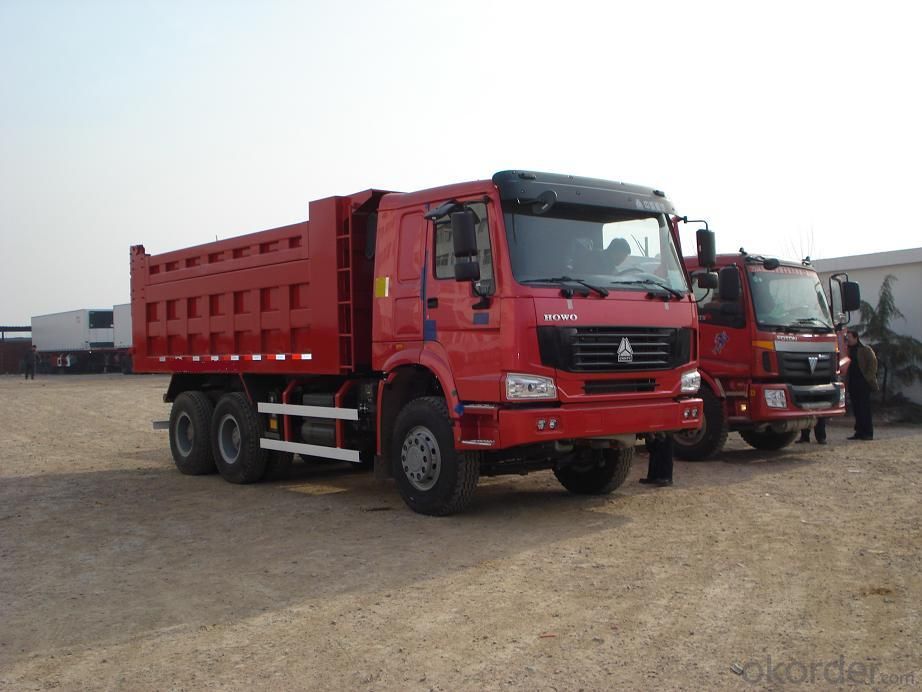

Dump Truck Big Power 12 Wheels 8*4 Mining
Product Details
Model NO.:H08
Transmission Type:Manual
Power:Diesel
Load Capacity:25t
Emission Standard:Euro 3
Drive Wheel:4WD
Seats:≤5
Tire Type:Inner Tube
Tire Certification:ISO
Tire Design:Radial
Condition:New
Truck Type:Dump Truck
Type:Dump Truck
Export Markets:Global
Trademark:CAMC
Packing:Rolling Ship
Origin:China
Production Capacity:80000
CAMC 8× 4 Heavy-duty Dump Truck
Engine brand:Cummins,Weichai,Shangchai,Hino,Hangfa,Sino,etc
Power:340~420hp
Transmission:FAST,ZF
Deck size:7200~8500*2300*1200~1700
Cabin:Euro or Hitachi
Drive:right hand/left hand
Number of axles:4
Number of wheels:12+1
Axles:Front 7.5 tons
| Manufacturer | Anhui Hualing Automobile Group Co., Ltd. (CAMC) | ||
| Vehicle Type | Dump Truck | Trade-mark(Brand) | Hualing Star |
| Vehicle Model | HN3310P38C3M | Color | White |
| Engine Brand | DF Cummins | Engine Model | L375 20 |
| Fuel Type | Diesel Oil | Displacement Standard | GB3847-2004 |
| GB17691-2001 | |||
| Displacement/ power(ml/kw) | 8900/273 | Emission Standard | Euro III |
| Steering | steering Wheel | Driving Model | Left-hand |
| Transmission Type | 9JS150T | Transmission Brand | FAST GEAR |
| Tread(mm) | 2065/2065/1860/1860 | Tire Number | 12+1 |
| Tire Specification | 12.00R20 | Number of Plate Spring(F/R) | 9/12 |
| Wheel Base(mm) | 1850+3370+1350 | Number of Axle | 4 |
| Overall Dimensio(L× W× H)(mm) | 9880× 2495× 3360 | Packing Box Inside Dimension(L× W× H)(mm) | 7000× 2300× 1500 |
| GVW(kg) | 32000 | Rated Payload (kg) | 15955 |
| Kerb Mass(kg) | 14850 | Ratio of Payload and Kerb Mass | 1.09 |
| Crew | 3 | Mini. Ground Clearance | 255mm |
| Max. Speed(km/h) | 75 | Date of Production | the Update |
| Remarks | Including air conditioner, mp3 player, Hitachi steering device. We can produce the truck you need according to your special requirements. | ||
