Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month
Dump Truck 6X4 LHD Diesel Engine Zz3257
Model NO.:VL3257
Transmission Type:Manual
Power:Diesel
Load Capacity:21-30t
Emission Standard:Euro 2
Drive Wheel:6×4
Engine Capacity:4-6L
Seats:≤5
Horsepower:251-350hp
Tire Type:Inner Tube
Tire Certification:ECE
Tire Design:Radial
Dumping Type:Front Lifting Style
Condition:New
Fuel:Diesel
Certification:ISO9000, CCC
Engine Type:4 Stroke
Volume:10000-20000L
Type:Dump Truck
Payload:30t
Export Markets:Global
Trademark:VELDLION
Packing:Nude Package or According to Your Requests
Standard:CE, ISO9001: 2000
Origin:China
HS Code:8704230090
Production Capacity:300 Units/Month
1. Quick Details of the 6X4 LHD Dump Truck:
(1) The dump truck are mainly used for sand, rocks, and gravel transportation.
(2) Gross weight: 25000kg
(3) Overall Dimension: 8240× 2500× 3350mm
(4) Max Loading Weight: 30000kg
(5) Drive Mode: LHD/RHD, Diesel Engine
We can offer 4x2, 6x4, 8x4, Dongfeng, Sinotruck, FOTON, SHACAN, FAW, CAMC, ISUZU, JMC, dump trucks.

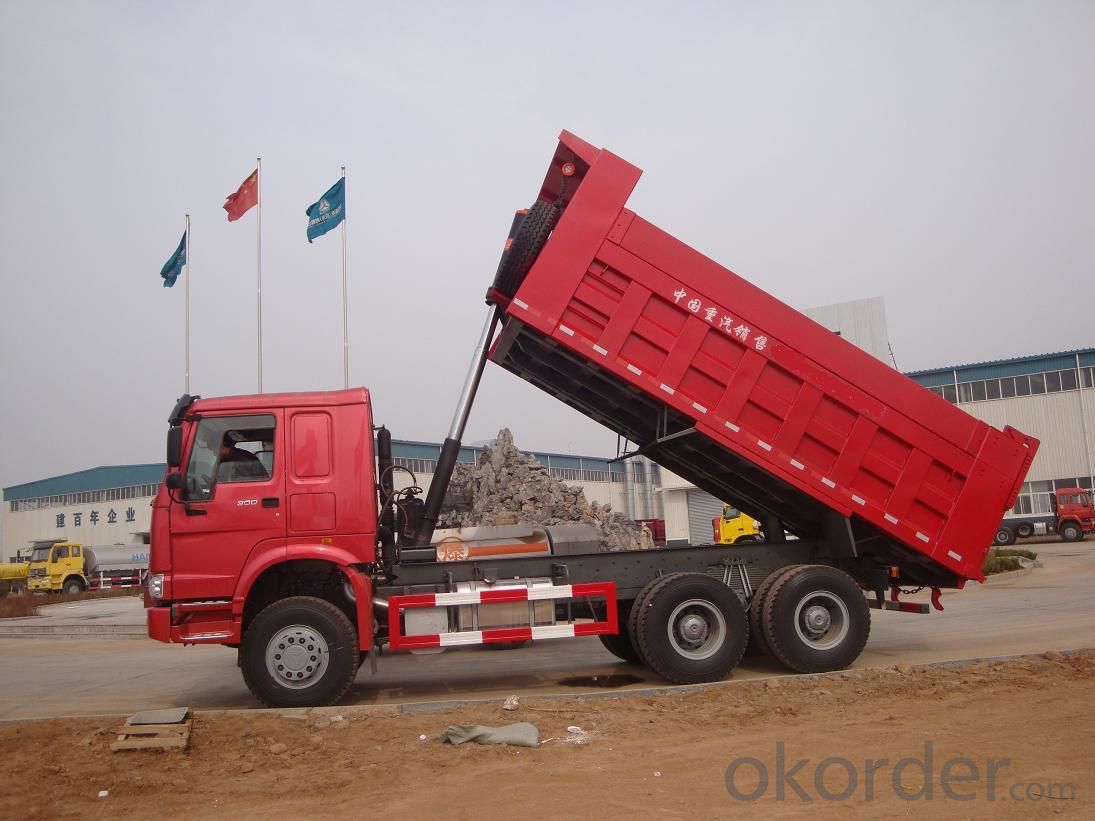

More photos for your reference:
2. Company introduce
HUBEI VELDLION MACHINERY CO., Ltd is an authorized dump truck manufacturer. We are specialized in the production of a variety of special-purpose vehicles.
Creating value for our customers is our company's concept. Welcome to enquiry from us, Let's our sales team make you more great in this field.
Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
| Product | Dump truck | ||
| Model | ZZ3257M4147C | ||
| Chassis Model /Manufacturer | ZZ3257M4147C/ Sinotruk HOWO | ||
| Overall Dimension | Length× Width× Height | 8240× 2500× 3350 mm | |
| Box size | Length× Width× Height | 5600*2300*1100 mm | |
| Total Mass | 25000Kg | ||
| Max Payload | 30000 Kg | ||
| Kerb Weight | 12480Kg | ||
| The parameters of chassis | |||
| Chassis Model /Manufacturer | ZZ3257M4147C/ Sinotruk HOWO | ||
| driving type | 6*4(Left hand driver) | ||
| Cab type | single row | ||
| Engine | Manufacturer : | China National Heavy Duty Truck Group Company Limited | |
| Model | WD615.97E | ||
| Rated Power | 266HP | ||
| Maximum power | 195(KW) | ||
| Displacement | 9726ML | ||
| Fuel type | Diesel oil | ||
| Type | Straight six-cylinder, intercooling, Internal EGR | ||
| Wheel base | 3625+1350mm | ||
| Front axle | 7T front axle | ||
| Rear axle | Double 18T rear axle | ||
| Front/Rear wheel tread | 2022/1830mm | ||
| The number of leaf spring | 10/12 | ||
| Tyre | 11.00-20R | ||
| The number of tyre | 10+1(spare tyre) | ||
| A/C Air Conditioning | With Air-Condition | ||
| Max Speed | 75Km/h | ||
| The parameters of box | |||
| Box size | 5600*2300*1100 mm | ||
| Material of Box | Q235B quality carbon steel | ||
| Floor/edge thickness | 8mm/6mm (optional) | ||
| Color of the Box | According to your documents | ||
