Dump Truck 6X4 340HP 15cbm-20cbm Front Tipping Tipper Truck

Loading Port:Shanghai

Payment Terms:TT OR LC

Min Order Qty:1 PCS

Supply Capability:1500 PCS/month

Product Description:

Dump Truck 6X4 340HP 15cbm-20cbm Front Tipping Tipper Truck

Product Details

Basic Info.

Model NO.:ND5250ZLJZ04



Transmission Type:Manual

Power:Diesel



Load Capacity:31-40t

Emission Standard:Euro 2



Drive Wheel:6×4

Engine Capacity:>8L



Seats:≤5

Horsepower:251-350hp



Tire Type:Inner Tube

Tire Certification:ISO



Tire Design:Radial

Dumping Type:Front Lifting Style



Condition:New

Tipping Type:Front Tipping or Middle Tipping Type



Volume of Body:15cbm, 16cbm, 18cbm, 20cbm

Steel Grade:Q345b or High Tensile Steel 610 and 700



Shape of Tipping Body:Square Shape or U-Shape

Brand Name:Beiben Dump Truck, Beiben Tipper Truck



No.of Sleeper:with One Sleeper or Without Sleeper

Air Conditioner:with A/C or Without A/C



Driving Type:LHD or Rhd Beiben Dump Truck Beiben Tipper Truck

Driver Seat:Air-Supporting Driving Seat



Brand of Hydraulic Systerm:Hyva or Chinese Famous Brand

Export Markets:Global

Additional Info.

Trademark:CLW



Packing:Nake and Waxed Before on Board

Standard:CCC and ISO9001



Origin:Hubei

HS Code:8704230090



Production Capacity:500unit/Month

Product Description


Specification:

1. Engine: Wei Chai, 340hp

2. The super quality of Beiben Brand(the copy of benz technology)and the competitive price.

3. High quality heavy load capacity(30Ton-50Ton)

Beiben 6X4 LHD&Rhd 340HP 15cbm-20cbm Front tipping U-Shape Tipper/Dump Truck

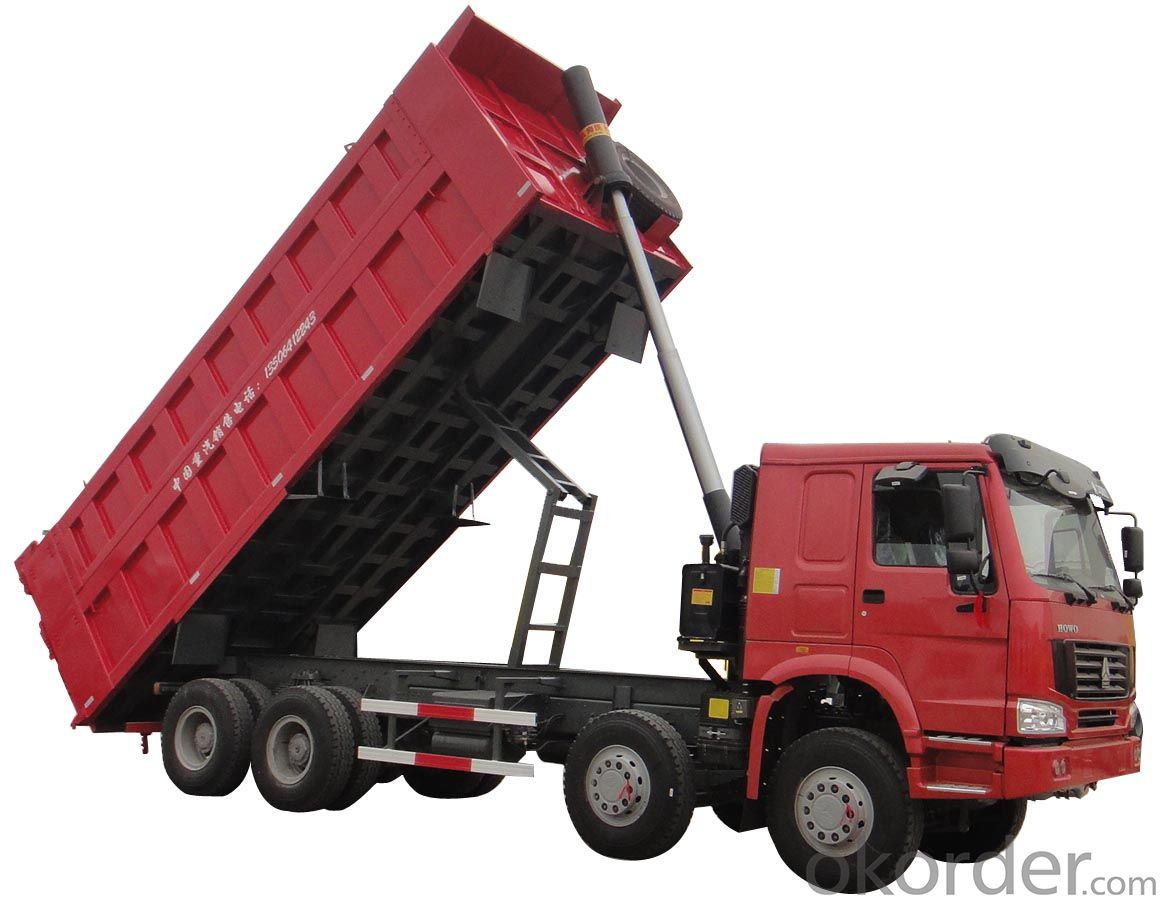

The detailed pictures as below:

Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment.

LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.



Drive type
Beiben 6X4 LHD&Rhd 340HP 15cbm-20cbm Front tipping U-Shape Tipper/Dump Truck

Steering wheel position

  Left hand drive or right hand drive

Work conditions

Standard type

Vehicle model

ND5250ZLJZ04

Resourse No.

3251DPPJA-00ZA03

Cab

 flat roof



   dimension

   Wheelbase(mm)

3800+1450

Overall dimensions(L*W*H)

9672*2495*3410



   Mass parameter

Chassis kerb weight(kg)

12420

   GVW(kg)

32000

Complete vehicle

   performance

Maximum speed(km/h)

75

Maximumclimbing capacity,%

30





     Engine

       Model

Wei Chai, 340hp

   Displacement(L)

9.726

   Max power(ps/rpm)
340(2200)

Maxtorque (Nm/rpm)

1250(1200-1500)

     Emission

Euro2

              Transmission

12JS160T

               Tire

12.00R20

               Steering Gear

ZF8098

               Fuel tank

400L Iron
