Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

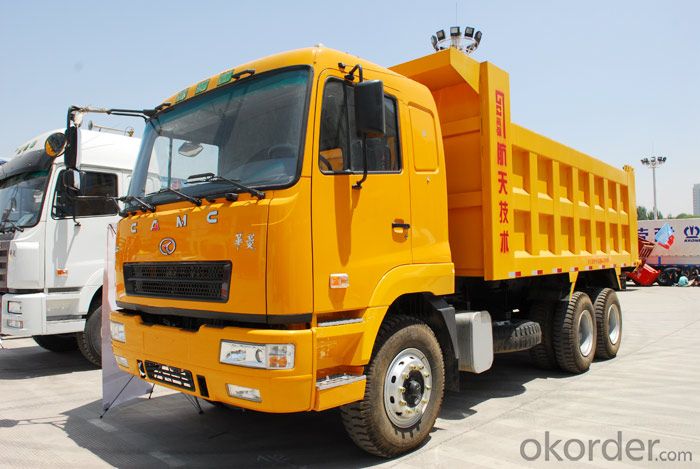

Dump Truck 6*4 Diesel Heavy Truck Tipper 10 Wheels
Product Details
Model NO.:HN3250B34C6M4
Transmission Type:Manual
Power:Diesel
Load Capacity:25t
Emission Standard:Euro 2/3/4/5
Drive Wheel:6×4
Engine Capacity:＞8L
Seats:≤5
Horsepower:251-350hp
Tire Type:Inner Tube
Tire Certification:ISO
Tire Design:Radial
Dumping Type:Front Lifting Style
Condition:New
Truck Type:Dump Truck
Type:Dump Truck
Export Markets:Global
Trademark:CAMC
Packing:by Container/Nude Packing/Roro Ship
Standard:ISO
Origin:Anhui, China
HS Code:8704
Production Capacity:50000
Dump Truck
Gvw: 16, 19, 22, 25, 31t
Number of axles: Two axles, three axles, four axles
Type of cabin: Flat roof, high roof, wide body and narrow body
Engine power: 180~460PS(cummins 345-420, hino 350-380, weichai 240-460, wuxi diesel engine 180-320, dongfeng
Cummins 185-375 and so on)
Gearbox: 6-16(fast, zf, mitsubishi)
Steering system: Zj110 zf8098
Frame: 976 double reduce section, high strength, double and single reduction axle, air suspension
Cargo body: Corrugated plate type, net type, stake type
Note: Cabin, engine, wheelbase, tyre, gearbox and driving axle have options.
| No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Cabin | Flat roof, high roof, long type, short type, dome are optional | |||||||
| Engine | WP10.290N | WP10.336N | WP10.375N | ISLE290 30 | ISME345 30 | P11C-UH | P11C-UJ | WD615.93 |
| Power (PS) | 290 | 336 | 375 | 290 | 345 | 325 | 350 | 290 |
| Length (mm) | 8870 | 10710 | 11170 | 12270 | 10970 | 11300 | 12270 | 12270 |
| Width (mm) | 2496 | 2496 | 2496 | 2496 | 2496 | 2496 | 2496 | 2496 |
| Height (mm) | 3222 | 3222 | 3540 | 3222 | 3540 | 3222 | 3540 | 3222 |
| Length of cargo body (mm) | 6200 | 7900 | 8500 | 9600 | 8300 | 9600 | 9600 | 9600 |
| Width of cargo body (mm) | 2300 | 2340 | 2300 | 2300 | 2300 | 2300 | 2300 | 2300 |
| Height of cargo body (mm) | 600 | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
| Number of axles | 2 | 3 | 3 | 3 | 3 | 3 | 4 | 4 |
| Wheelbase (mm) | 4800 | 3200+1350 | 3600+1350 | 3200+ 1350 | 3600+1350 | 3200+1350 | 1850+3370+1350 | 1850+3370+1350 |
| Tyre | 11.00/12.00 | |||||||
| GVW (kg) | 16000 | 25000 | 25000 | 25000 | 16100 | 21000 | 31000 | 31000 |
| Payload (kg) | 7805 | 15290 | 13955 | 12955 | 7900 | 11005 | 17995 | 17995 |
| Kerbmass (kg) | 8000 | 9515 | 10850 | 11850 | 8005 | 9800 | 12810 | 12810 |
| Maximum speed (km/h) | 85 | 85 | 85 | 90 | 90 | 88 | 88 | 88 |
