Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

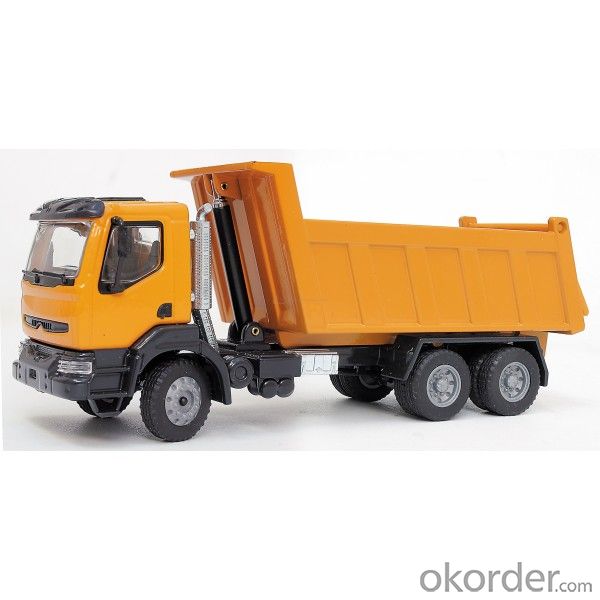

Dump Truck 380HP 25ton 18cbm for Genlyon for Africa
Product Details
Transmission Type:Manual
Power:Diesel
Load Capacity:25t
Emission Standard:Euro 3
Drive Wheel:6×4
Engine Capacity:＞8L
Seats:≤5
Horsepower:351-450hp
Tire Design:Radial
Dumping Type:Front Lifting Style
Condition:New
Truck Type:Dump Truck
Engine Brand:Cursor
Transmission:Rt11509c
Steering:Zf Technology
Export Markets:Global
Trademark:hongyan iveco genlyon
Packing:Nude Packing, Roro Vessel, Bulk Vessel,
Origin:Chongqing, China
Production Capacity:3000 Units Per Month
| Brand | IVECO_HONGAYN (6*4) |
| Type | Dump Truck |
| Model | (Drive forms 6x4) LHD |
| Appearance Dimension:Length (mm) | 8115 |
| Appearance Dimension:Width(mm) | 2500 |
| Appearance Dimension:Height (mm) | 3510 |
| Engine | CURSOR-9 380HP,EURO-3 |
| Gear Box | RT11509C FROM FULLER technology |
| Steering | ZF technology full hydraulic power assisted |
| Clutch | 420mm type single plate power boosted. |
| CAB | IVECO-STRALIS CABIN |
| Max speed (km/h) | 75 |
| Empty Weight (kg) | 12010 |
| Front axle load (kg) | 6500 |
| Rear axle load (kg) | full cast reinforcement double reduce rear axle, no welding. 16000kgX2 |
| Rear axle gear rate. | 5.73:1 |
| Fuel type | Diesel |
| Fuel tank capacity | 350L |
| Exhaust standard | Euro 3 |
| Number of axle | 3 |
| Wheel base (mm) | 3550+1400(mm) |
| Dimension:(mm) | 8115×2500×3510(mm) |
| Number of suspension spring | 9/12 |
| Number of tires | 10+1 |
| Type of tire | 12.00R20 Radial tire 11units |
| Longitudinal beam | 317mm Double 8mm+8mm, |
| lift cylinder system | Middle tipping system |
| Dimensions of lorry body | 5200×2300×1500(mm) 17.94CBM |
| Thickness of body steel | Floor 8 mm side 6mm |
