Ductile Iron Cast Iron Pipe of China DN400-DN1000 EN545/EN598/ISO2531

Product Description:

1,Ductile Iron Pipe Description :

1) Pipes confirm to ISO2531,K9 class,T type joint,6m long,with inside cements lining conform to ISO4179,  outside Zinc spraying(130g/m2) and bitumen coating(70μm) conform to ISO8179.

2) Pipe ends: Spigot and socket ends, with 100% SBR rubber gaskets accoding to ISO4633

3) we can do third party inspection according to customer's request.

4) Our products have been sold to many international market,such as Middle East and South East Asia and Africa.

2,Main Features of the Ductile Iron Pipe:

Material: Ductile iron grade 500-7/ 450-10 in accordance with ISO1083

Standard: ISO 2531, EN545, EN598, ANSI, AWWA

Certificate: ISO9001, ISO14001, SGS, NSF, WRAS

Test: In accordance with ISO 2531 / EN 545 / EN598 and 100% water pressure test

Length: 6m or cut into 5.6m, 5.7m, 5.8m

Internal Lining: Cement, conform to ISO4179

External coating: Zinc + Bitumen, conform to ISO8179

Rubber: NBR, SBR, EPDM according to ISO4633 / EN681.1

Note: The gaskets, bolts & nuts are supplied respectively as your special requirement

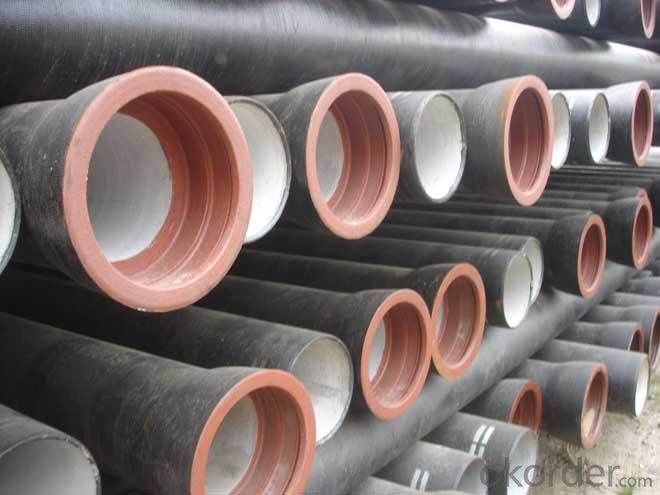

3,Ductile Iron Pipe Images:

4. Ductile Iron Pipe  Specification

Internal lining:      ductile iron pipes shall have an internal cement mortar lining in acc with ISO4179.

External coating:  ductile iron pipes shall be externally coated with metallic zinc spray plus a further layer of resin painting to ISO8179.

Gasket:              100% SBR/NBR/EPDM rubber gasket in accordance with ISO4633.

Packing:             ductile iron pipes from DN100 to DN300 be bundled with steel belts, others are in bulk.

Payment term:    L/C, T/T.
Packing:             In bulk vessel or in container

5.FAQ:

We have organized several common questions for our clients，may help you sincerely：

1.Q: Why would you choose ductile iron pipe rather than other pipe materials?

 A:The reasons are obvious for that not only ductile iron pipe possesses the inherent strength and flexibility of ductile iron, combined with proven corrosion protection systems, but also the cost savings can be achieved from design to installation and commissioning.

 2.Q:Why can you guarantee the inner of pipes can’t be corroded?

 A: High alumina cement mortar lining and sulphate-resistant cement mortar lining. These two special linings are applicable to inner anti-corrosion for sewage pipes, improving resistance to erosion of the sewage components.
