Loading Port:Tianjin
Payment Terms:TT OR LC
Min Order Qty:10000 pc
Supply Capability:300000 pc/month
Specification & Introduction

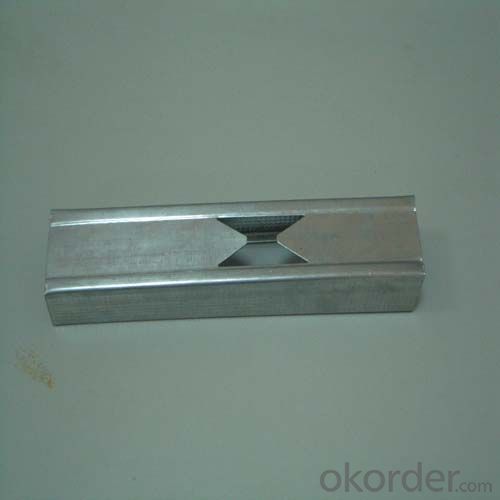

Galvanized Drywall Track and Studs Light Steel Keel Furring
DESCRIPTION | Size(mm) | Length(mm) |
25mm Top Cross Rail | 25*21*0.55 | 2900/3000/3600/4800/6000 |
25mm Top Cross Rail | 25*21*0.75 | 2900/3000 3600/4800/6000 |
16mm Furring Channel Track | 16*20*30*0.55 | 3000 |
28mm Furring Channel Track | 28*20*30*0.55 | 3000 |
16mm Ceiling Batten | 36*16*0.5 | 2900/3000 4800/6000 |
22mm Cyclonic Ceiling Batten | 35*22*68*0.55 | 2900/3000 4800/6000 |
40mm Ceiling Batten | 35*40*70*0.55 | 4800/6000 |
16mm Furring Channel | 16*38*0.55 | 3000/3600/4800/6000 |
28mm Furring Channel | 28*38*0.55 | 3000/3600/4800/6000 |
51mm Stud | 51*33.5*35.5*0.55/0.75 | 2400/2700/3000/3600/4200/4800/6000 |
64mm Stud | 64*33.5*35.5*0.55/0.75/1.15 | 2400/2700/3000/3600/4200/4800/6000 |
76mm Stud | 76*33.5*35.5*0.55/0.75/1.15 | 2400/2700/3000/3600/4200/4800/6000 |
92mm Stud | 92*33.5*35.5*0.55/0.75/1.15 | 2400/2700/3000/3600/4200/4800/6000 |
150mm Stud | 150*33.5*35.5*0.75/1.15 | 3600/4800/6000/7200 |
51mm Track | 51 * 32/50 * 0.55/0.75 | 3000 |
64mm Track | 64 * 32/50 * 0.55/0.75/1.15 | 3000 |
76mm Track | 76 * 32/50 * 0.55/0.75/1.15 | 3000 |
92mm Track | 92 * 32/50 * 0.55/0.75/1.15 | 3000 |
150mm Track | 150 * 32/50 * 0.75/1.15 | 3000 |
Leg Stopping Angle 6mm | 30*6*0.4 | 3000 |
Leg Stopping Angle 10mm | 30*10*0.4 | 3000 |
Leg Stopping Angle 13mm | 30*13*0.4 | 3000 |
Leg Stopping Angle 16mm | 30*16*0.4 | 3000 |
External Angle 90 | 30*30*0.4 | 2400/2700/3000/3600 |
Shadowline stopping angle | 10*10*30*0.4 | 3000 |
DESCRIPTION | Thicknes |
Adjustable Direct Fix | 1.5mm |
Beta Fix | 1.5mm |
Long Beta Fix | 1.5mm |
Side mounted TCR Suspension Clip | 0.8mm |
Locking Key | 0.7mm |
TCR Suspension Clip | 0.8mm |
5mm Rod Suspension | 5mm |
Direct Fix Clip -150 long | 1.0mm |
Direct Fix Clip-92 | 1.0mm |
Right Angle Rod Bracket | 1.2mm |
R0d Brackets | 1.2mm |
Ceiling Bracket | 1.6mm |
Floor Pin | |
Direct Fixing Clips—Screw Fix | 1.2mm |
Direct Fixing Clips-Concrete | 1.2mm |
Direct Fixing Clips 175mm | 1.0mm |
Direct Fixing Clips 75mm | 1.0mm |
Slotted Web Cleat | 3mm |
Advantages of Galvanized Drywall Track and Studs :
1. Our products’ raw material is high quality hot dipped zinc galvanized steel strip, absolute fireproof and heat insulation, waterproof and antirust, anticorrosive , high durability
2.Hot dipped zinc galvanized stee strip zinc coating is 80-275gsm.
3. Double sized galvanization volume make sure that the plaster bone is corrupt and rust resistance.
4. Warm sales in Middle East , Africa , Australia, Malaysia ,and America , which have enjoyed an excellent reputation with high quality and services.
5.Manufacture the special specification products for customers
6. High quality raw material guarantees the light steel keel of life and good performance of construction.
7. Possese own ten precision cold rolled steel strip production line.
Certificates
ISO 9001:2000 Quality management system.
Product Show
FAQ
1.Sample: small sample can be offered by free
2.OEM: OEM is accepted
3.MOQ: small order is ok
4.Test: any third party is accepted to test
5.Factory: Can visit factory any time
6.Delivery Time: small order is within 7days or according to your order
