Drywall Angle for Metal Building Materials

Loading Port:Tianjin

Payment Terms:TT OR LC

Min Order Qty:10000 pc

Supply Capability:300000 pc/month

Product Description:

Introduction

1,Q195/Q235 galvanized steel.

2,Zinc. can be from 40g-270g.

What the specification of our Drywall/ceiling metal stud(profile)

Ceiling system:

Production name	Item	Size(mm)
Covering Channel	CD60 CD 50	60×27 50×19
Supporting Channel	UD60 UD 50	60×27 50×15
Main channel		38x12/38x10/50x15/60x26
Furring		68x35x22/27x19x7mm
Wall angle		25x25/30x30/38x38

Drywall system specification:

Production name

Item

Size(mm)

Vertical channel(Stud)

CU(CW)

50x50

75x50

100x50

Horizontal channel(Track)

QU(UW)

50x40

75x40

100x40

Remark & Feature:

1), Above are popular size, we also produce many of other size which are according to customers’ request.

2), Thickness(from 0.3mm-2mm) and length can be provided by customers’ request.

Our Sunshine Brand metal stud advantage:

1.Our products’ raw material is high quality hot dipped zinc galvanized steel strip, absolute fireproof and heat insulation, waterproof and antirust, anticorrosive , high durability

2. Hot dipped zinc galvanized steel strip zinc coating is 80-180g/m2.

3.Selling well in Middle East , Africa ,Australia, Europe, America and South America, where the products have enjoyed an excellent reputation with high quality and services

4. manufacture the special specification products for customers

5.Advanced equipment and technology can make sure the products exactly size, high quality

6.ISO9001-2008 quality management system, SGS certificate system.

Shipping&Business terms:

1,FOB,CFR,CIF business term, 10-30 days for delivery time; Customers specifying freight forwarders or negotiable shipping methods!

2,Payment TERM:30%T/T deposit, 70%T/T against BL copy; Irrevocable L/C at sight;

3,Quantity can be customized.

Products Show

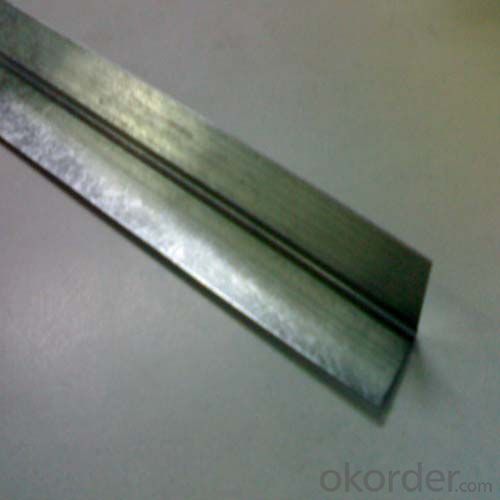

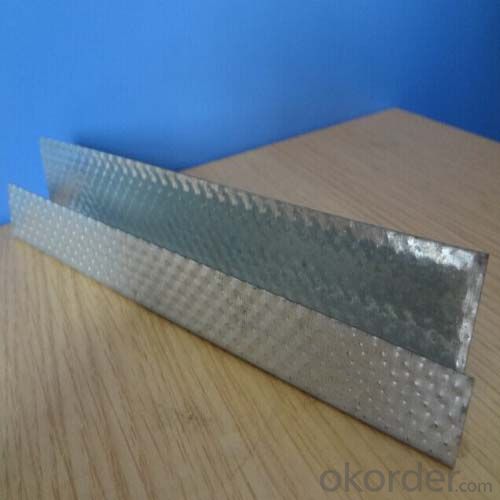

Drywall Angle for Metal Building Materials
