Drying Machine for Packaging Industry Use
1. Product Description:
This drying machine is mainly used in the beverage production line for dying all beverage packages (bottles or cans etc.) before print code and package , to ensure the effect of code spraying and keep the surface of back-end packaging products dry.
2. Product Features:
1) This machine is composed of lift, transfer table, can pushing part, roller 1, roller 2 and operation platform.
2) Elevating part
3) Lift is used for lifting pallets to the height of transfer table and pushing cans to the transfer table by can push parts.
4) Transfer table
5) This part is used for can storage and transport.
6) Can pushing parts
7) It is used for pushing cans to transfer table from pallet.
3. Product Parameters:
DRYING MACHINE | |
Production capacity | 800Can/min |
Total power | 10kw |
Total weight | 200kg |
Power supply | 3X380VX50Hz |
Outline dimensions | 1700x600x1250mm(LxWxH) |
Number of air blades | 6 Piece |
Number of vortex air pumps | 2 Set |
Vortex air pump | 4.0kw,530m³/h,200mbar or 5.5kw,530m³/h,300mbar |
4. FAQ:
Q1: What is your delivery time?
A: Generally, the delivery time is 45-60 days after receive the deposit, big production line may take more time.
Q2: What is the payment term?
A: We accept both T/T and L/C. Most customers pay by T/T.
Q3: What kind of after-sevices do you provide?
A: If it is not big problem, we can solve it by emails, phone etc. If it can’t work, our engineers can go to overseas to install and adjust the machine and solve the problems.

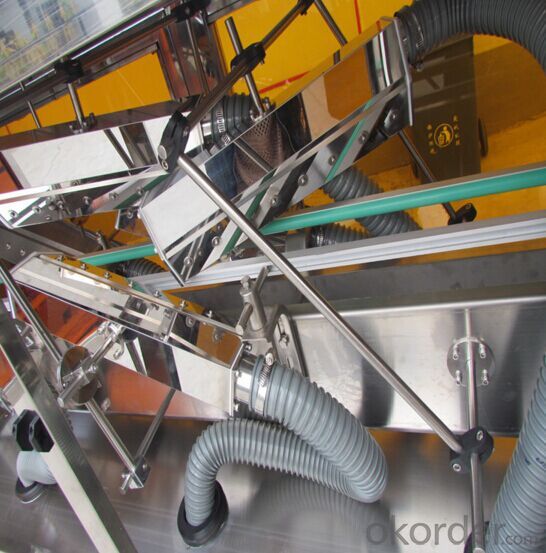

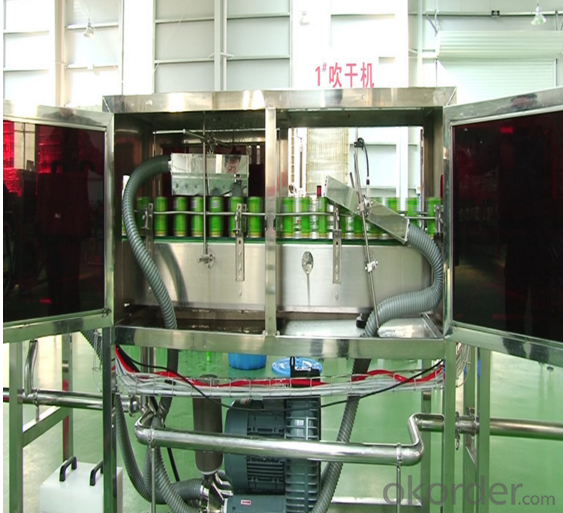

5. Product Pictures:
