1. Structure of Double Glass Mono(Poly) Crystalline Silicon Solar Panel Model CR090M-B
Double glass Mono(Poly) crystalline silicon solar panel(hereinafter refferred as "double glass solar panel" ) has advantage of beautiful apperence and high transmissivity by using the double glass on both sides of the solar panel, compared to the normal crystalline silicon solar panel. So double glass solar panel is widly used in the BIPV and other constructions such as solar intelligent window, solar pavilion and photovoltaic glass roof and wall.
2. Main Features of Double Glass Mono(Poly) Crystalline silicon Solar Panel Model CR090M-B
High-efficient solar cells
High transmissivity low-iron toughened glass
Anodized aluminum frame
Water resistant junction box
Design to meet unique demand of customer
25 year poweroutput warranty

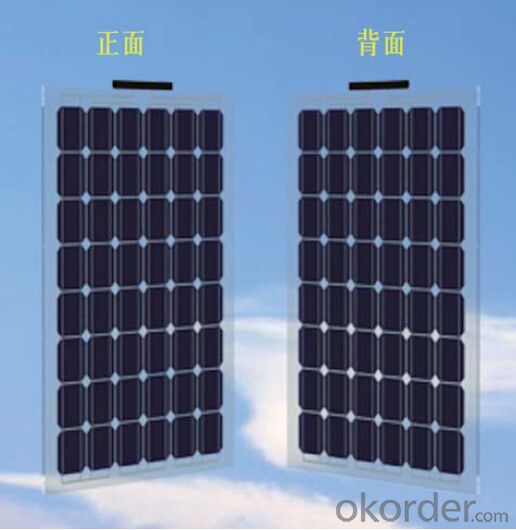

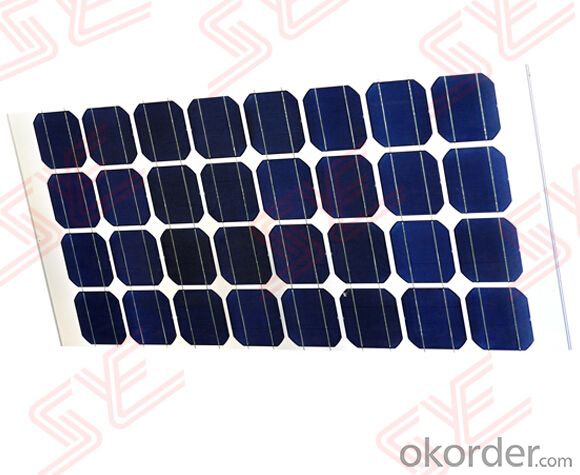

3.Double Glass Mono(Poly) Crystalline silicon Solar Panel Model CR090M-B Images
4. Double Glass Mono(Poly) Crystalline silicon Solar PanelModel CR090M-B Specification
MODEL | CR090M-B |
Maximum Power (Pm) | 90W |
Open-circuit voltage (Voc) | 22.2V |
Short-circuit current (Isc) | 5.29A |
Volatage at Pmax (Vmp) | 18.3V |
Current at Pmax (Imp) | 4.92A |
Maximum system voltage | 1000VDC |
Operating temperature | -40℃ to +60℃ |
Dimension of module(mm) | 1574×802×8 |
Weight of module (kg) | 23.0 |
Power tolerance | ±5% |
5. FAQ
(1) Why the double glass solar panel is more expessive than normal solar panel?
Because manufacturerer should face the technical difficulty in encapsulation process, and it costs more to make a lot of experiment to find a good packaging technology and get an excellent packaging method.
(2) How long for the manufacture process?
It depends on the payment terms, for we need to arrange the purchasing materials especially for the glass. If possible we prefer 100% by T/T to other payment terms, and we will put into production as soon as possible.
(3) Can we have test report of the solar panels?
Surely you can, once we have finished quality test after production, we have the technical details for the test report.
