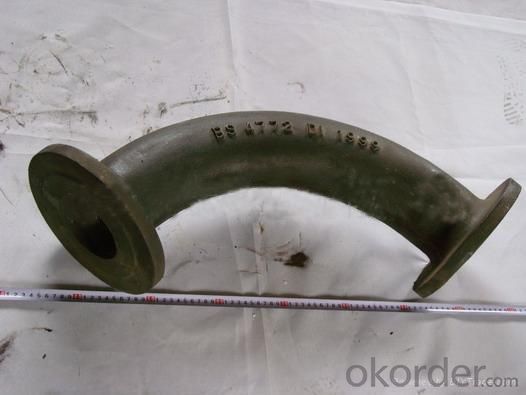

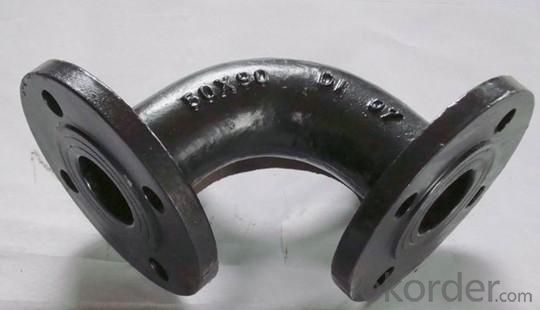

Double Flanged 90°Long Radius Bend Made In China

Product Description:

Specifications of Double Flanged 90°Long Radius Bend Made In China

Material: Ductile Iron
Standard: ISO2531 BS/EN545
Range: 80mm-2000mm K=12
Standards: ISO2531, EN545, EN598, BS4772
Material: Ductile Iron (Standard GGG500-7)

Lining & Coating:
Internal Lining: Blast Furnace Cement Mortar/ High Alumina Cement Mortar
External Coating:
Metallic+Bituminous Paint/ Polyethylene Sleeve Applied/ Polyurethane or Polyethylene Coating.
Other types of coating or lining may be applied upon request.

Mechanical properties:
Tensile strength >420mpa
Elongation >5%
Hardness<250HB
Proof stress >300mpa

Applications of Double Flanged 90°Long Radius Bend Made In China

Generally speaking, the design of ductile iron pipe fittings is similar to cast iron pipe fittings. Their ends are usually flanged or preferably, sockets.

The greater strength and flexibility of ductile iron make it possible to improve the design of fittings and to reduce their dimensions, which is very helpful to lay water main pipelines in congested urban areas. It also helps to reduce the size of valve chambers, which mainly depends on the space occupied by fittings.

Packaging & Delivery of Double Flanged 90°Long Radius Bend Made In China

* Plywood pallet
* Steel pallet
* As per customers' requirements

Our Advantage of Double Flanged 90°Long Radius Bend Made In China

a. Best Raw material
b. Good service
c. Competitive price
d. Fast delivery
e. High quality products

Payment Terms of Double Flanged 90°Long Radius Bend Made In China

Usually the payment term we do is T/T 30% advanced, after received the copy of the documents and B/L the buyer pay the rest 70% of the total payment. After received all the payment, we mail the original documents with B/L to the buyer.

We also accept D/P at sight and L/C at sight.

It does not mean that we do not accept any other payment terms. We can offer other payment terms based on your requirments after discussed and agreed. So any inquires about payment terms are welcome to be disscussed with us.

It is important to note that different payment terms means different price!
