Loading Port:China Main Port
Payment Terms:TT or L/C
Min Order Qty:100pcs pc
Supply Capability:1000pcs per month pc/month
Packaging Detail: | Neutral color box |
Delivery Detail: | 7-10 days after getting payment money |

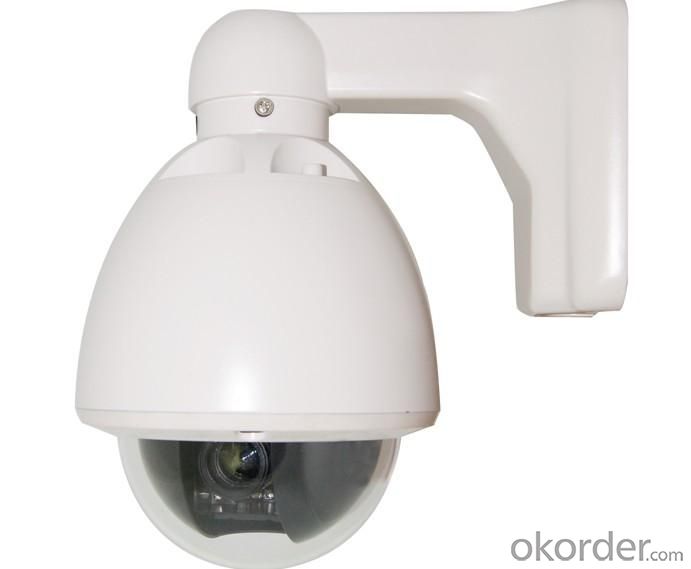

Specification of Dome Camera,PTZ
* PWM function, Adopt multi-angle super power Infrared LED, the brightness of image uniform and soft.
* Adopt LED ARRAY Infrared light source, IR distances can reach 150 M.
* English/Chinese OSD menu;
* Dome ID, baud rate, communication protocol can be set via the controller;
* Supported Protocols : Pelco-D/P; Others on special request;
* 7",Total metal body construction, waterproof IP 66;
* Optional , 4 Alarm inputs and 2 alarm outputs.
*Optional IP module (built in provision);
* Auto tracking function optional
| ||||
Signal System | PAL /NTSC | |||
Focus Model | Auto / Semiautomatic / Manual | |||
Communication | RS-485 | |||
RS-485 Protocols | PELCO_D , PELCO_P | |||
Baud Rate | 1200 bps /2400 bps/4800 bps/9600 bps | |||
Supporting All-in-one Module | Sony, Hitachi, SAMSUNG, CNB,LG, China brand etc. | |||
Cruise Tours | 8 groups | |||
Cruise Points Qty Per | Max.16 points, dwell time user selectable | |||
Pan Speed | 1°~180°/s(1~64 Step free set ) | |||
Preset Speed | 180°/S | |||
Preset Points | 128 Points | |||
Pan Range | 360º | |||
Tilt Range | 1°~100°/s(1~64 Step free set ) | |||
Auto Flip | Horizontal 180°,Vertical 90° | |||
A-B Scan Speed | 5~180°/s (15-64 grade available) | |||
IR Control | Auto / Manual | |||
Menu Language | English/Chinese | |||
Peak Emission Wavelength | 850 | |||
Leds | ¢20=12pcs,¢8=42pcs | |||
Monitor Output | 1.0V[p-p] / 75Ω, PAL、NTSC, BNC | |||
Address | 0-255 | |||
Security | Password protection: configured by the administrator | |||
Privacy Zones (Masking) | Support 2 zones | |||
Heater In Operation | Auto | |||
Alarm Input | 4 inputs | |||
Alarm Output | 2 outputs | |||
Power-off Memory | Support | |||
Park Action | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan | |||
Protection Level | IP66+ | |||
Working Temperature | indoor:(0ºC~+40ºC) outdoor:(-40℃~+60℃) | |||
Power Supply | DC13V 5A(range:DC12V-14V) | |||
Power Consumption | ≤20W | |||
Material | Aluminum alloy | |||
Package | 30.5*32*40CM | |||
Net Weight | 6.5KG | |||
Humidity | ≤95%(no condensation) | |||
Mount Option | Wall Mount; Corner Mount; Indoor pendant mount; Ceiling Mount |
