Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 set
Supply Capability:200 set/month

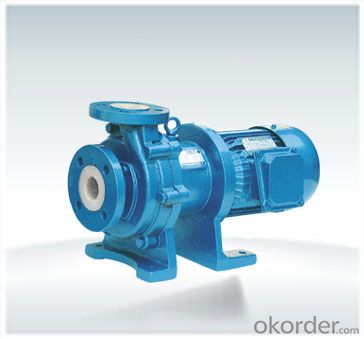

Advantage of DIN Standard Close Coupling End Suction Pump (XAZ)
Easy mantainance&back pullout
Higher efficiency &saving energy
Low noise
Non-leakage
Stabel runing and longer operation life
Save installation space
Exellent Performance
Simple Structure
Low NPSH
General description of DIN Standard Close Coupling End Suction Pump (XAZ)
The pump meeting DIN 24255,EN733;Design pressure up to 1.6MPa; Seal cavities construction is suitable for both mechanical seal and soft packing seal; All the chemical pump parts are stainless steel precision casting and good appearance. To match different liquid application, material can be Cast Iron, Stainless steel and bronze alloyetc.
Technical data of DIN Standard Close Coupling End Suction Pump (XAZ)
Diameter of Discharge Flange: DN32 upto DN250
Capacity:Q:8-1080m3/h
Head:H:5-100m
Max Working Pressure:1.6MPa
Max Operating Temperature:120 degree
Rotation Direction: from the driven end, the pump rotating direction is CW
Solid Grainn: less than 80mg/L
Model meaning of DIN Standard Close Coupling End Suction Pump (XAZ)
XAZ 100/40A
XAZ XAZ Series Close Coupling End Suction Centrifugal Pump
100 - Disharge Diameter (mm)
40 Impeller Diameter divided by 10
A- Impeller Trimmed Code
Applications of DIN Standard Close Coupling End Suction Pump (XAZ)
Civil, Chemical industry, Metallurgy, Light industry.
Such as : Buildings, water works, irrigation, HVAC ; oil processing, Steel industry, silver-smelting, copper-smelting, iron-smelting, Tin-smelting, aluminium -smelting, zinc-smeltingetc non-ferrous metal smelting. Foodstuff, pharmacy,power plant, drink water, clean water, alcohol, desalination of sea water and water treatment.
FAQ of DIN Standard Close Coupling End Suction Pump (XAZ)
1. If I increase the power of the motor, must I also increase the power of the inverter?You must select the size of converter that allows maximum absorption of the electric motor.
2. Do you have pumps with grinders?
Yes, the WQ models.
3. How long is your warranty?
Unless otherwise expressly authorized in writing, by specifying a longer period or different conditions, CNBM states that, for a period of twelve (12) months from delivery date, all Products supplied are free from defects in materials and workmanship, and conform to the applicable specifications. Either the delivery documentation or the invoice must be provided to prove delivery date. In absence of such documents, the production date appearing on the product label may suffice.
