Diesel Generator with Brand-new Cummins Engine from 20kva to 1500kva

Product Description:

1. Cummins electric governor diesel engineJoint-venture brand, headquarter is located in Columbus, Indiana, USA. Cooperation with China factory in Hubei and Chongqing. Dongfeng Cummins power range: 24kw to 220kw, Chongqing Cummins power range: 205kw to 1384kw.
Matured technology, slight volume, large power and low noise.
Good smooth running performance.
Integral module structure design, which makes the total amount of spare parts 25% less than other brand.
Global warranty service: with more than one hundred maintenance shops all over worldwide, it is very easy to find the spare parts and get technology support.

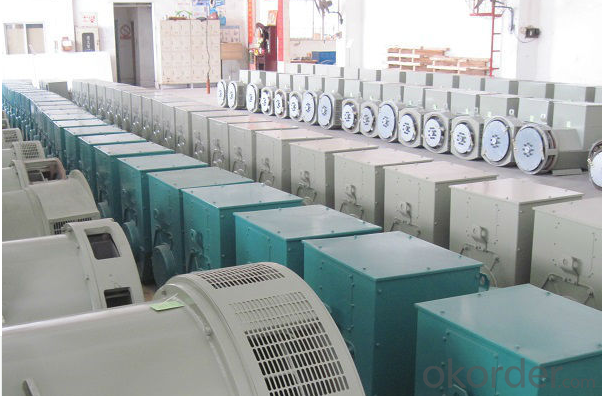

2. AC synchronous stamford alternator :
Our standard generator set match with New age stamford alternator, Leadtech generator, also can match it by customer request.
Brushless single bearing, self-exciting ac synchronous alternator
Three phase, 12 reconnect able leads
Standard with self-exciting system, singel bearing and PMG(permanent magnet generator)optional available
IP21-23 protection grade
Insulation system is Class H
Stators are wound to 2/3 pitch.
Optional accessories available for easy paralleling with mains or other generators
Standard AVR controlled
Manufacture standards: GB755, BS 5000, VDE 0530, NEMA MG1-22, IEC34, CSA C22.2-100 and ASB59

3. Control panel:
Smartgen 6110 & 6120 control system also can use other brand according to customer requirement. Such as, HGM6310, HGM6320, DSE3110, DSE5110, DSE7110 and DSE7210 and etc.
Intelligent LCD display, automatic control, Chinese and English operation interface.
Widely used in all types of generator auto control system for compact structure, advanced circuits, simple connections and high reliability.Using micro-processing technique which can carry out precision measure, constant value adjustment, timing and threshold setting and etc.
Can be adjust from front panel, or use the PC through programming interface, also can use a PC via RSR485 interface and monitoring.High water temperature, low oil pressure, low speed and over load protection

4. ATS(Automatic Transfer switches)
Auto start genset equipped with ATS as an atuo start power system for emergency situation, transfer automatically between main power and genset power.Once the main power failure, the control panel will received the signal to start the genset within 5 seconds, ATS will switch to the load wires to connect genset power supply,and the whole process takes less than 10 seconds
