Die Cast Aluminum 500 Watt Outdoor Led Flood Light Housing

Loading Port:NingBo

Payment Terms:L/C,T/T

Min Order Qty:10 Pcs pc

Supply Capability:20000 Pcs Per Month pc/month

Product Description:

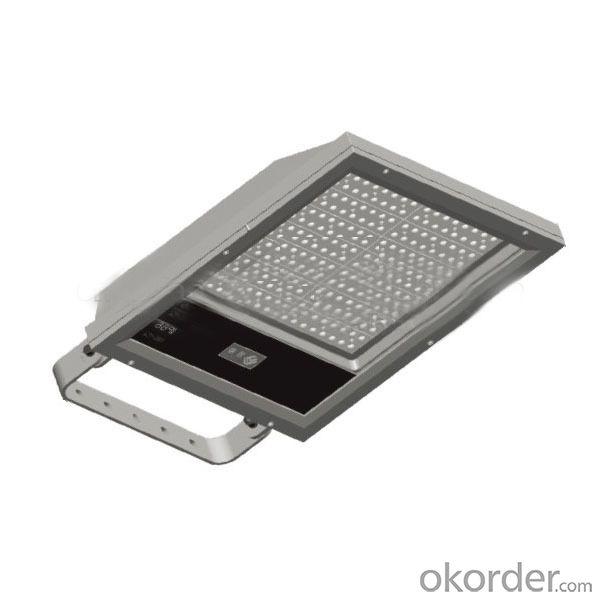

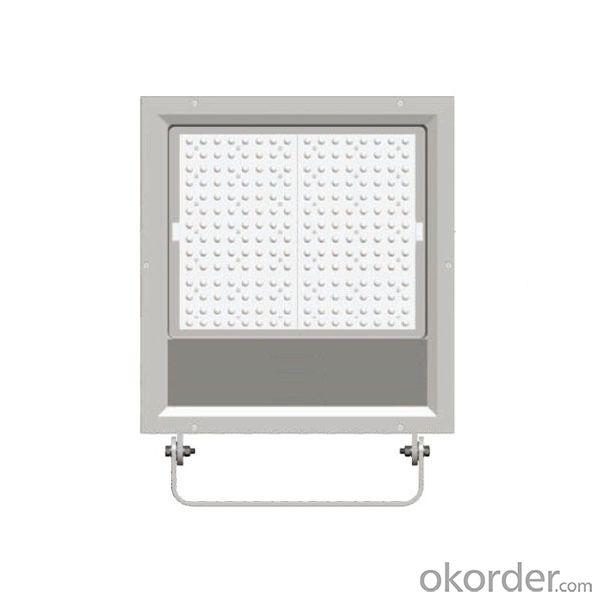

Die cast aluminum 500 watt outdoor led flood light housing



Technical Data

Model No

NTG-LED-71

IP Rating

IP 66

Insulation class

Class I

Voltage

120-277V

Frequency

50-60Hz

Power factor

>0.95

Luminous efficiency

>100lm/w

Operating temperature

-40°C to +55°C

Life Span

>50,000 hrs

Certification

 CE

Production dimensions(mm)

 600*560*105

Net Weight (Max. Watt)

 16kg

 Light Source and LED Driver

 LED Source Brand

 CREE

 LED Driver Brand

 Philips, Inventronics

 Number of LEDs

 224

  LED Current

 700mA

Power Consumpt

 500W

 Nominal Initial Flux*

(*CCT is Cool White @ 25°C)

 50000lm

 CRI

Ra>70

CCT

Warm White (3000 – 3700K)

Neutral White (3700 – 5000K)

Cool White (5000 – 6500K)





Product Feature:

1.High pressure die casting aluminum housing

2.Closure screen in flat tempered clear glass

3.Unique optical design creats consistent distribution

4.Adjustable tile angle design

Product Show:





Our Service:

1.Replay you inquiry in 24 working hours

2.Delivery the goods to our customer all over the world with speed and precision

3.Offer customer the high quality LED lighting





Our Company:

Our company is a national high-tech enterprise undertaking the National 863 Plan. We have more than 130 patents, including invention patens, utility model patents and design patents.

We specialize in manufacturing a complete series of lighting products including LED outdoor lightings, LED drivers, and high pressure sodium lightings.



Our Product= Energy-saving + High Efficiency + Long Life Span

What are you waiting for,just Contact us, then orde it!
