Loading Port:Tianjin
Payment Terms:TT OR LC
Min Order Qty:100 kg
Supply Capability:10000 kg/month
1. Material: Ductile Iron
2. Size range: DN50-400mm
3. Gaskets :EPDM/NBR
4. Coating: epoxy in blue,black or red.
5. Dimensions and testing in accordance with BS EN12842
6. Packing: standard Wooden pallets or cases.

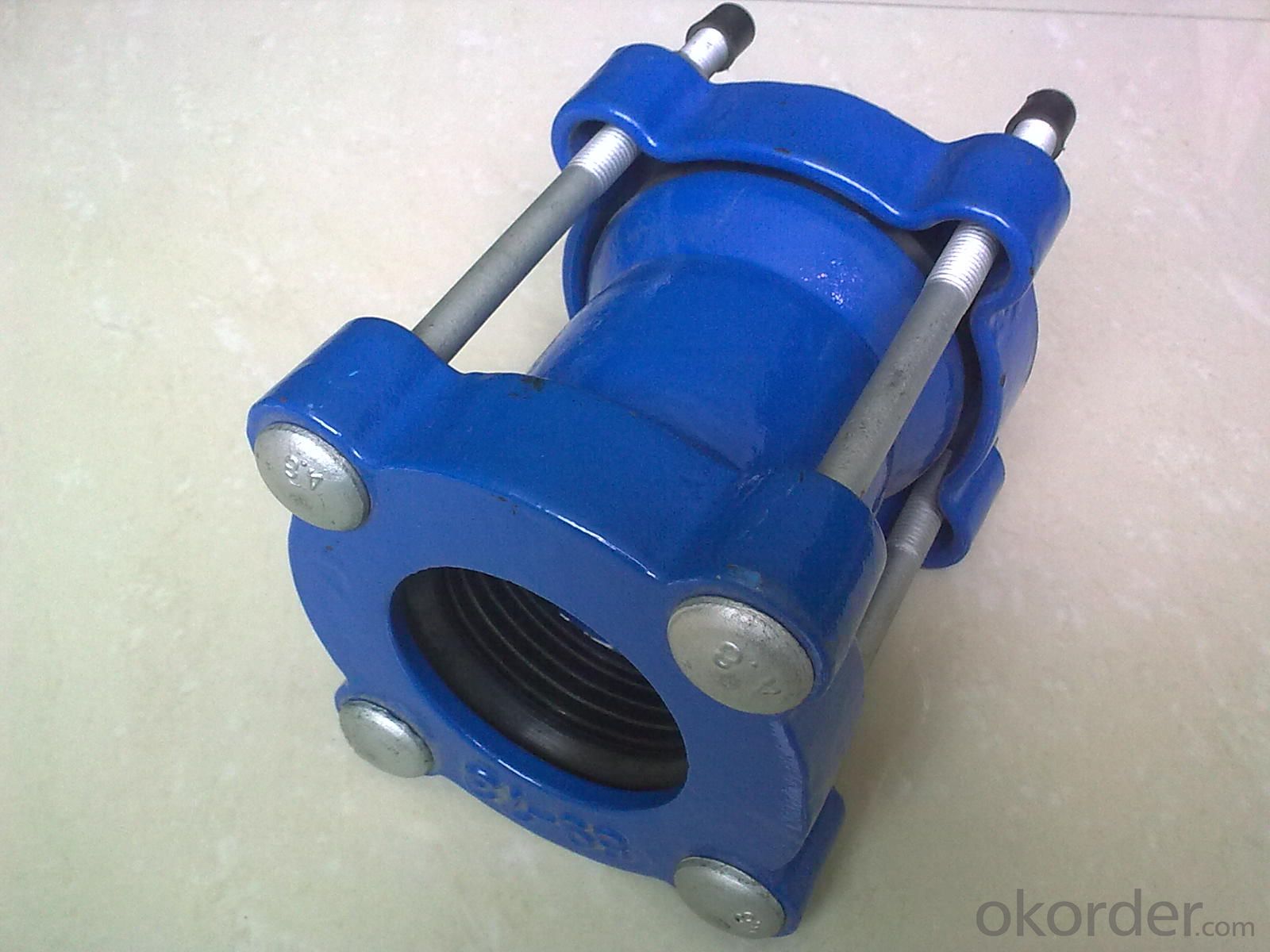

Specifications for ductile iron pipe fittings for PVC pipes
| Body Material | ductile iron GGG500-7 in accordance with ISO1083 |
| Gasket | rubber EPDM/NBR/SBR in accordance with 681.1 |
| Working pressure | 16 bar or 250 PSI |
| Fluid temperature | 0°c-50°c, excluding frost |
| Outside coating | Fusion bonded epoxy coating, 250 micron in thickness |
| Inside Lining | Fusiong bonded epoxy coating |
