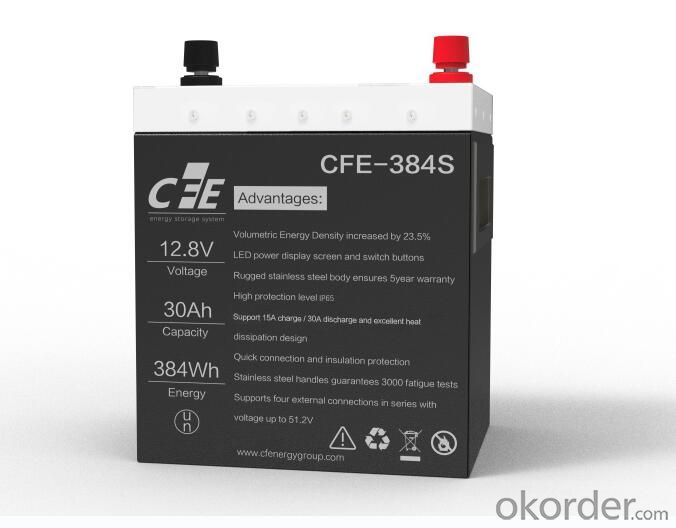

Residential ESS CFE-384S 12.8V 30Ah 384Wh
l Volumetric Energy Density increased by 23.5%
l LED power display screen and switch buttons
l Rugged stainless steel body ensures 5 years warranty
l High protection level IP65
l Support 1C charge / discharge and excellent heat dissipation design
l Quick connection and insulation protection
l Stainless steel handles guarantees 3000 fatigue tests
l Supports four external connections in series with voltage up to 51.2V
Product Spec | |
Name | CFE-384S |
Model | 12.8V30Ah |
Nominal Voltage | 12.8V |
Nominal Capacity @1C | 30Ah |
Charge Voltage | 14.8V |
Charge Current Max Continuous | 15A |
Discharge Current Max Continuous | 30A |
Discharge Voltage Minimum | 10.8V |
Pulse Current 5 Sec | 45A |
Weight | 5.0kg±0.5kg |
Dimensions L*W*H（mm） | 160*140*210 |
