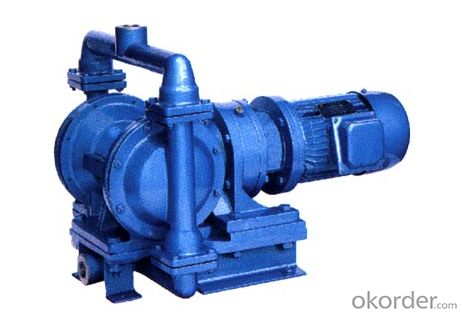

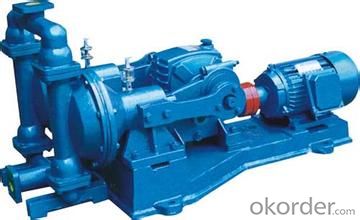

DBY series electric operated diaphragm (EOD) pump

Product Description:

DBY series electric operated diaphragm (EOD) pump

Product Description of DBY series electric operated diaphragm (EOD) pump

DBY electric diaphragm pump is a new type of pumps, in recent years, because the diaphragm material made breakthrough progress, the more and more industrialized countries have adopted this type of pump, replacing part of centrifugal pump, screw pump, used in petrochemical industry, ceramic, metallurgy and other industries, DBY electric diaphragm pump suitable for low pressure, namely outlet pressure or less 3 KGF/cm2 occasions. DBY electric diaphragm pump is the factory production of a new type of conveying machinery, the motor through the reducer reduction drive, for all kinds of corrosive liquid, with grain fluid, high viscosity, volatile, flammable and poisonous liquid, all can with suction light suction do.

DBY electric diaphragm pump note: DBY electric diaphragm pump work first open the outlet valve, in the work are prohibited during the outlet valve closed.

Diaphragm materials: neoprene, fluoride rubber, Buna-N rubber and Teflon.
Casing materials: Cast Iron, SS304, SS316, Aluminum, PP, PP lining, PVDF, NBR lining

Usage of DBY series electric operated diaphragm (EOD) pump

All kinds of highly toxic, flammable, volatile liquid.

All kinds of strong acid, strong alkali, strong corrosive liquid.

Can transport 150 ℃ high temperature medium.

As a front-end send pressure device of all kinds of filter press.

Hot water recycling and circulation.

Oil tank truck, oil depot, oil loading and unloading.

Pump suction pickles, jam, mashed potatoes, chocolate, etc.

Pump suction paints, rubber, paint adhesive.

All kinds of porcelain glaze slurry, cement grout, mortar, and mud.

All kinds of rubber paste emulsion, organic solvent, and filler.

Pump for the tanker barge sewage and sit in a clearance from storehouse.

Hops and baking powder slurry, syrup, molasses.

Pump suction sewage in mines, tunnels, tunnels, sewers and sediment.

To transfer all kinds of special medium

Main features of DBY series electric operated diaphragm (EOD) pump

1, DBY electric diaphragm pump does not need to irrigation water diversion, automatic capacity of 7 meters above.
2, through the performance is good, diameter in 10 mm the following particle, mud, etc. Can easily through the.
3, due to the diaphragm will be transported medium and transmission machinery a separate, so medium never to external leakage. And the pump itself without shaft seal, the service life is prolonged greatly. According to the different medium, the diaphragm is divided into chloroprene rubber, fluorine rubber, polybutadience rubber, etc, can satisfy the requirements of different users.
4, pump body medium flows through part, can according to user requirements, divided into cast iron, stainless steel, rubber lining, the motor can be divided into ordinary type and explosion-proof type two kinds.

FAQ

Q: Are CNBM pumps available in DIY stores?

A: Yes, currently, we’re available for DIY stores all over the world.

Q: Where do I have to send pumps for service?

A: You must send them to the CNBM PUMP Service Point or, after contacting Customer Care, to the CNBM PUMP service center in China.

Q: Are your pumps acid-proofed?

A: To choose the right pumps for chemical applications, we do need further details on hydraulic operations as well as on the type, concentration and temperature of the liquid.

Q: Can your pumps mount Eff.1 motors

A: Currently, only on request though this will shortly be a CNBM standard.

Q: Are your pumps protected against dry running?

A: No, unprotected centrifugal pumps are not generally designed for dry running. It is important to give us or your dealer as much information as possible about the system in which the pump is used. Inlet pressure, the type of liquid to be pumped, together with relative density, viscosity and temperature, for example, are required in order to allow CNBM to recommend the right pump with the right gaskets for a long operating lifetime.
