Loading Port:China main port
Payment Terms:TT or LC
Min Order Qty:1 roll
Supply Capability:100 roll/month
The damping felt utilizes stable IIR polymer as the base material, augmented with heavy mineral additives to enhance damping effects.
IIR is acknowledged as the optimal eco-friendly damping and soundproofing material.
The remarkable damping properties of IIR significantly alter the resonance effects of the base material, delivering superior broadband damping and sound insulation performance.

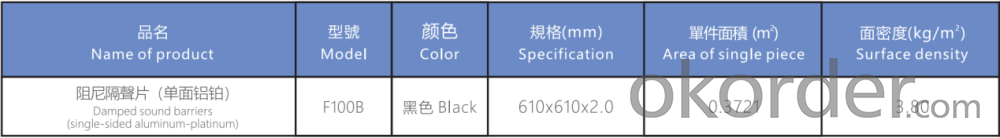

Specification：
Model | F100B Damped Sound Insulation Felt |
Surface density | 1.90kg |
Weight | 1.50kg/pc |
Specification | 610mm x 610mm x 2.2mm |
Area of single piece | 0.3721m² |
Quantity per packing | 20pcs/box， 31kg/box |

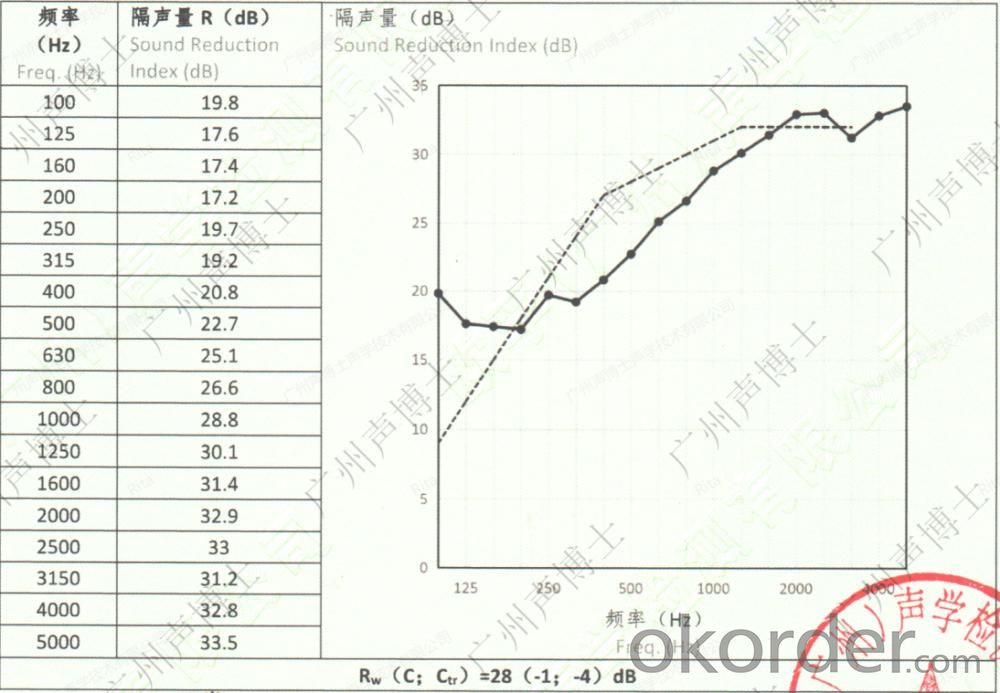

Sound insulation parameters：
Property:

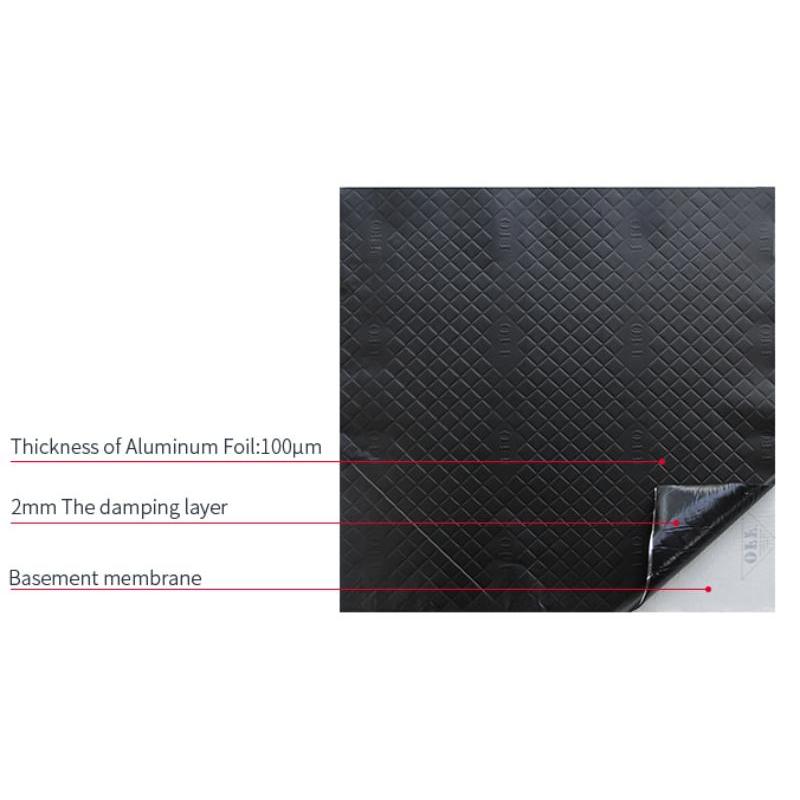

1.2mm damping layer with 100μm soft aluminum foil surface composite, density of 4.2kg/m².
2.Non-uniform composite material complies with the mass law of sound insulation. The integrated damping layer alters the original material’s vibration frequency and dissipates sound energy, increasing the original material’s sound insulation by >270%.
3.Ultra-flexible, adaptable to any solid substrate regardless of shape, structure, or spatial constraints.
4.Single-sided high-strength self-adhesive backing for seamless integration with substrate surfaces.

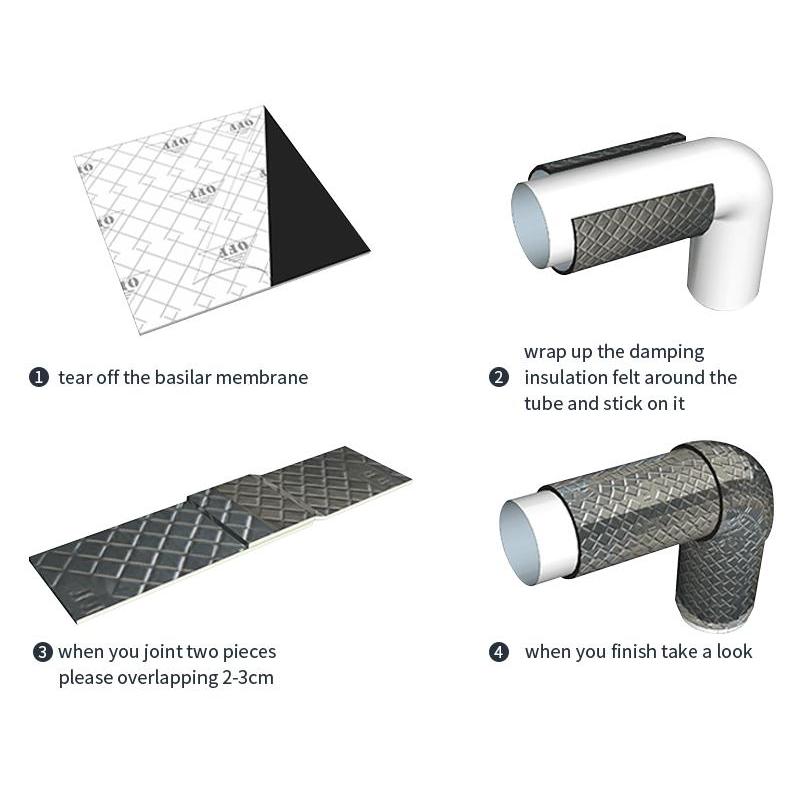

5.Easy installation: cuttable with utility knives or scissors; fixed to building substrates with adhesive and locking nails for panels, or permanently secured to machinery sheet metal with clip nails.
6.Excellent fire resistance, temperature tolerance, elasticity, and tensile strength.
7.Zero manufacturing emissions, no waste pollution, and recyclable for eco-friendly reuse.
