cut to length lines mill roll forming machine

Product Description:

Structure of cut to length lines Description

We offer various standard models of cut to length lines. These lines can be cut from ranges of 0.5mm up to 3mm in length with different coil widths weights. Each of these lines can be custom tailored to meet specific production needs. Ferrous and non ferrous metals such as hot and cold rolled carbon steel, stainless steel, aluminum, brass, copper, galvanized metals, and different kinds of alloys can all be cut by these lines.

Main Features of cut to length lines Description

This equipment is mainly used for processing cold-rolled carbon,stainless steel coil, and non-ferrous metal coil, configuration,six-leveler to theentire pacification of long shear plate surface of the metal aluminum and other high coil.

According to customer requirements, the fine two leveler can be used early; fixed length sent to shear can be ordinary mechanical appliances collaborative action, digital variable frequency or AC servo technology; shears can be equipped with the ordinary machienry, hydraulic press type electromagnetic clutches,pneumatic  clutch transmits power high speed gate shear, mobile tracking the chase cut and rotary flying shear machine. Supporting related molding machine can be used for a wider range extension.

Specification

External/fix dimensions: 11400mm ×1600mm ×1800mm
Main engine power:11KW; Hydraulic system power:15KW; Level engine power:3KW
Equipment gross weight: about14000kg
Forming Speed /Shape speed: ≤12m/min
Width of section (Max):300 mm
Suppresses the appropriate board thickness: (Q235) 1.6~3.0mm
Hydraulic pressure: 18~20Mpa
Max carry capacity of Coil: 5 Tons
PLC controlled, auto production, Touch screen applied convenient operation

Specifications

Rollingbottom line (mm): 900mm

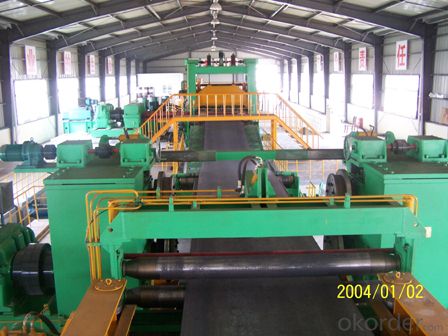

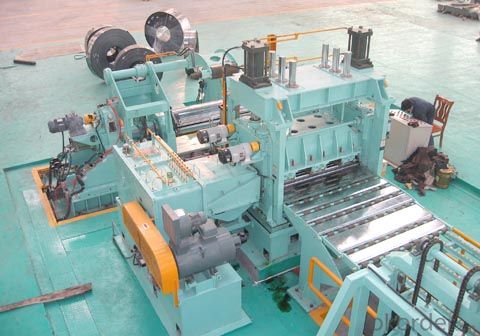

Images

FAQ

How do you guarantee the quality?

We can provided CE certificate if we are required.

What's the delivery time?

around 120days after receive your 30% payment.

Where can we see your machines?

You are welcome to visit our factory and test it by yourself.
