Loading Port:Tianjin
Payment Terms:TT OR LC
Min Order Qty:1000 reel
Supply Capability:10000 reel/month

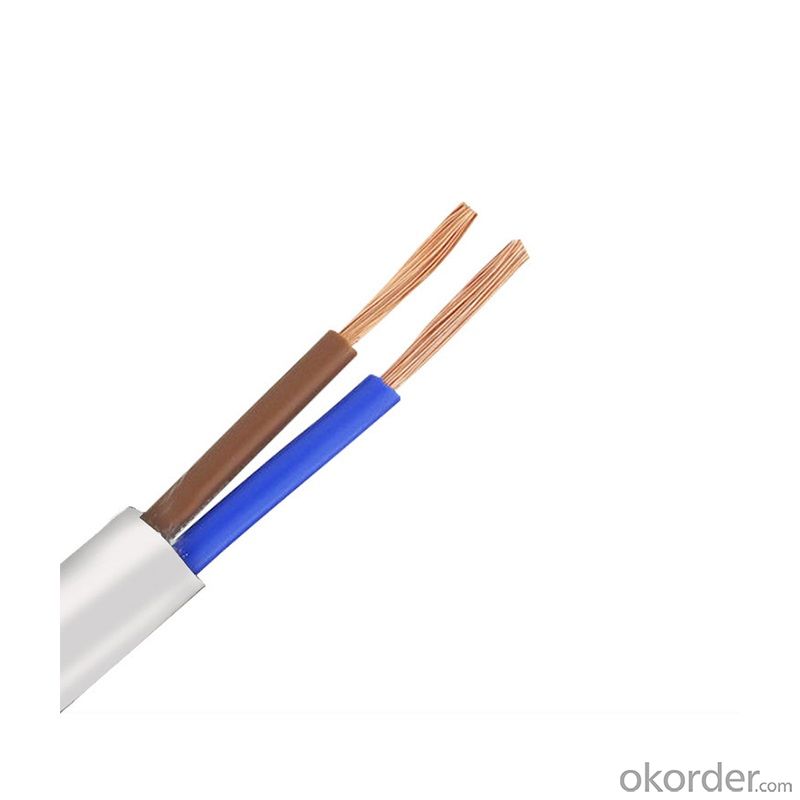

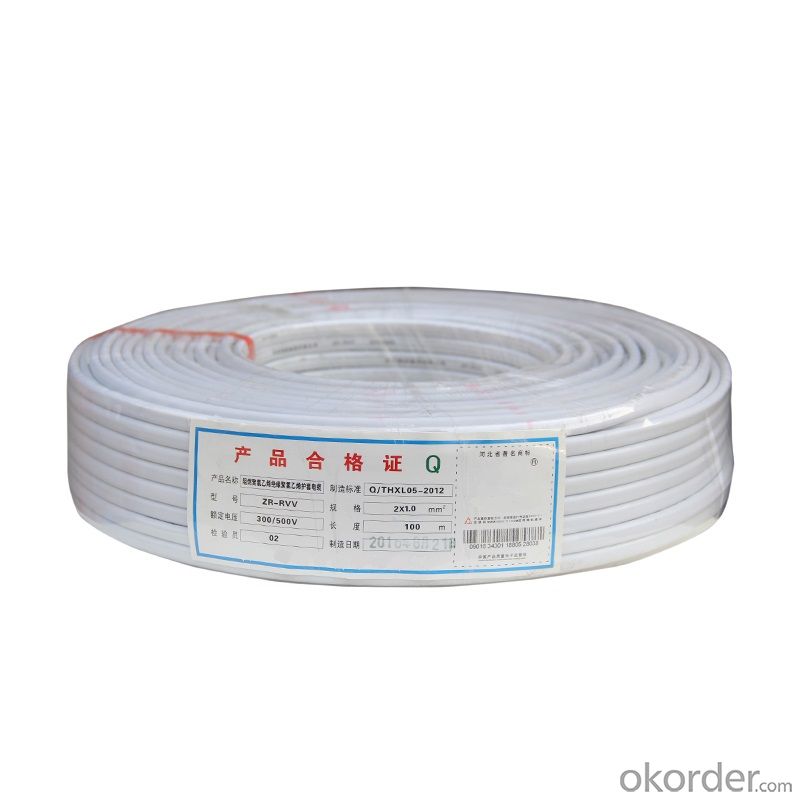

RVV IEC60227
Product information
Conductor
Plain annealedcopper, Class 5 stranded circular or compacted
Insulation
Polyvinyl chloride(PVC) Compound type D
Outer sheath:
Polyvinyl chloride(PVC) Compound type ST5
Temperature rating
Maximum 70ºC
Rated voltage
450/750 V
Application
Suitable for power installations, household appliances,instrumentation and communication devices
a. Use as home appliance wiring cable, building wire
b. Use as electrical and electronic equipment internal connecting wire
c. Use as lighting wire
d. House wiring cable
| Type | No. of Cores | Corss Area ( mm2) | NO.of wire & diameter | Insulation thickness mm | Outer diameter mm | Weight kg/km |
| BV Cu/PVC -Solid | 1 | 1 | 1/1.13 | 0.7 | 15.73 | |
| 1 | 1.5 | 1/1.38 | 0.7 | 22.12 | ||
| 1 | 2.5 | 1/1.78 | 0.8 | 32.75 | ||
| 1 | 4 | 1/2.25 | 0.8 | 48.73 | ||
| 1 | 6 | 1/2.76 | 0.8 | 69.15 | ||
| BVR Cu/PVC-Strand | 1 | 1 | 7/0.43 | 0.7 | 16.9 | |
| 1 | 1.5 | 7/0.52 | 0.7 | 22.71 | ||
| 1 | 2.5 | 19/0.41 | 0.8 | 34.21 | ||
| 1 | 4 | 19/0.52 | 0.8 | 49 | ||
| 1 | 6 | 19/0.63 | 0.8 | 70.9 | ||
| RVV Cu/PVC/PVC -Flexible | 2 | 1 | 32/0.2 | 0.7 | 52.3 | |
| 2 | 1.5 | 48/0.2 | 0.7 | 70.45 | ||
| 2 | 2.5 | 78/0.2 | 0.8 | 103.75 | ||
| 2 | 4 | 127/0.2 | 0.8 | 147.2 | ||
| 3 | 1 | 32/0.2 | 0.7 | 96.45 | ||
| 3 | 1.5 | 48/0.2 | 0.7 | 133.73 | ||
| 3 | 2.5 | 78/0.2 | 0.8 | 180.63 | ||
| RVS Cu/PVC/ -Flexible | 2 | 0.75 | 37/0.16 | 0.7 | 29.73 | |
| 2 | 1 | 32/0.2 | 0.7 | 36.8 | ||
| 2 | 1.5 | 48/0.2 | 0.7 | 47.45 | ||
| 2 | 2.5 | 78/0.2 | 0.8 | 70.25 |
