What is Cryogenic Insulation Paper?
The cryogenic fiberglass insulation paper is fabricated with selected superfine fiberglass which is generally laminated with aluminum foil.
It shares the advantage of low thermal conductivity but high thermal contact resistance, outstanding uniformity, fast outgassing rate but low gas emission under vacuum conditions, light gram-weight and wide applicable working temperature range (-269℃~500℃).
Application of Cryogenic Insulation Paper
Cryogenic liquid storage & mobile containers and pipeline systems for liquid oxygen, nitrogen，hydrogen，helium，argon，LNG and etc.Cryogenic liquid storage & mobile containers and pipeline systems for liquid oxygen, nitrogen, hydrogen, helium, argon, LNG and etc.
Standard size of Cryogenic Insulation Paper
90mm(W) * 1500m(L)
90mm(W) * 167m(L)
Customized size is accepted based on the quantity
Advantages of Cryogenic Insulation Paper
- Low thermal conductivity
- High thermal contact resistance
- Fast outgassing rate but low gas emission under vacuum conditions
- Light gram-weight
- Wide applicable working temperature range (-269℃~500℃)
Data Sheet of Cryogenic Insulation Paper
Item | Unit | Aluminum Foil | Fiberglass Paper |
Thickness | mm | 0.0065 | ≤0.06 |
Bulk Density | g/m2 | 16±2 | 12±2 |
Tensile Strength | Kn/m | / | ≥0.03 |
Harmful Elements | % | Pb＜0.01cd＜0.01As＜0.01 | No |
Width | mm | 40-2400 | 40-2400 |
Thermal Conductivity | w/mk | ＜0.00015 | |

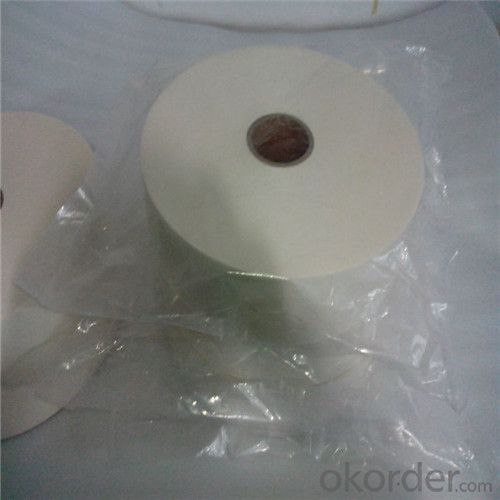

Photo of Cryogenic Insulation Paper
