Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 unit
Supply Capability:15 unit/month

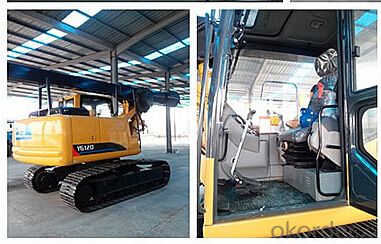

Quick Details Brand Name: CBL Model Number: YG120 After-sales Service Provided: No overseas service provided Machine weight: 13600kg Max drilling depth: 16m Drilling diameter: 500-1500 mm Power head torque: 17000-22000 N.M Drilling head rate: 30-50 r/min Max lifting force: 120 KN Working mode: pressure drilling Engine: YTR4105; 65kw Slewing angle: 360 degree Hydraulic system pressure: 28 Mpa Technical data for crawler rotary drilling rig Model / YG120 Machine weight kg 13600 Engine Model YTR4105 Rated power kw 65 Rated speed r/min 2200 Appearance Parameters Transportation size (L*W*H) mm 7850x2400x4000 Track shoe width mm 500 Performance Parameters Max drilling depth M 16 Drilling diameter mm 500~1500 Working mode Pressure drilling Power head torque N.M 17000~22000 Drilling head rate R/min 30~50 Max lifting force KN 120 Steel rope diameter mm 14 Slewing angle ° 360 Rotation speed R/min 9 Travel speed Km/h 2~5 Hydraulic system pressure Mpa 28
