Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:100 m
Supply Capability:5000 m/month

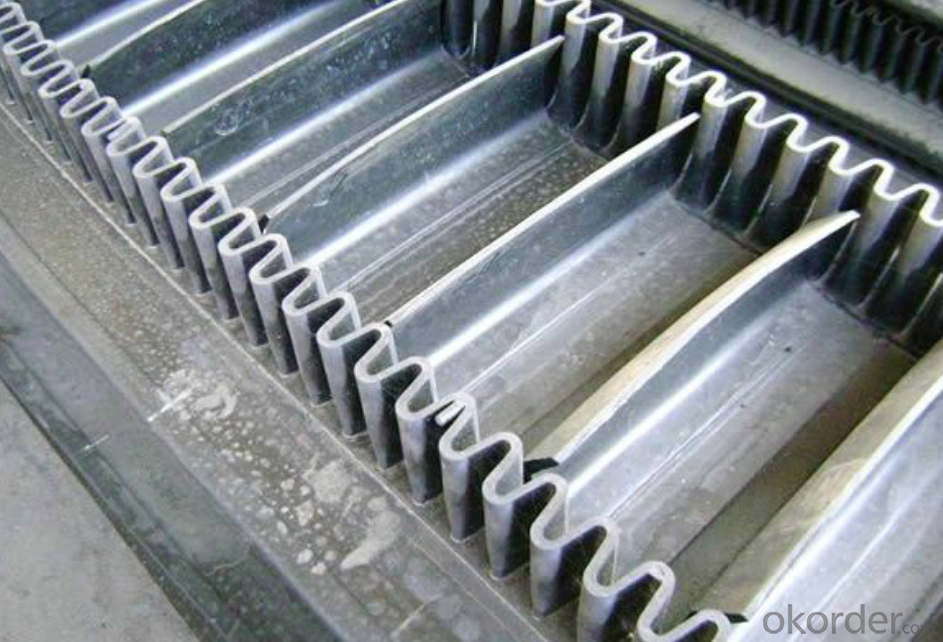

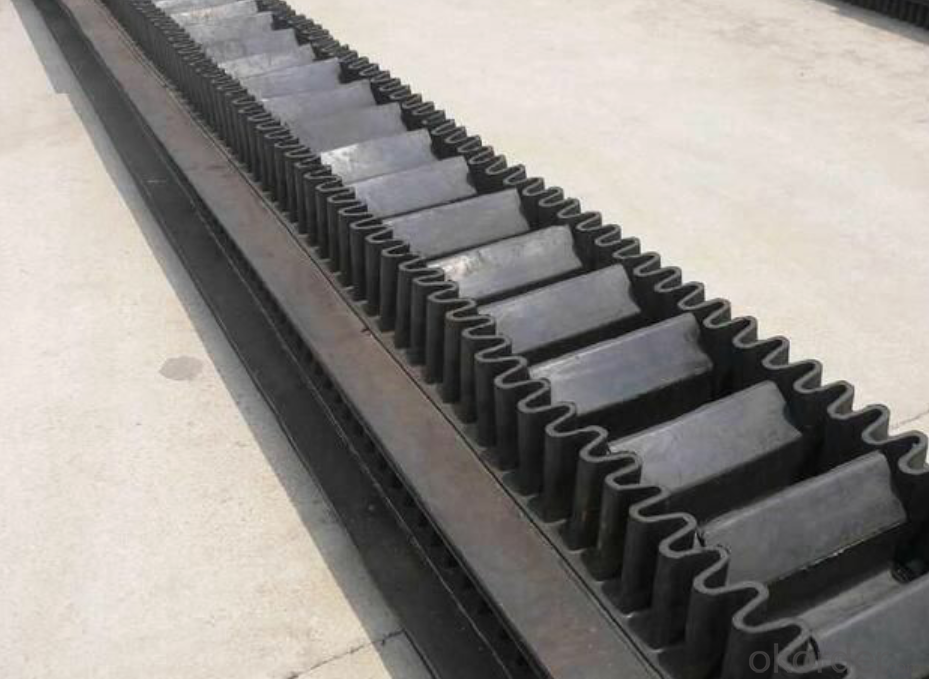

| Application Corrugated sidewall conveyor belt always work together with the sidewall transferring system, normally the angle is more than 30°, It also could work together with the general conveying machine for the horizontal and short distance transportation. (Generally, No cleated)Sidewall conveyor belt using baseband that the though degree is more that 0.03,sidewall and cleated(which is not necessary in the horizontal transportation)was made after twice sulfuration. Advantage 1.EP/NN /CC/ Steel cord as framework material; 2.Vulcanization molding; 3.Large slope transportation, widely used in bulk material; 4.Saves space, since conveyance at inclines of up to 90° is possible. |
 |  |
| The parameter relationship of the base belt width and flange height is as the following table(mm): |
| Bandwidth B of base | Block high H | Horizontal baffle high H1 | The wave bottom wide B1 | Effective bandwidth B2 | Empty wide B3 | Horizontal baffle form |
| 300 | 40 | 35 | 25 | 180 | 35 | TC |
| 60 | 55 | 50 | 120 | 40 | ||
| 80 | 75 | |||||
| 400 | 60 | 55 | 50 | 180 | 60 | TC |
| 80 | 75 | |||||
| 100 | 90 | |||||
| 500 | 80 | 75 | 50 | 250 | 75 | TC |
| 100 | 90 | |||||
| 120 | 110 | |||||
| 650 | 100 | 90 | 50 | 350 | 100 | TC |
| 120 | 110 | |||||
| 160 | 140 | 75 | 300 | |||
| 800 | 120 | 110 | 50 | 460 | 120 | TC |
| 160 | 140 | 75 | 410 | |||
| 200 | 180 | |||||
| 1000 | 160 | 140 | 75 | 550 | 150 | TC |
| 200 | 180 | |||||
| 240 | 220 | |||||
| 1200 | 160 | 140 | 75 | 690 | 180 | TC |
| 200 | 180 | |||||
| 240 | 220 | |||||
| 300 | 260 | 100 | 640 | |||
| 1400 | 200 | 180 | 75 | 830 | 210 | TC |
| 240 | 220 | |||||
| 300 | 260 | 100 | 780 | |||
| 400 | 360 |
